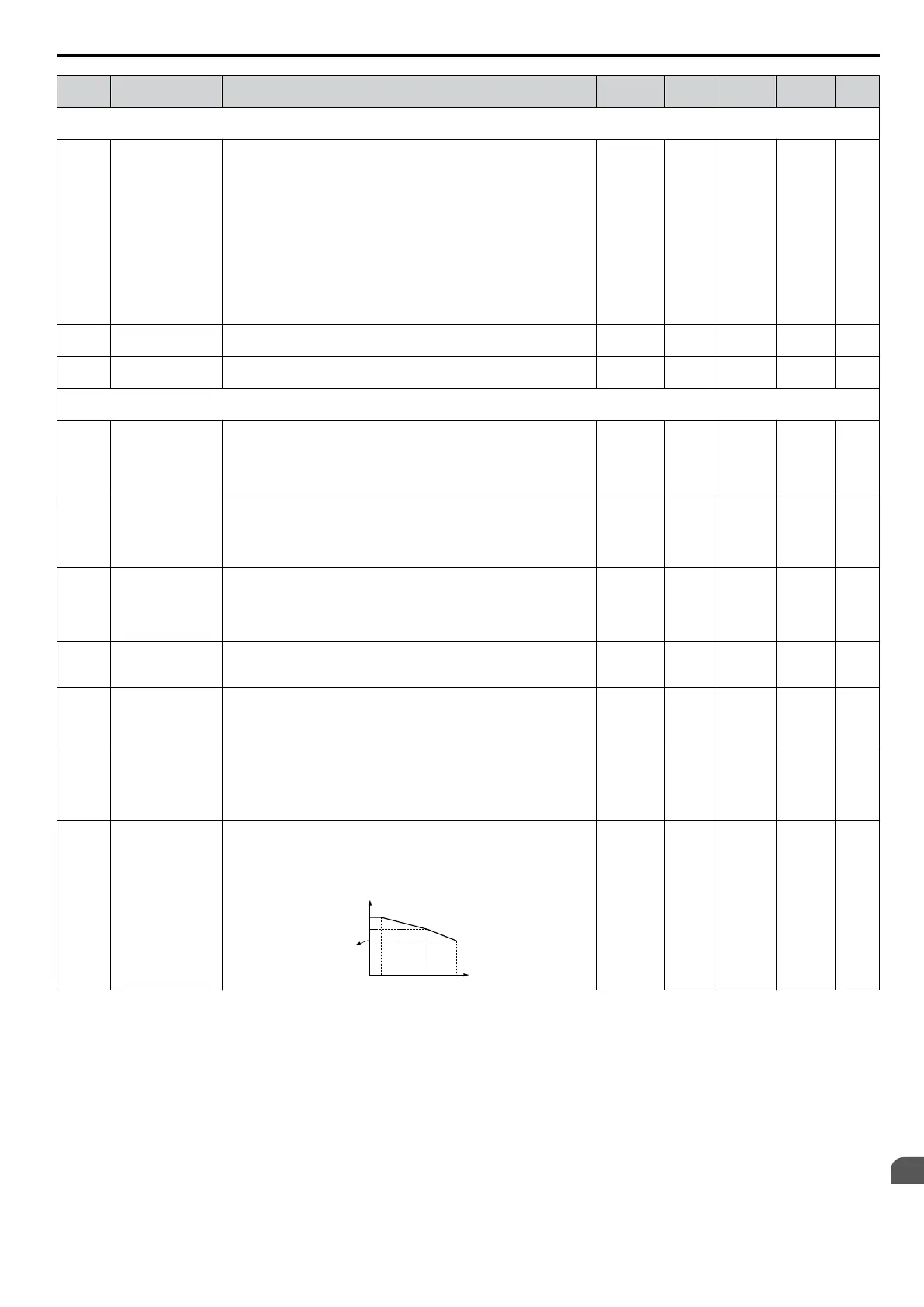

Page #181 background imageLoading...
Page #181 background image
No. Name Description Range Def. Mode
Addr.
Hex
Pg.
L6: Overtorque Detection
Use L6 parameters to configure overtorque detection.
L6-01
Torque Detection
Selection 1
Selects the overtorque operation. Overtorque is determined by the
settings in parameters L6-02 and L6-03. The multi-function output
settings (H2- 01= B and 17) are also active if programmed.
0: Disabled
1: oL3 at Speed Agree - Alarm (overtorque detection only active
during Speed Agree and operation continues after detection).
2: oL3 at RUN - Alarm (overtorque detection is always active and
operation continues after detection).
3: oL3 at Speed Agree - Fault (overtorque detection only active
during Speed Agree and drive output will shut down on an oL3
fault).
4: oL3 at RUN - Fault (overtorque detection is always active and
drive output will shut down on an oL3 fault).
0 to 4 0 O 4A1 108
L6-02
Torque Detection
Level 1
Sets the overtorque detection level. 100% is equal to the motor rated
current.
0 to 300 150% O 4A2 108
L6-03
Torque Detection
Time 1
Sets the length of time an overtorque condition must exist before
Torque Detection is triggered.
0.0 to 10.0 0.1 s O 4A3 108
L8: Hardware Protection
Use L8 parameters to configure hardware protection functions.
L8-01
Internal Dynamic
Braking Resistor
Protection
Selection (ERF
type)
Selects the Braking resistor when using a 3% duty cycle heatsink
mounted braking resistor. This parameter does not enable or disable
the braking transistor of the drive.
0: Resistor overheat protection disabled
1: Resistor overheat protection enabled
0, 1 0 O 4AD 109
L8-05
Input Phase Loss
Protection
Selection
Selects the detection of input current phase loss, power supply
voltage imbalance, or main circuit electrolytic capacitor
deterioration.
0: Disabled
1: Enabled
0, 1 1 O 4B1 109
L8-10
Heatsink Cooling
Fan Operation
Selection
Controls the heatsink cooling fan operation.
0: Fan On-Run Mode - Fan will operate only when the drive is
running and for 60 seconds after stop.
1: Fan always on - Cooling fan operates whenever the drive is
powered up.
0, 1 0 O 4B6 109
L8-12
Ambient
Temperature
Setting
Used to input the ambient temperature. This value adjusts the drive
oL2 detection level.
-10 to 50 30 °C O 4B8 109
L8-18
Soft CLA
Selection
Selects the software current limit function. Typically no adjustment
is required.
0: Disabled
1: Enabled
0, 1 1 O 4BE 109
L8-35
Installation
Method Selection
Selects the installation type:
0: IP20/Open-Chassis Drive
1: Side-by-Side Mounting
2: NEMA 1 Type Drive
3: Finless Drive or External Heatsink Installation
0 to 3 0 O 4ECH 110
L8-38
Carrier Frequency
Reduction
Provides protection to the IGBTs by reducing the carrier frequency
at low speeds.
0: Disabled
1: Enabled below 6 Hz
2: Enabled for the whole speed range
Current
C6-02
Carrier Frequency
ND
HD
2
0
200 V Single Phase
80% of HD
10 (8) 15
400 V: 60% of HD
0 to 2
0
<12>
O 4EF 110
<7> Default setting value is 120% when C6-01 is set to 1 (ND) and 150% when C6-01 is set to 0 (HD).
<12>
Default setting value is dependent on parameter o2-04, Drive Model Selection.
<63> When enabled, the drive stops accelerating when it exceeds the value of L3-02, Stall Prevention Level. The drive decelerates after 100 ms and
begins accelerating again after restoring the current level.
B.2 Parameter Table
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
179
B
Parameter List
