3 Operation
3 - 28
Grid Connect Photovoltaic Inverter KP100L-OD- USER’S MANUAL
3-7 Confirm method of LCD display
This function is used as a function to judge whether it is a breakdown of LCD, if LCD is not displayed.

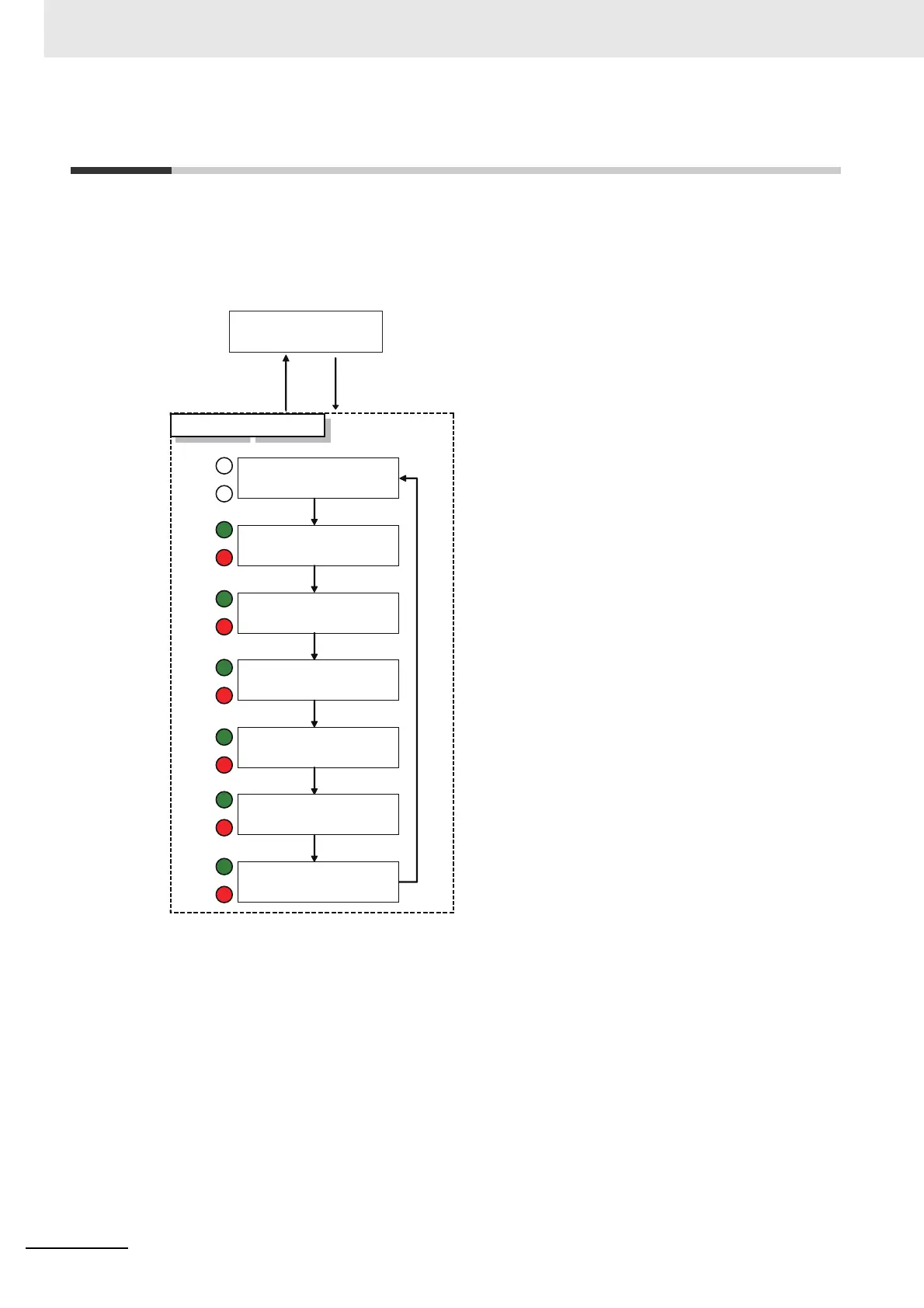

The display changes into the checking display of the LCD when you push the ENT key for 5 second while shown
normal display or error display. The following figure is displayed for checking the breakdown of the display part.
The LED (green, red) lights except Pattern A.
■■■■■■■■■
MODE
After one second pass
Pattern A
Pattern B
Pattern C
Pattern D
Pattern E
Pattern F
Pattern G
Push the ENT key for 5 second
After one second pass
After one second pass
After one second pass
After one second pass
After one second pass
After one second pass
LCD Check Dis
p
la
y
■■■ V1.23■■■
■■■■■■■■■
■■■■■■■■■
■■■■■■■■■
■■■■■■■■■
■■■
V1.23■■■
■■■
KP100L
■■■
■■■
KP100L
■■■
or
No operation for 150 seconds
Pac 3.69kW
1.23/1.23/1.23kW
■■■■■■■■■
