5-6 Initialization/Setting Screen
5-40
1
2
3
4

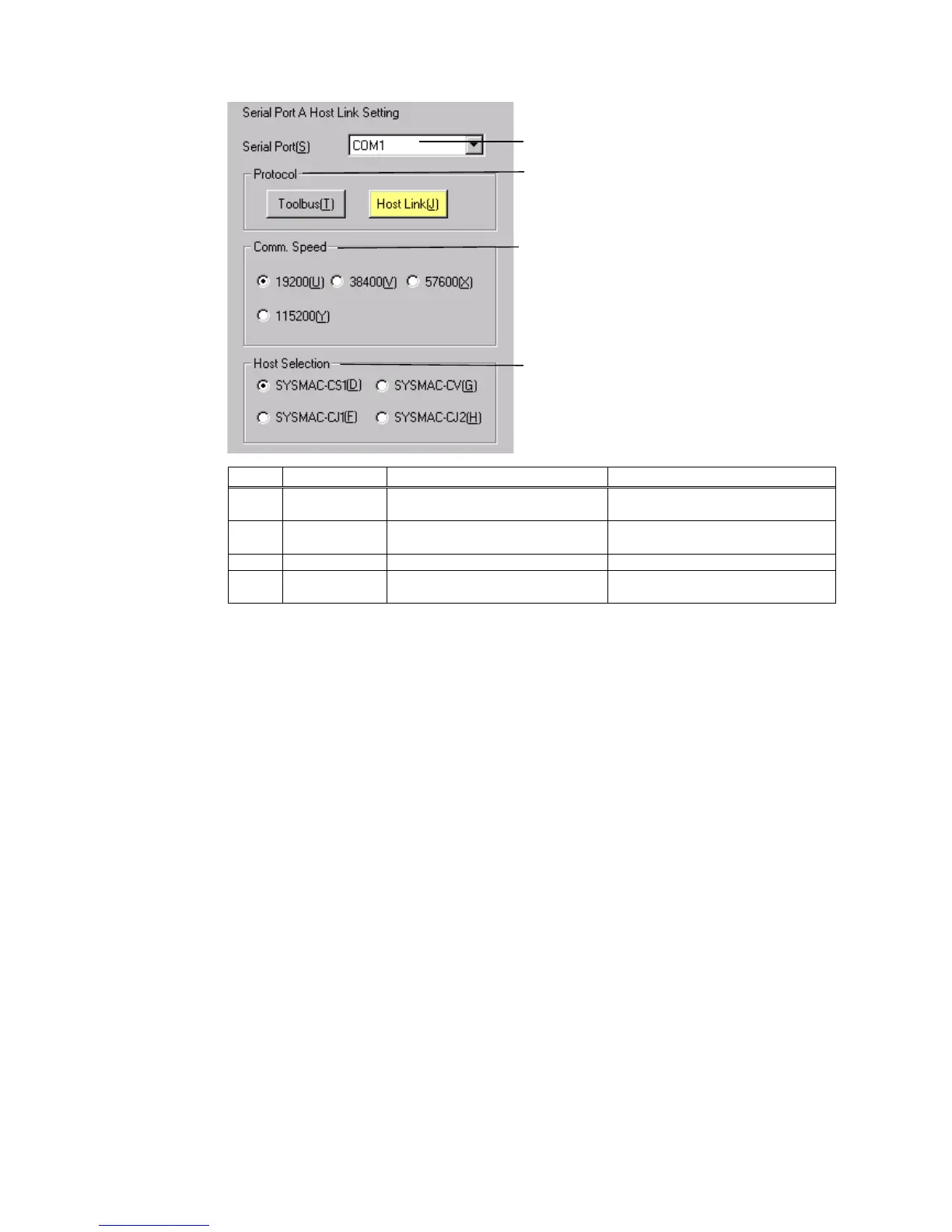

No Item Function Setting Range
1 Serial Port Selects the serial port to be used to
connect to the host.
Select any port that can be used
with the NS-Runtime environment.
2 Protocol Selects the method for connecting
to the host.
Toolbus, Host Link
3 Comm. Speed Selects the baud rate. 19200,38400,57600 or 115200
4 Host Selection Selects the host type. SYSMAC-CV, SYSMAC-CS1,
SYSMAC-CJ1, or SYSMAC-CJ2
3. After setting, click the Write Button to save the setting. (For details on the write button,
refer to Writing on page 5-29.)
4. The settings are enabled after the NS-Runtime is restarted.
Ethernet
This function is used to display and set whether to use the Ethernet and the detailed
conditions.
IP address, subnet mask, and default gateway cannot be set from the system menu.
To change the settings, change them from the Control Panel – Network Connections of
the Windows.
Make the Ethernet settings by using operations from the Comm. Tab Page as follows.
To Next Page
