6-2 Transferring Data Using a Memory Card
6-7
12. When the transfer starts, project data that has been stored in the NS-Runtime will be
deleted.

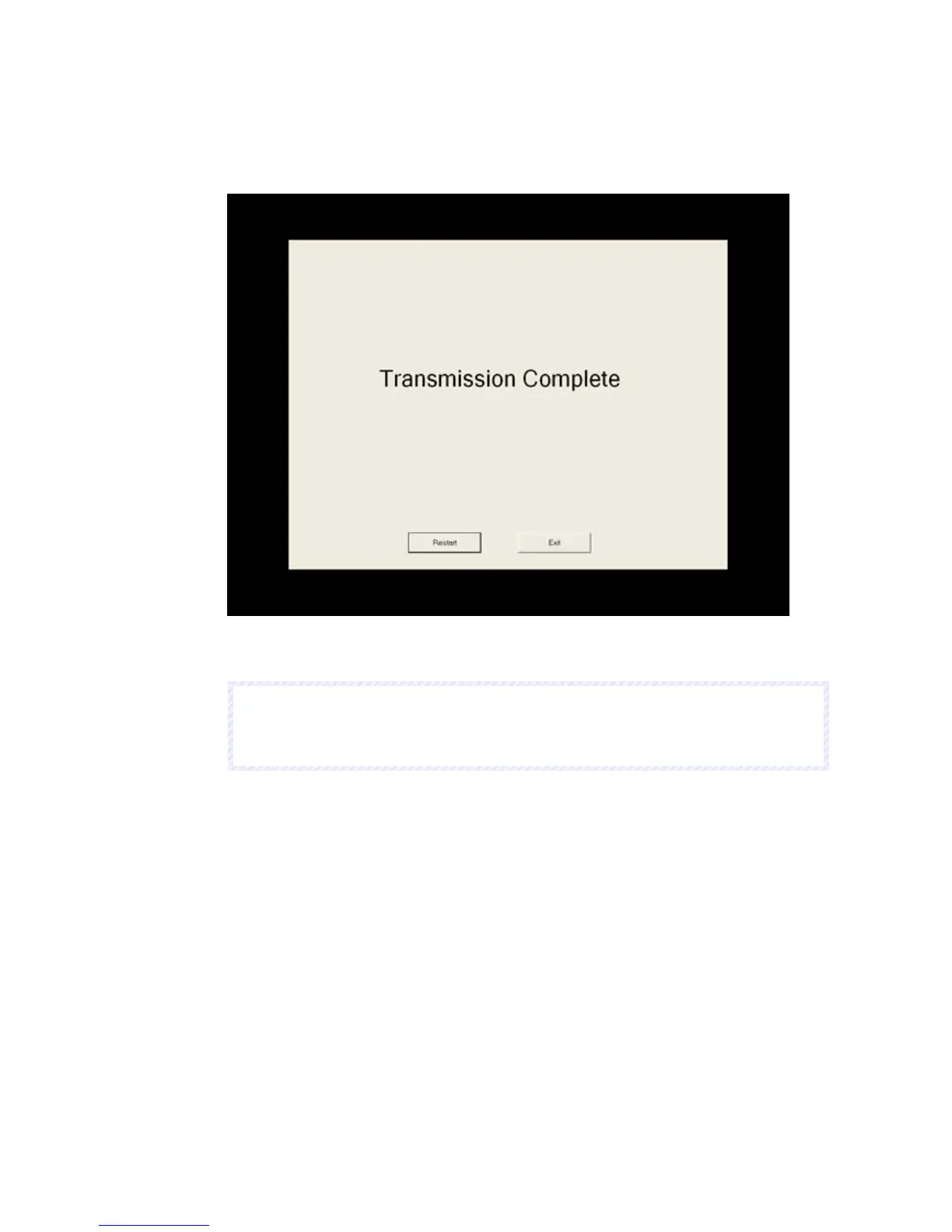

While data is being transferred, screen indicating that download in progress will be
displayed. On completion of the transfer, the Transmission Complete screen will
displayed.
13. Click the Restart button to close the transfer screen and to end the NS-Runtime.
Click the Exit button to close the transfer screen.
N
N
N
o
o
o
t
t
t
e
e
e
The methods for using CX-Designer’s Menus and screen data transfer program are the same
as those of the NS Series. For details, refer to the Transferring Data to the PT in the CX-
Designer Online Help.
6-2-2 Uploading the Project Data
Use the following procedures to upload the project data.
1. Insert a memory card in the NS-Runtime environment.
2. If the NS-Runtime has already started up, start up the transfer screen from the Screen
Transfer in the System Menu. (A confirmation message will be displayed to ask whether
or not to exit the NS-Runtime. Click the OK button and end the NS-Runtime.)
If the NS-Runtime is not started up, start up the transfer screen from the Windows.
(Windows Start – All Programs – OMRON – NS-Runtime – DriveTrans)
To Next Page
