4-2 Document Display
4-7
4-2 Document Display
Document Display is a functional object used for displaying specified document files (PDF
file).
Document display object enables users to display documents including operation manuals
and production instruction on the NS-Runtime.
In order to display documents, they need to be registered in document tables beforehand.
Document files can be displayed at all-time or displayed when an alarm/event occurs.
Documents to be displayed can be switched.

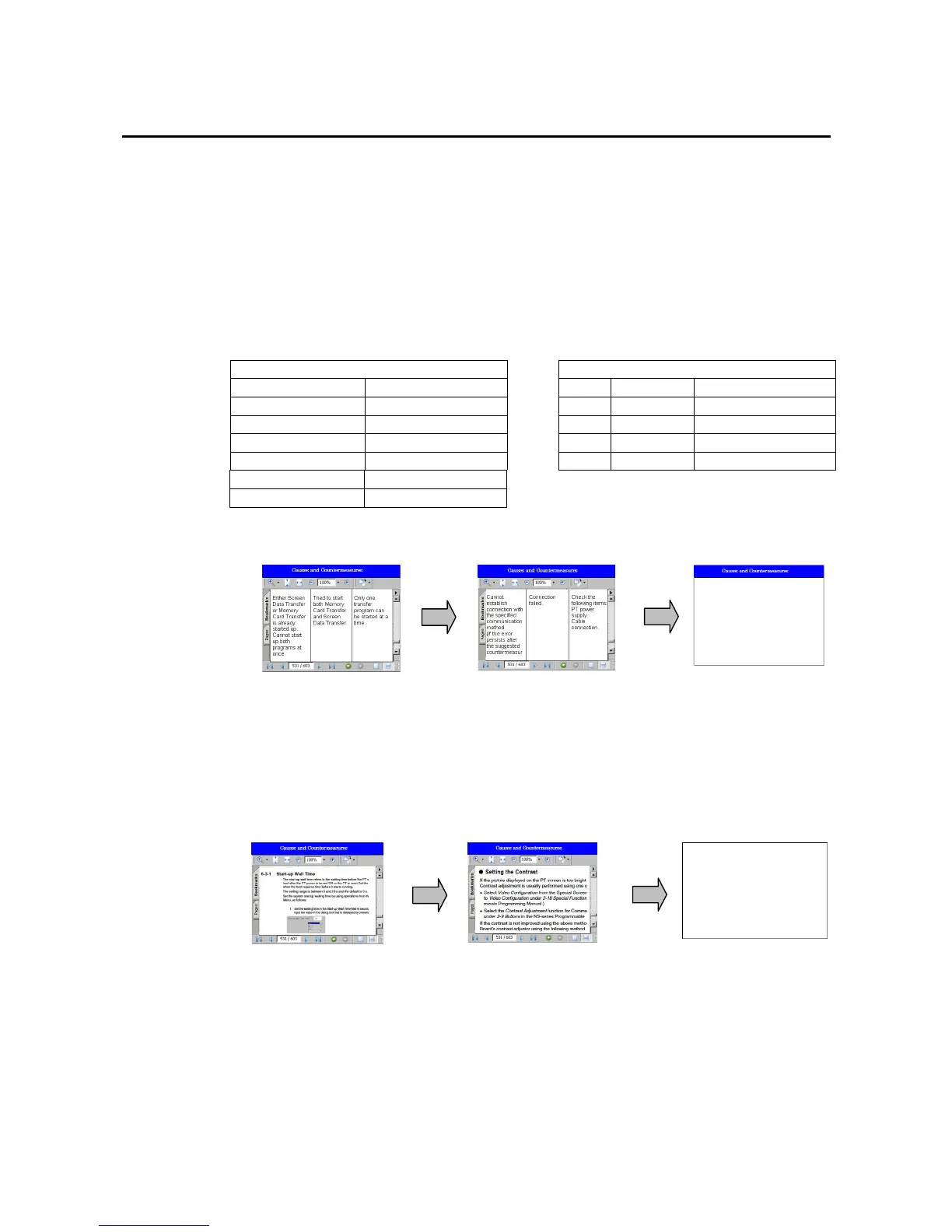

Displaying when an alarm/event occurs.
Document Table Alarm/Event Setting
Document No. Document File No. Address Document No.
1 A.PDF 1 $B100 1
2 B.PDF 2 $B101 3
3 C.PDF 3 $B102 10
4 D.PDF --- --- ---
5 E.PDF
--- ---
$B100 ON (Alarm 1 occurs) $B101 ON (Alarm 2 occurs) $B100, $B101 OFF
(Alarm 1,2 cleared)
Display A.PDF
(document No. 1)
which is set with
the alarm 1.
Display C.PDF
(document No. 3)
which is set with
the alarm 2.
PDF file will be hidden
when all alarms
cleared.
Switching PDF file
Address for Indirect reference
: $W100
$W100=2 $W100=5 $W100=0
Display the B.PDF file
(document No. 2).
Display the E.PDF file
(document No. 5).
PDF file will be hidden
when 0 is specified.
