3-3 Communications Settings
3-11
3-3-2 Ethernet
Making settings for Ethernet communications.

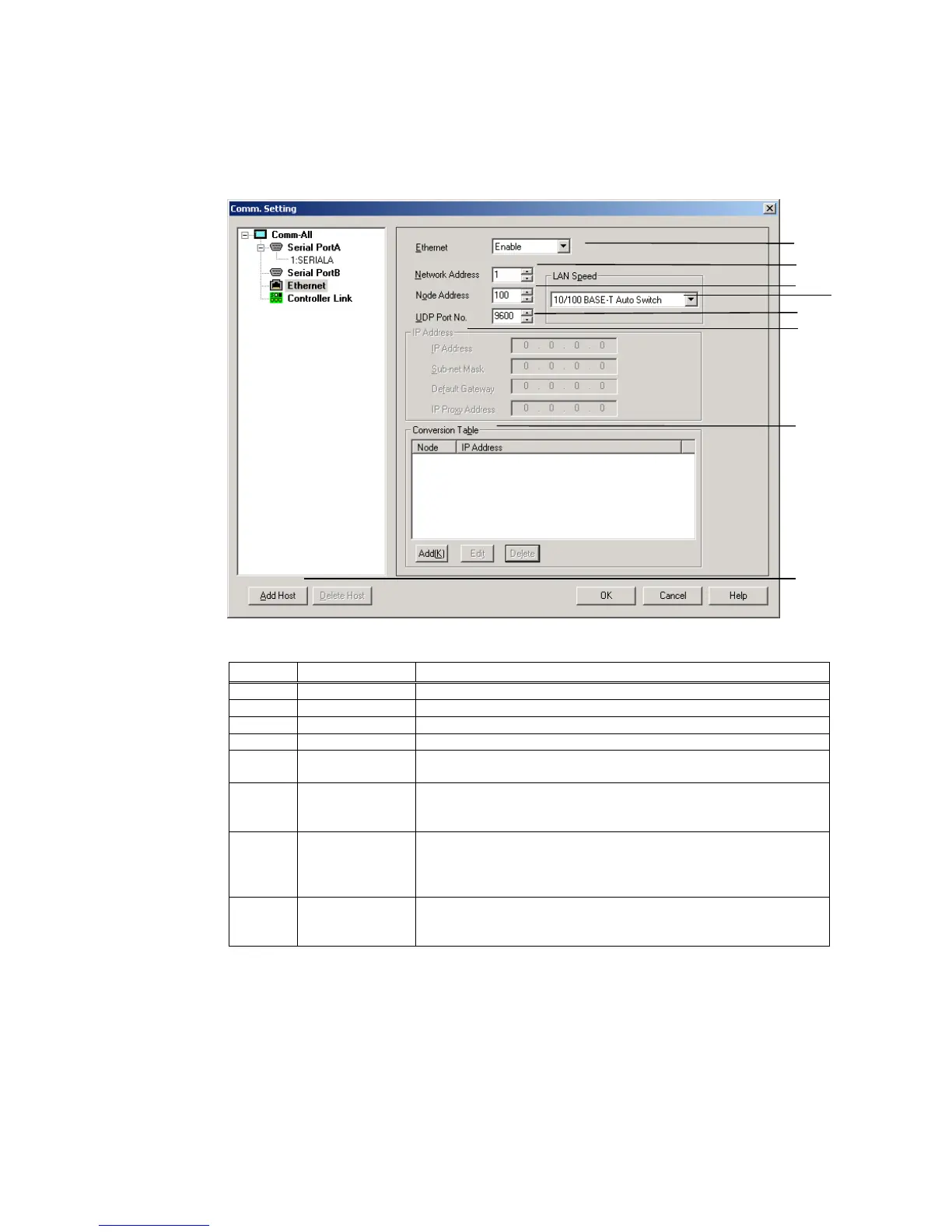

1. Select the Ethernet in the Comm. Setting Dialog Box.
1
2
3
4
5
6
7
8
No. Item Description
1 Ethernet Select the Enable when communicating through Ethernet.
2 Network Address Set the Network Address to between 1 and 127.
3 Node Address Set the Node Address to between 1 and 254.
4 UDP Port No. Set the UDP port number between 1024 and 65535.
5 LAN Speed Set 10/100BASE-T Auto Switch or 10BASE-T (fixed) for the speed
setting method for the Ethernet.
6 IP Address IP Address cannot be set with the CX-Designer.
Communications will be performed using the IP Address set in the
NS-Runtime environment.
7 Conversion Table Show a table of conversion from FINS Node Address to IP Address
when communicating through Ethernet. When using Ethernet
communications, click the Add Button and set the IP address
conversion table.
8 Add Host Add hosts.
Sets the host name, host type, network address and node address
for the host.
