3-3 Communications Settings
3-12
3-3-3 Controller Link
Making settings for Controller Link communications.

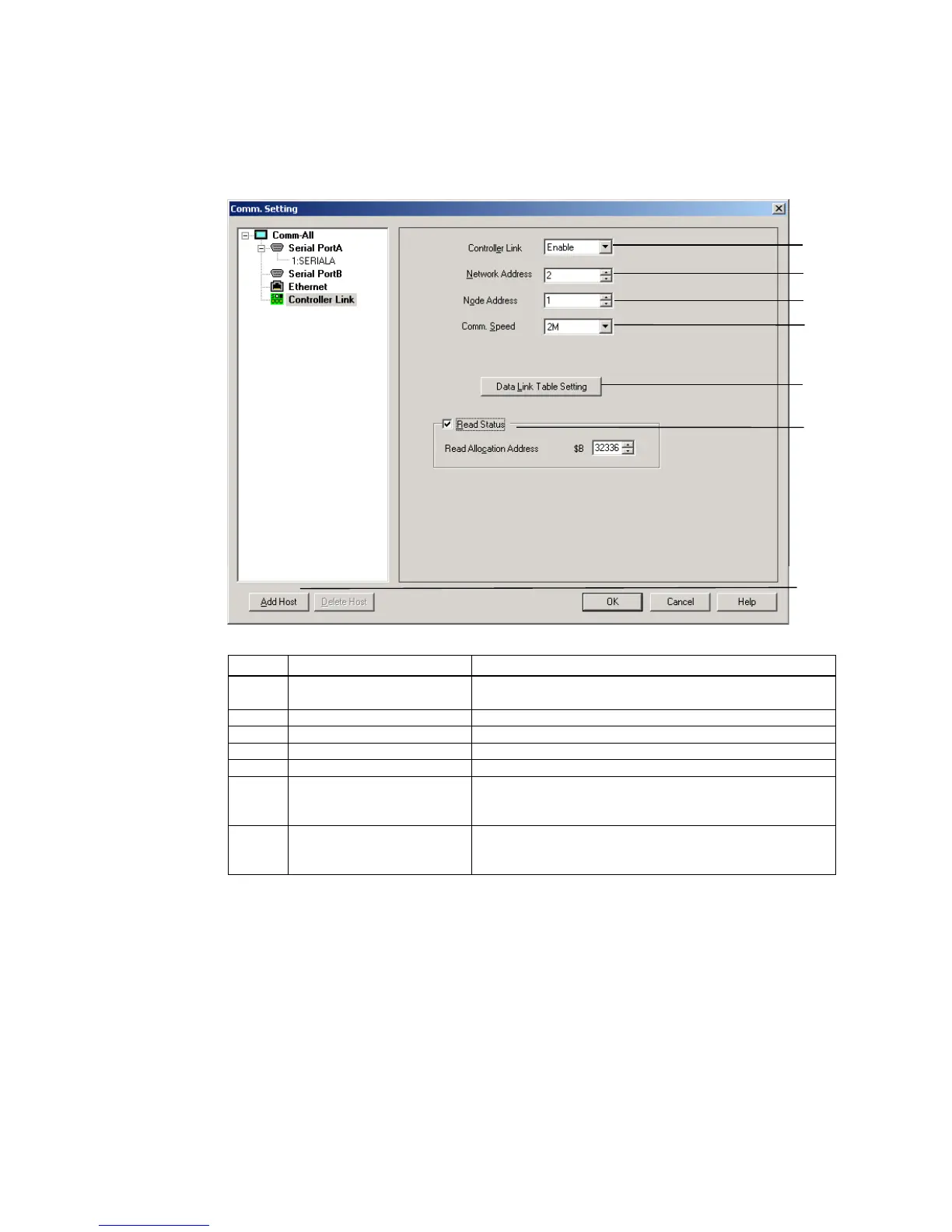

1. Select the Controller Link in the Comm. Setting Dialog Box.
1
2
3
4
5
7
6
No. Item Details
1 Controller Link Select the Enable when communicating through the
Ethernet.
2 Network Address Set the Network Address to between 1 and 127.
3 Node Address Set the Node Address to between 1 and 32.
4 Comm. Speed Set the baud rate (bps) to 500k, 1M or 2M.
5 Data Link Table Setting Specify the data link table.
6 Read Status Select this option when reading the status of controller link.
Then set the read allocation address to a multiple of 16
within a range of $B0 to $B32336.
7 Add Host Add hosts.
Set the host name, host type, network address and node
address for hosts.
