9-2-4 Diagnostic and Statistical Information

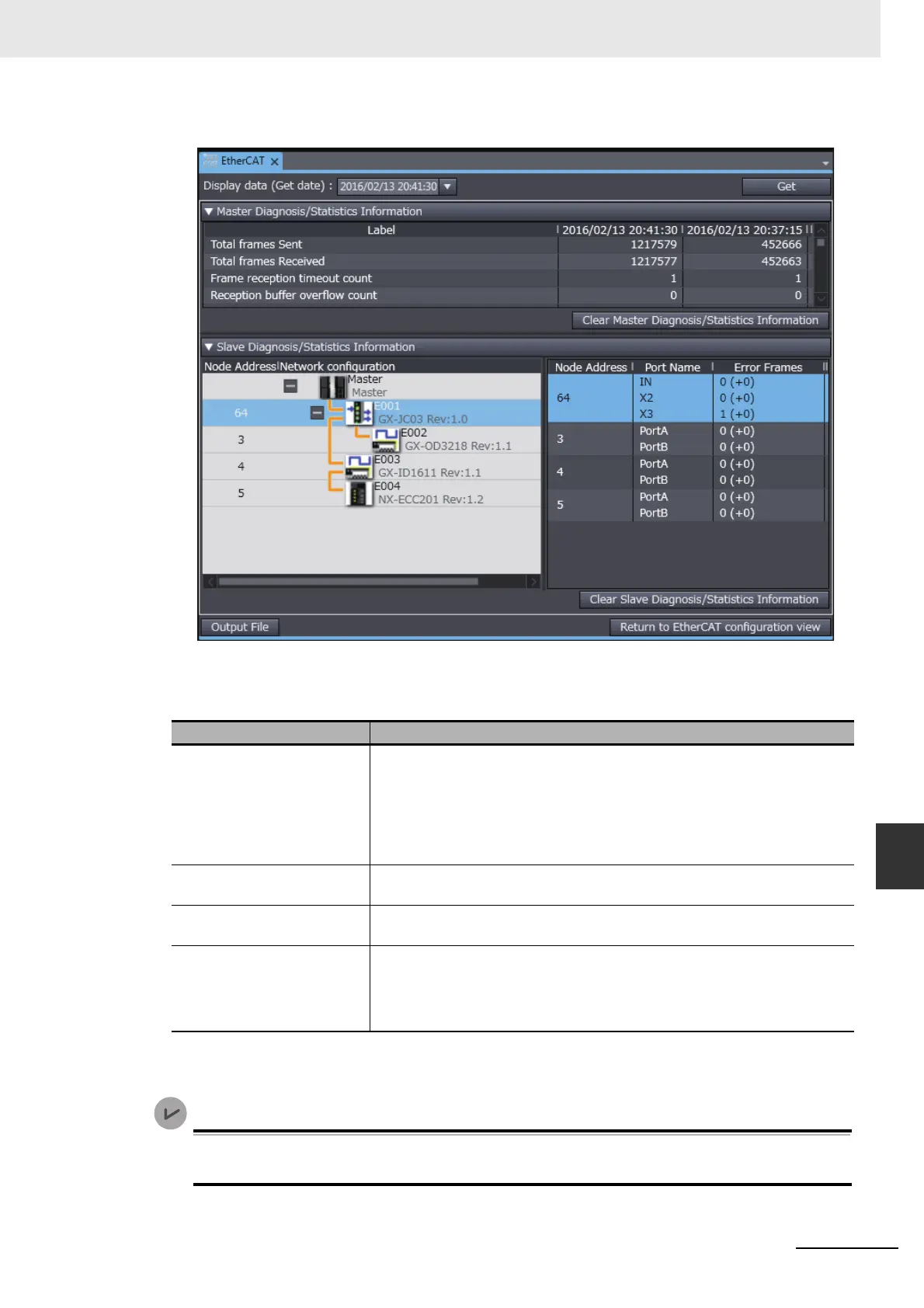

The diagnostic and statistical information for the master and slaves are displayed.
Operation Button Functions
The following table describes the buttons to operate the diagnostic and statistical information.
*1 Only for the EtherCAT slaves that are registered in the network configuration information of the project.
*2 If the number of error frames exceeds 255, 255 is output.
A CPU Unit with unit version 1.11 or later and Sysmac Studio version 1.15 or higher are required
to use the Clear Slave Diagnosis/Statistics Information Button.
Button Function
Get Acquires the diagnostic and statistical information from the EtherCAT master
and EtherCAT slaves
*1
and updates the display.
You can retain a maximum of 100 diagnostic and statistical data that you
acquired.
When the Display Diagnosis/Statistics Information Tab Page is closed, the
diagnostic and statistical information that you acquired are discarded.
Clear Master Diagnosis/Sta-
tistics Information
Clears all values of the master diagnostic and statistical information to zeros.
Clear Slave Diagnosis/Statis-
tics Information
Clears all values of the slave diagnostic and statistical information to zeros.
Output File Outputs the diagnostic and statistical information to a CSV file in a specified
folder. The following data are output.
• Master diagnostic and statistical information
• Slave diagnostic and statistical information
*2
