A-21
Appendices
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)
A-3 Multi-vendor Environments
A
A-3-3 Installing ESI Files
4

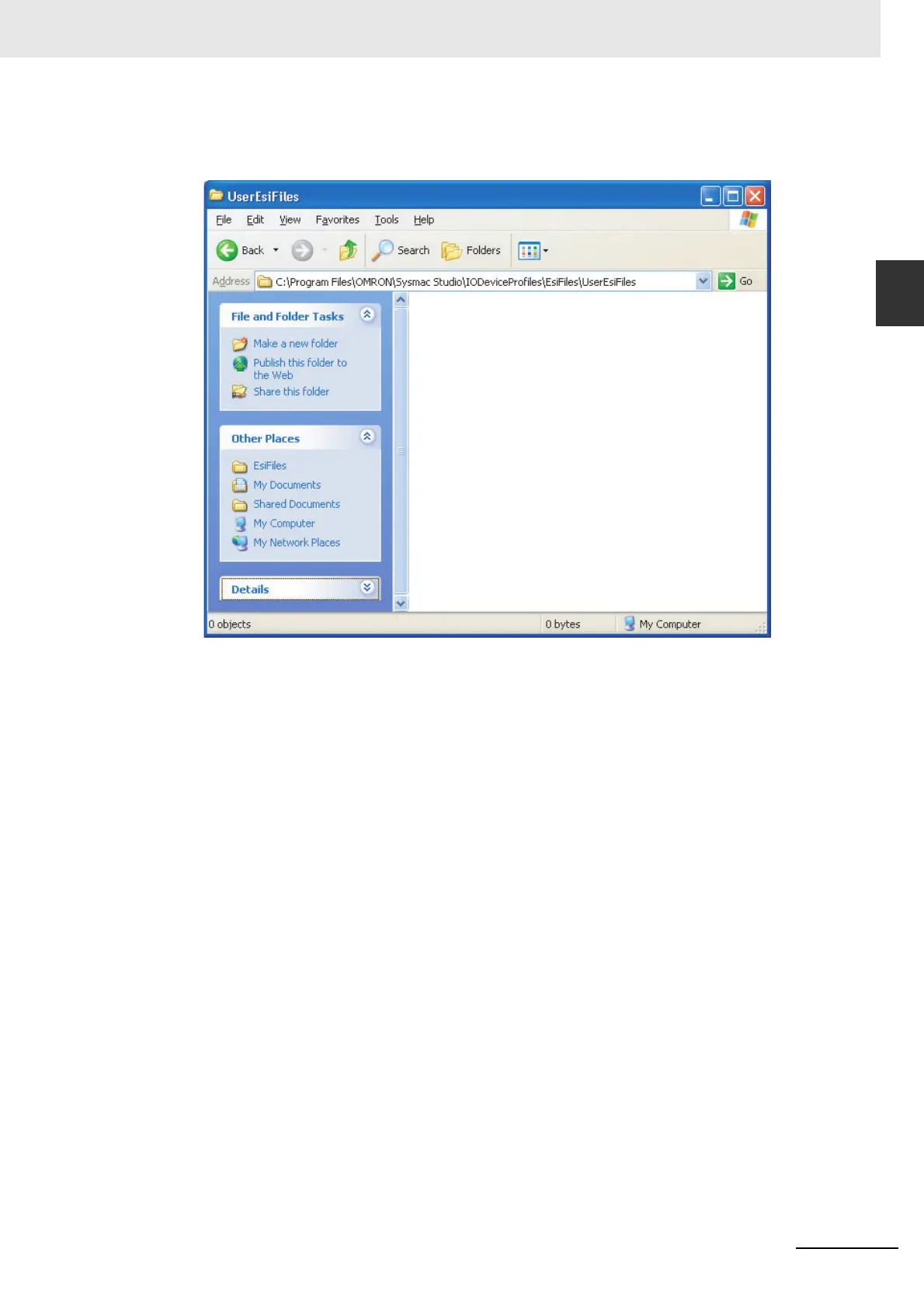

Copy the ESI file for the EtherCAT slave that is manufactured by another company and paste it
in the EsiFiles folder. Obtain the ESI file from the slave manufacturer. The ESI file must conform
to the most recent ETG ESI specifications.
5
Restart the Sysmac Studio.
The ESI file that you installed is displayed in the ESI Library Dialog Box after you restart the
Sysmac Studio.
To Next Page
