10.6 Drive Exterior and Mounting Dimensions
382 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
■ 4208 to 4296

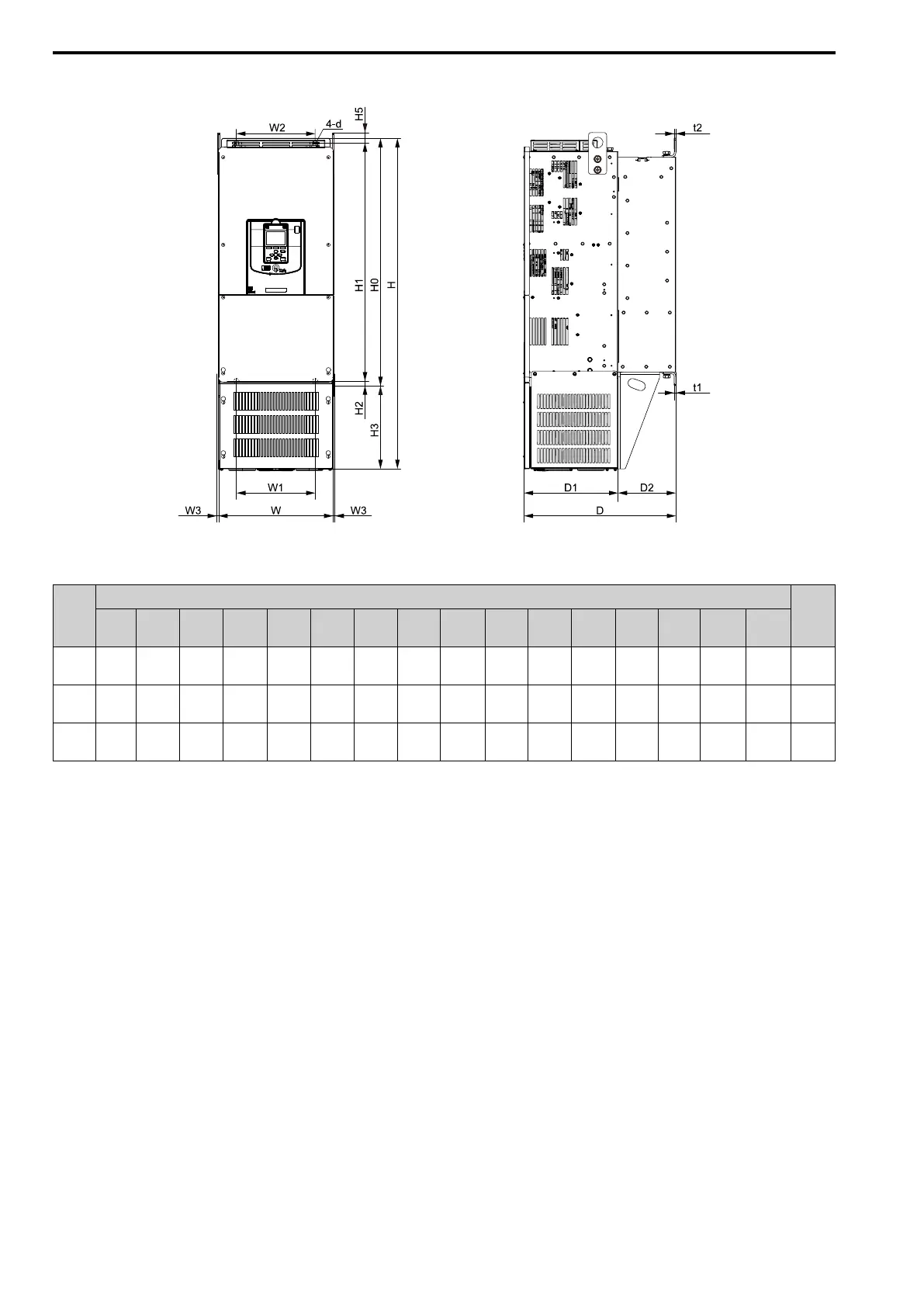

Figure 10.16 Exterior and Mounting Dimensions Diagram 7
Table 10.33 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W3
(max.)
H0 H1 H2 H3 H5 t1 t2 d
4208
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
79
(174.16)
4250
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
79
(174.16)
4296
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
79
(174.16)
