3.4 Main Circuit Terminal Block Wiring
82 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

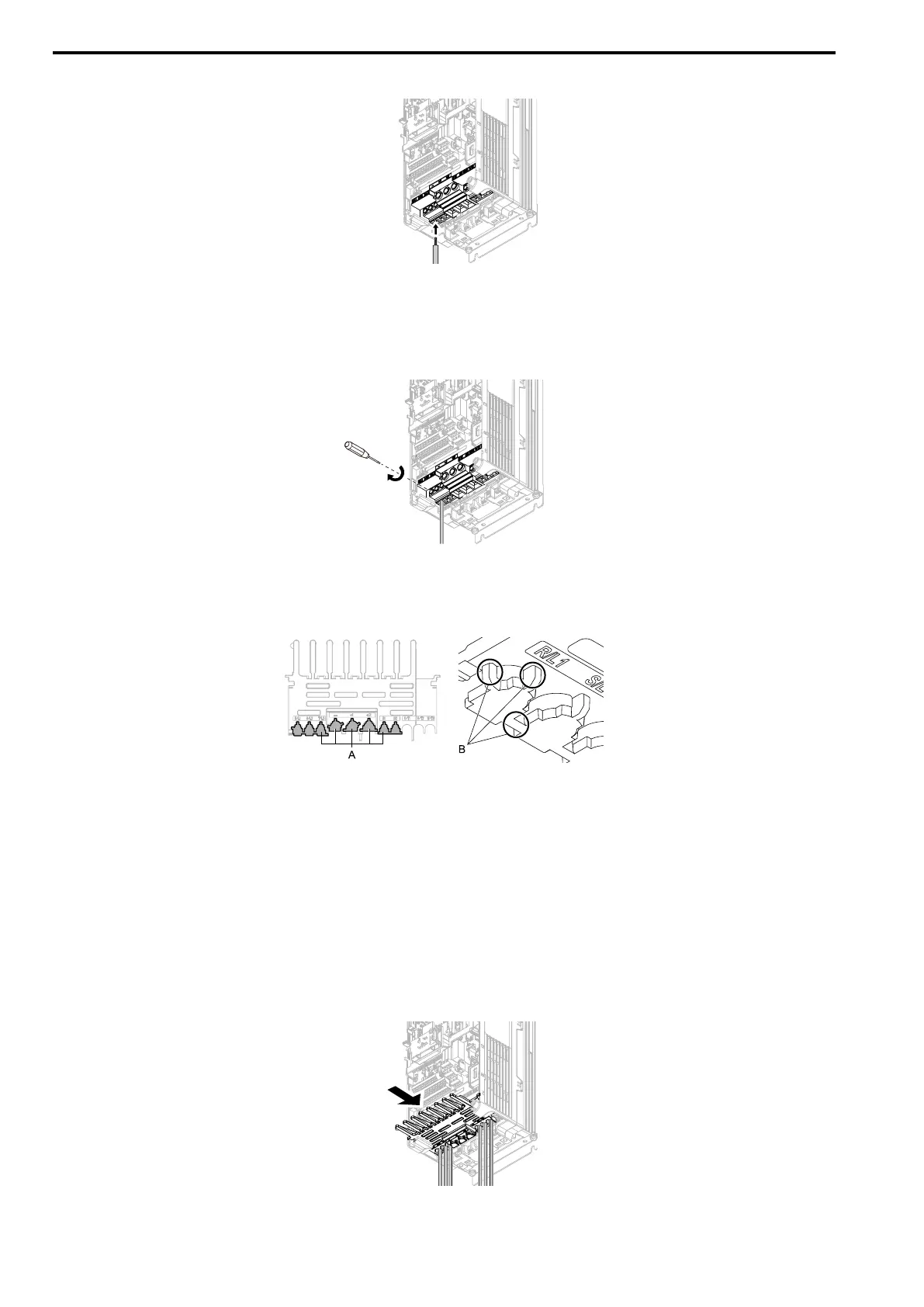

2. Put the end of a prepared wire into the terminal block.
Figure 3.23 Install the Electrical Wire
Note:
If there is a jumper between terminals +1 and +2, loosen the terminal block screws and remove the jumper before wiring the
terminals.
3. Tighten the screws to the specified torque.
Figure 3.24 Tighten Terminal Block Screws
4. Check the signal from the wired terminal and use a diagonal-cutting pliers to remove areas of the wiring
cover cutaway section.
Cut the areas shown in Figure 3.25.
A - Cutaway section B - Use a diagonal-cutting pliers to
clip this area.
Figure 3.25 Clip the Cutaway Section of the Wiring Cover
Note:
• Different drive models have different wiring cover shapes.
• Remove only the areas from the wiring cover that apply to the wired terminal. The drive will not keep its IP20 protective level
if areas that do not apply to the wired terminal are removed.
• Tightly hold the cutaway section when removing pieces of the cutaway section. Pieces of the cutaway section can fly out
and cause injury.
• Remove sharp edges from the wiring cover cutaway section to prevent damage to the wires.
• The drive might not keep its IP20 protective level if wires other than those specified by the manufacturer are used, even if
the wiring cover is used correctly. Contact the manufacturer or your nearest sales representative for more information.
5. Install the wiring cover to its initial position. Put the cables through the holes cut from the wiring cover.
Figure 3.26 Reattach the Wiring Cover
To Next Page
