Omron R6Y Series User Manual

4-46
CHAPTER 4 Adjustment
8 Adjusting the Timing Belt Tension
The X series robots use a timing belt for controlling the movement of the Z and
R axes. If the belt becomes slack, use the following procedure to give proper
tension to the belt.
Push-pull scale
Slack
Load
Pulley
Pulley
Belt

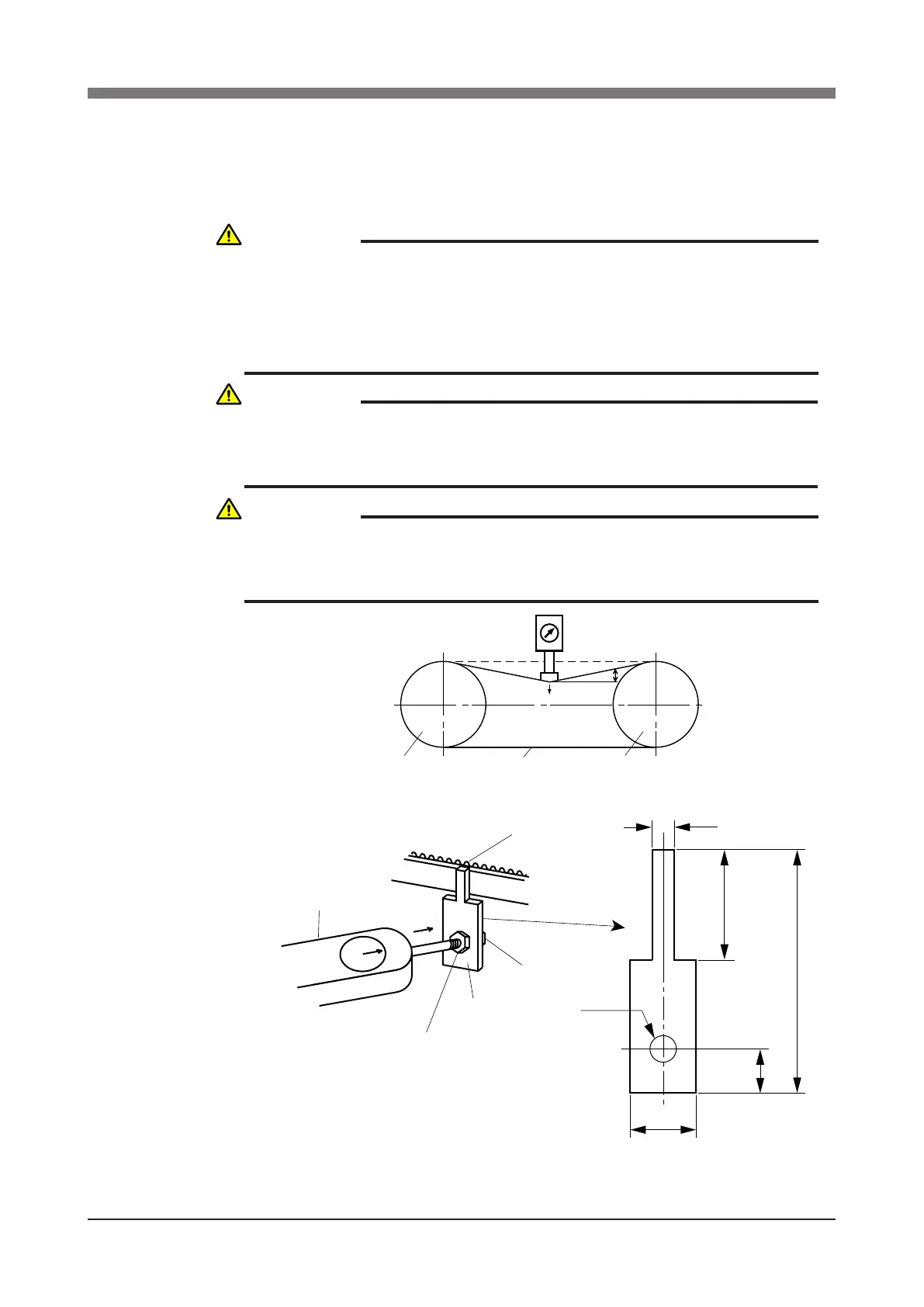

Fig. 4-16 Belt tension adjustment
5
Belt
Push-pull scale
Nut
Nut
Stay
Metal plate 3.2mm
thickness
25
55
10
Hole
15
Fig. 4-17 Stay (example)
WARNING
THE MOTOR AND SPEED REDUCTION GEAR CASING ARE EXTREMELY
HOT AFTER AUTOMATIC OPERATION, SO BURNS MAY OCCUR IF
THESE ARE TOUCHED. BEFORE TOUCHING THESE PARTS, TURN OFF
THE CONTROLLER, WAIT FOR A WHILE AND CHECK THAT THE
TEMPERATURE HAS COOLED.
WARNING
INJURY CAN OCCUR IF HANDS OR FINGERS ARE SQUEEZED BETWEEN
THE DRIVE PULLEY AND BELT. ALWAYS TURN OFF THE CONTROLLER
AND USE CAUTION WHEN HANDLING THESE PARTS.
CAUTION
SINCE A POSITIONAL SHIFT OCCURS AFTER ADJUSTING THE BELT
TENSION, IT IS NECESSARY TO MAKE ABSOLUTE RESET, STANDARD
COORDINATE SETTING AND POINT DATA SETTING AGAIN.
