3-31
CHAPTER 3 Installation
6-3 Example of moment of inertia calculation

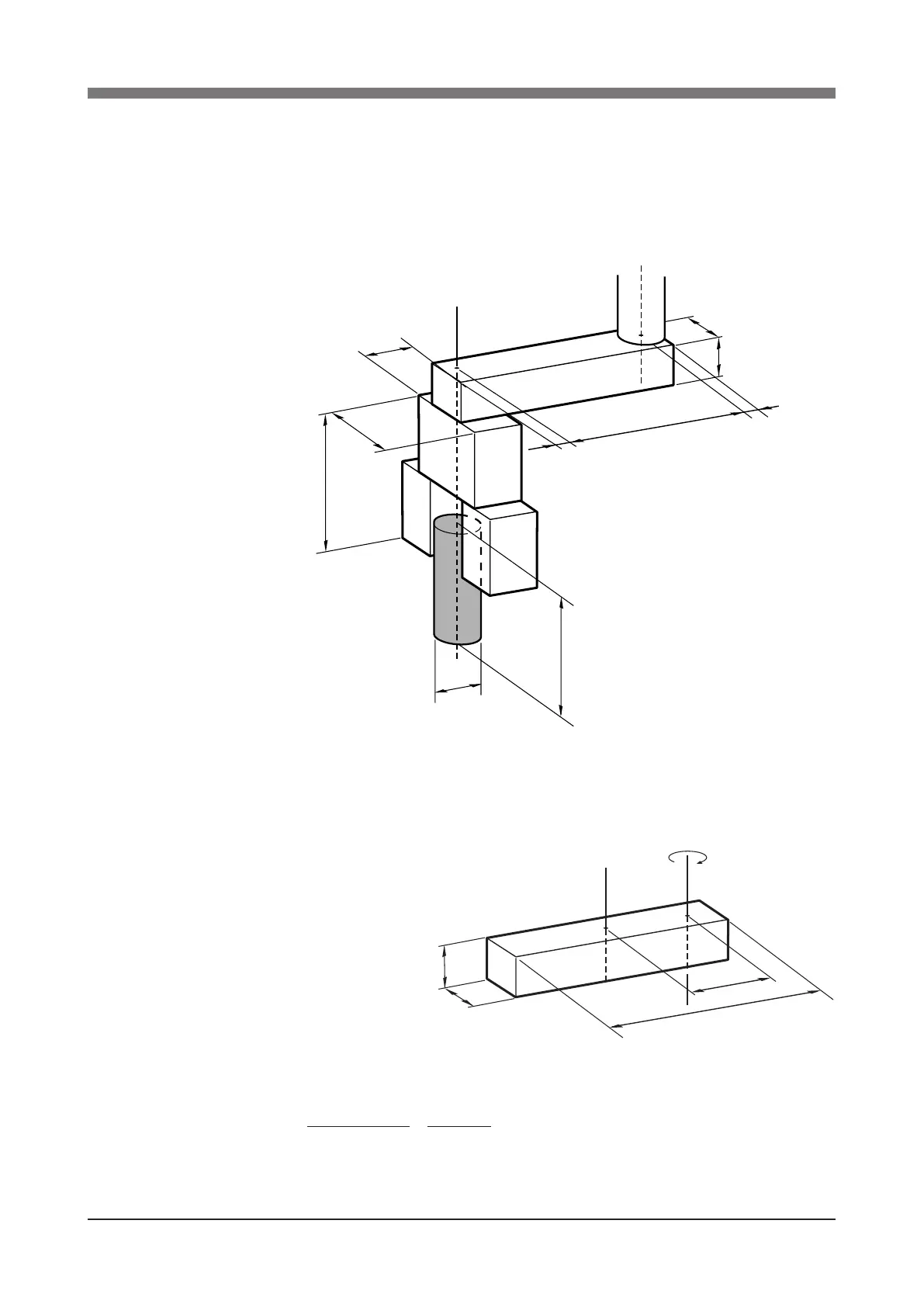

Let's discuss an example in which the chuck and workpiece are at a position
offset by 10cm from the R-axis by a stay, as shown in Fig. 3-86.
The moment of inertia is calculated with the following three factors, assuming
that the load material is steel and its density ρ is 0.0078kg/cm
3
.
10cm
2cm
2cm
R-axis
1cm
1cm
2cm
2cm
4cm
6cm
4cm
Stay
Chuck
Workpiece
Fig. 3-35
1) Moment of inertia of the stay
From Fig. 3-36, the weight of the
stay (Ws) is given as follows:
Ws = rabc = 0.0078 x 12 x 2 x 2
= 0.37 (kgf)
The moment of inertia of the stay (Js) is then calculated from Eq. 3-7.
Js =
0.37 x (12
2
+2
2
)
+
0.37 x 5
2
= 0.014 (kgf · cm · sec
2
)
12 x 980 980
Fig. 3-36
12cm
2cm
2cm
Center line
5cm
R-axis
To Next Page
