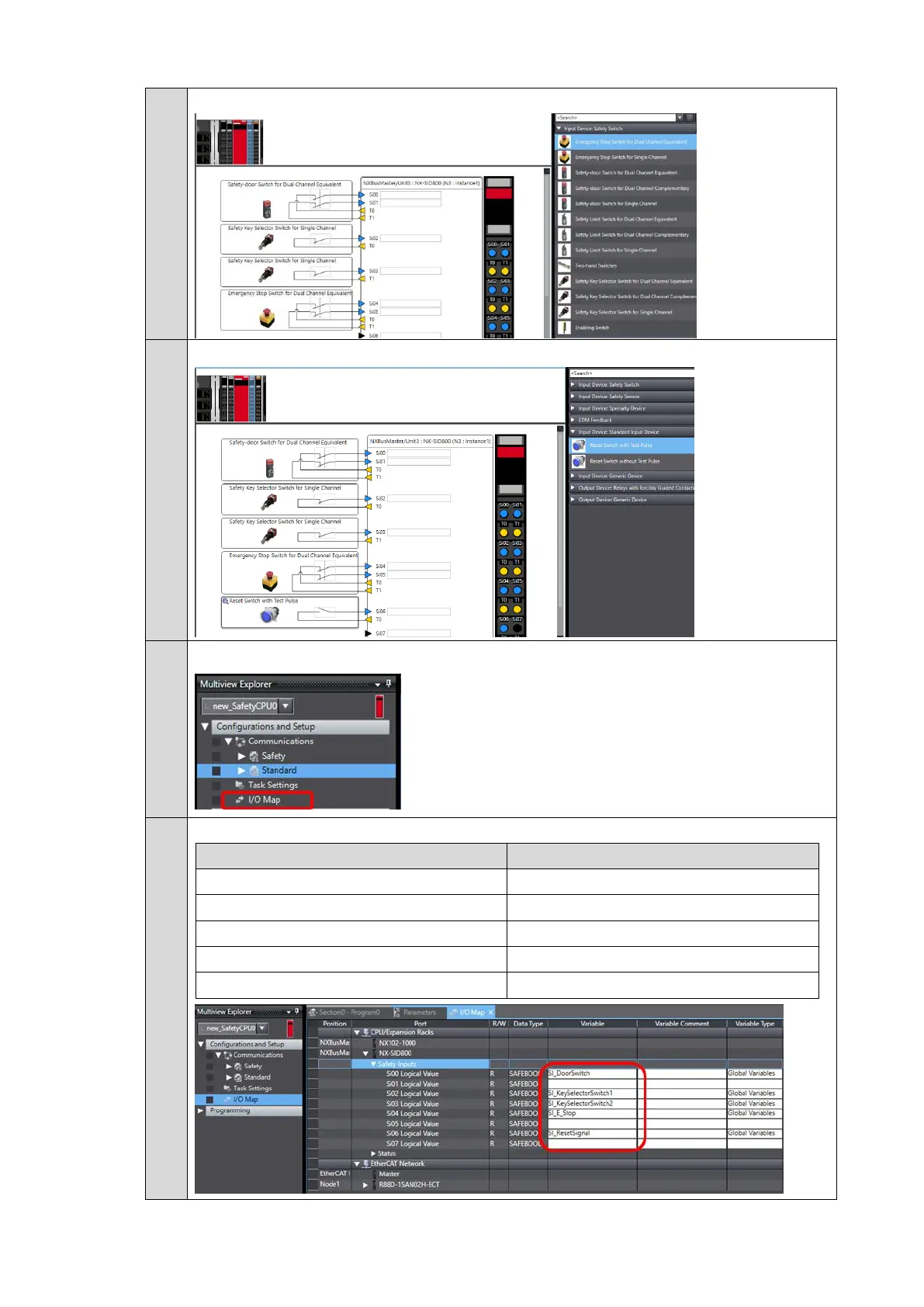

37
5.
Drag an emergency stop pushbutton switch to the desired I/O terminal.
6.
Drag a reset switch to the desired I/O terminal.
7.
Double-click I/O Map.
8.
Create device variables for the safety input devices.
Port
Variable name
Si00 Logical Value
SI_DoorSwitch
Si02 Logical Value
SI_KeySelectorSwitch1
Si03 Logical Value
SI_KeySelectorSwitch2
Si04 Logical Value
SI_E_Stop
Si06 Logical Value
SI_ResetSignal
