Run Mode Section 5-4
Operations in Run
Mode
In Run Mode, the output voltage, present currents for branch outputs, peak
output current for branch outputs, total current, maintenance forecast monitor
output, and internal temperature can be monitored regardless of the protec-
tion level. The peak output currents can also be cleared.
❍ :Not lit
● :Lit
★ :Flashing
Note (1) The procedure for clearing peak output currents is given below.
(2) Displays the sum of the present currents of all branch outputs
(3) The branch output with the maximum number.

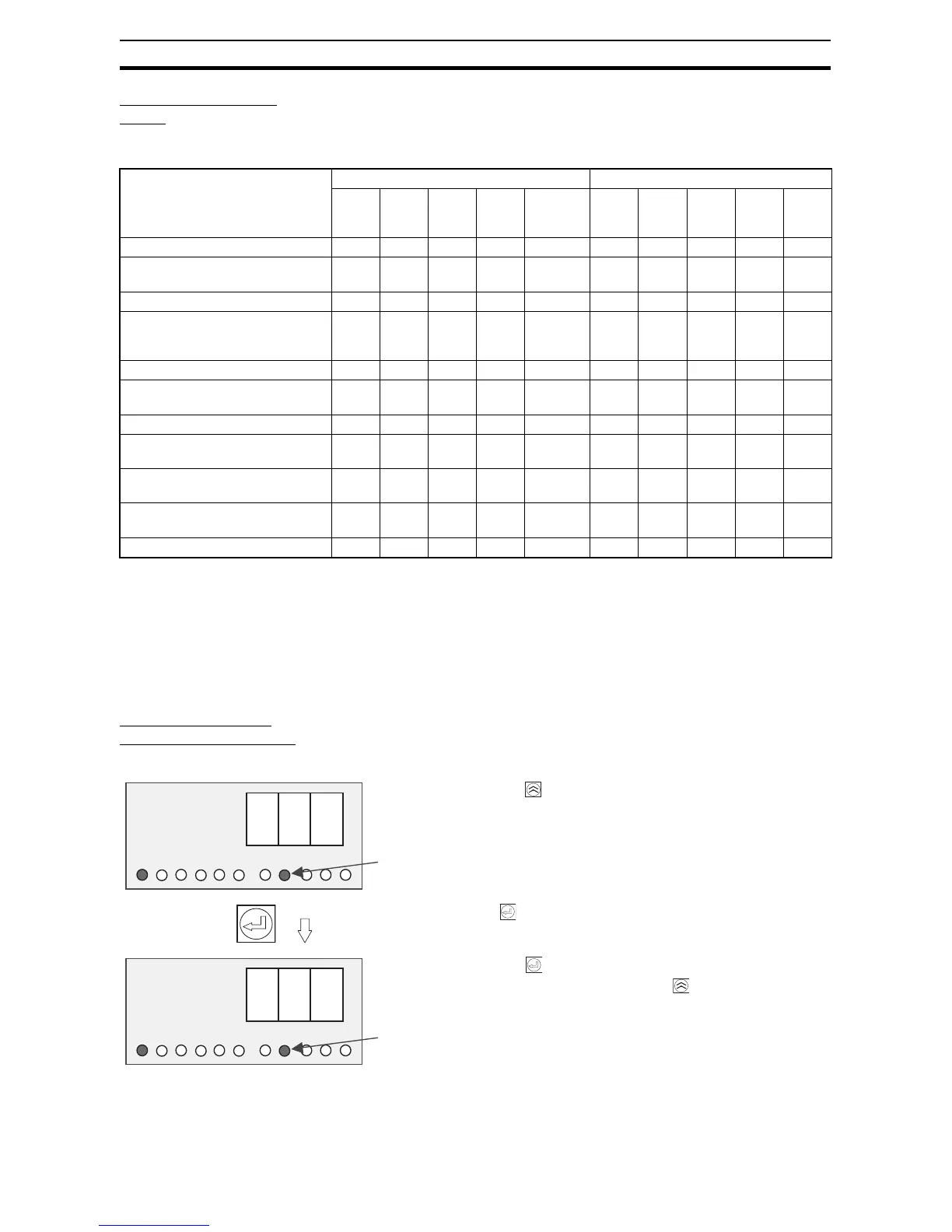

Clearing the Peak
Output Current Value
The peak output currents can be cleared. Clearing is possible in any protec-
tion level. The procedure for clearing the peak output current for branch output
1 is given below.
Display Branch output number indicators Unit indicators
1 2 3 to 6 (8)
(See
note 3.)
VAYrs°Cs
Output voltage ❍❍❍to ❍ ● ❍❍❍❍
Total output current of all branch
outputs (See note 2.)
●●●to ●❍●❍❍❍
Present current of branch output 1 ●❍❍to ❍❍●❍❍❍
Peak output current of branch out-
put 1
(See note 1.)
●❍❍to ❍❍★❍❍❍
Present current of branch output 2 ❍● ❍to ❍❍●❍❍❍
Peak output current of branch out-
put 2
❍● ❍to ❍❍★❍❍❍
to to
Present current of branch output
with maximum number
❍❍❍to ●❍●❍❍❍
Peak current of branch output with
maximum number
❍❍❍to ●❍★❍❍❍
Maintenance forecast monitor out-
put
❍❍❍to ❍❍❍●❍❍
Internal temperature ❍❍❍to ❍ ❍❍❍● ❍
Press the Key until the “A” unit indicator flashes. When the
“A” unit indicator is lit, the branch output current is being dis-
played. When the “A” unit indicator is flashing, the branch out-
put peak current is being displayed.
If the Key is pressed while the peak current is being dis-
played, the peak current will be cleared.
Press the Key. “NO” will be displayed. Clearing is not pos-
sible from this display, so press the Key to change the dis-
play to “YES.”
(If no keys are pressed within 5 s, the S8AS will auto-
matically return to the last display.)
& 8
23
4
°C
Yrs
V
A
s
1 5
6
Flashing
Flashing
n o
23
4
°C
Yrs
V
A
s
1 5
6
