Connection/Disconnection Test Section 5-2
5-2 Connection/Disconnection Test
Before performing the connection/disconnection test in Test Mode, always
confirm that it is safe to do so and will not adversely affect the system.
Use the above procedure to test connecting and disconnecting the branch
outputs and set the branch outputs that are to be used to “ON.”
Note Be sure to set the branch outputs that will be used to “ON.” If a
branch output is not set to “ON” when the S8AS is switched to Run
Mode, that branch output cannot be used.
If the Key is pressed a second time when testing the branch outputs, the
indictors for all branch outputs will flash and all branch outputs can be con-
nected and disconnected at the same time.
To move to another mode after testing the branch outputs, press both the
Key and Key together for at least 3 seconds to switch to the Mode Selec-
tion Menu.

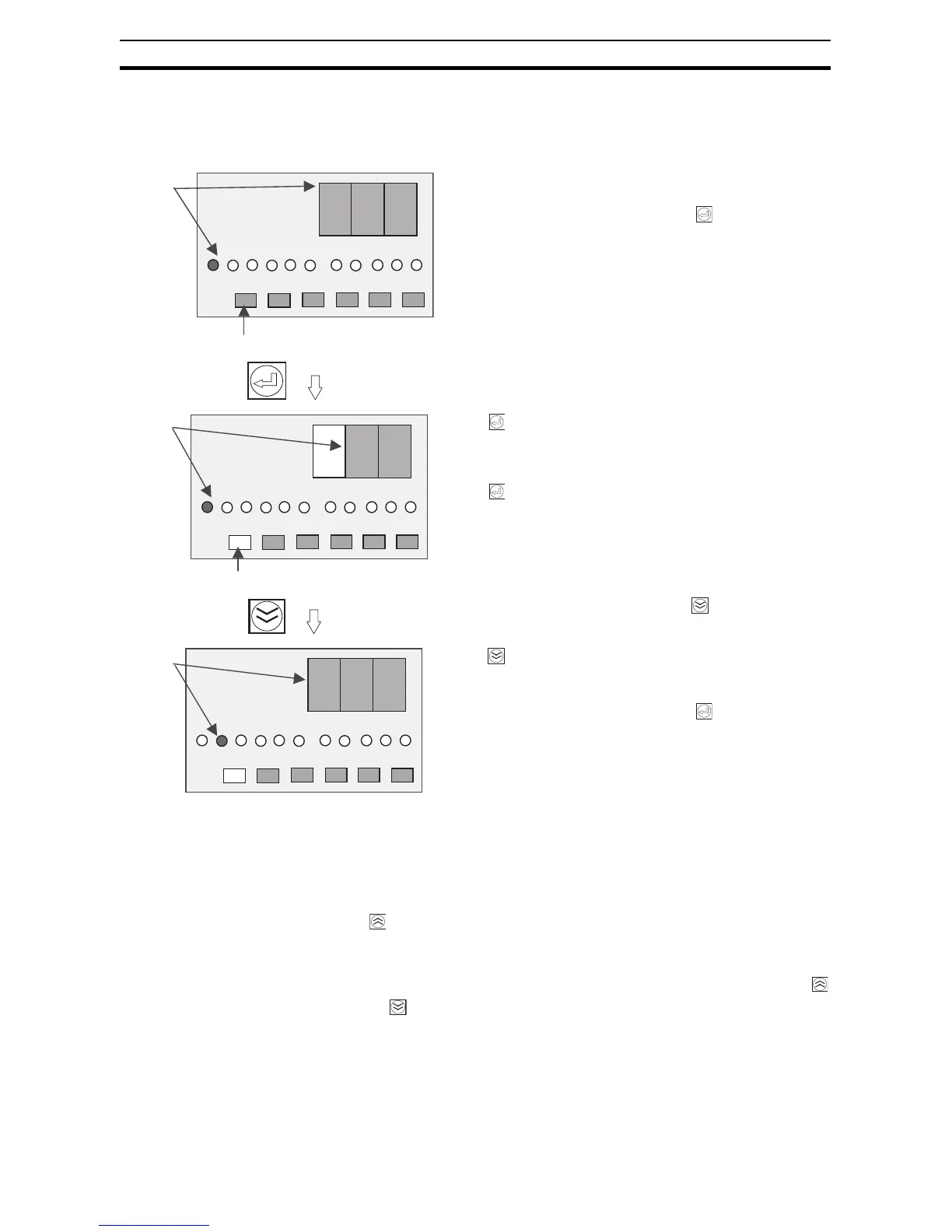

The flashing “OFF” display indicates that the S8AS is ready to
disconnect branch output 1.
To disconnect branch output 1, press the Key.
If the Key is pressed, branch output 1 will be disconnected
and the output 1 indicator will go OFF. The seven-segment dis-
play will flash the “ON” to indicate that the S8AS is ready to con-
nect branch output1.
If the Key is pressed again, branch output 1 will be con-
nected.
To test another branch output, press the Key to change the
branch output.
If the Key is pressed, the branch output 2 indicator will begin
to flash, indicating that the S8AS is ready to disconnect branch
output 2.
To disconnect branch output 2, press the Key.
Flashing
off
1 2 3 4 5 6
23
4
°C
Yrs
V
A
s
1 5
6
All of the branch output status indicators will be lit.
Flashing
The status indicator of branch out
p
ut 1 will
g
o OFF.
1 2 3 4 5 6
o
n
23
4
°C
Yrs
V
A
s
1 5
6
Flashing
o f f
1 2 3 4 5 6
23
4
°C
Yrs
V
A
s
1 5
6
