60
Switching to Setting Mode Section 4-4
4-4 Switching to Setting Mode
When the S8AS is started, it will enter Run Mode. If the power was turned
OFF while the S8AS was in Test Mode, it will start in Test Mode the next time
it is started.
To switch to Setting Mode from Run Mode or Test Mode, select Setting Mode
from the Mode Selection Menu, as shown below.
The Mode Selection Menu can be displayed by pressing both the Up (SEL)
Key ( ) and Down (CH) Key ( ) simultaneously for 3 seconds.

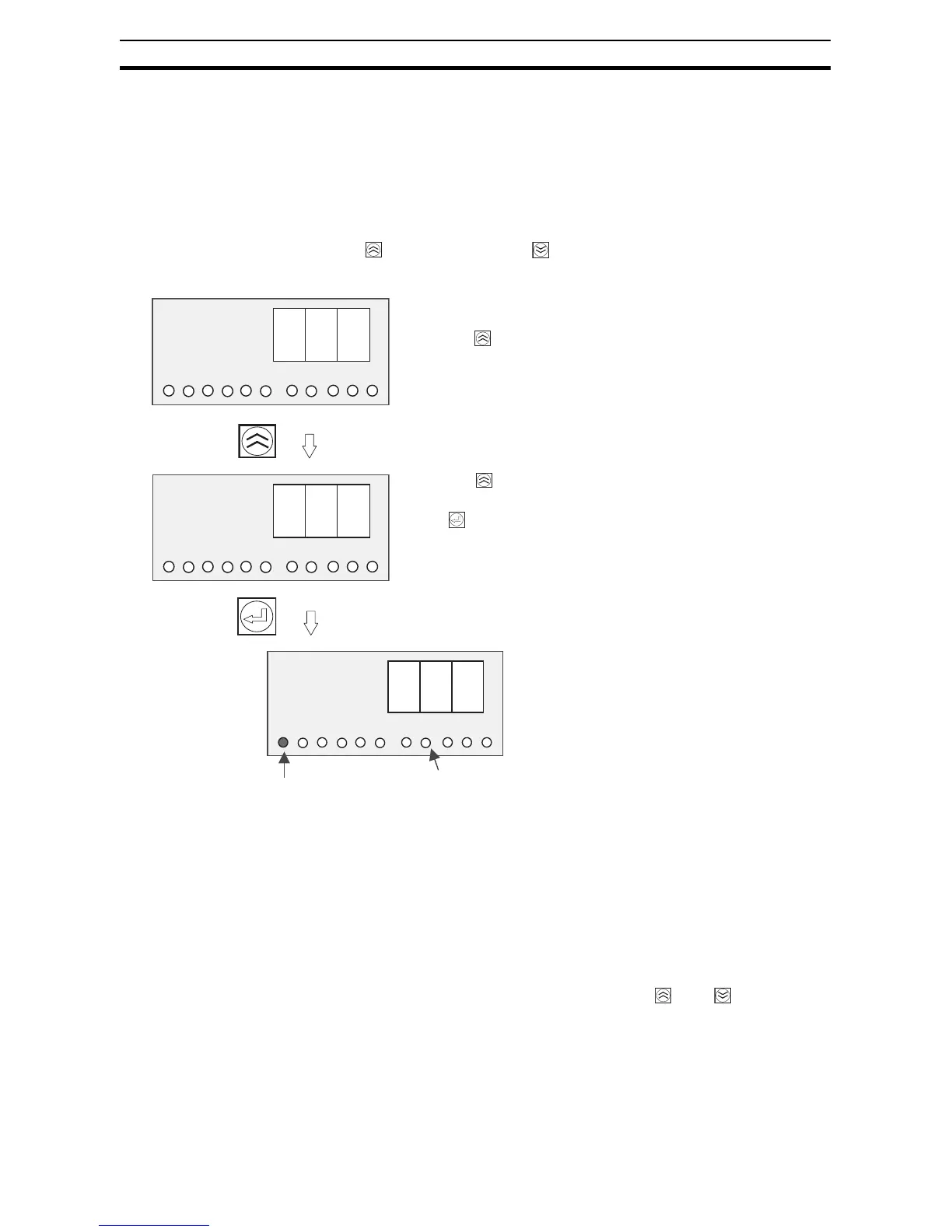

Selecting the Operating Mode from the Mode Selection Menu
The initial Setting Mode display is the abnormal current tripping threshold (C-
V) for branch output 1.
The branch output that was most recently modified will be the current branch
output regardless of the operating mode.
Once the S8AS is switched to Setting Mode, it will not return to Run Mode
automatically.
(To return to Mode Selection Menu, press the and Keys simulta-
neously for 3 seconds again.)
For details on setting parameters in Setting Mode, refer to the following pages.
If the S8AS is switched to the Mode Selection Menu from Run Mode,
RUN (select Run Mode) will be displayed.
Press the Key.
When the
Key is pressed, SET (select Setting Mode) will be dis-
played.
If the Key is pressed, the S8AS will switch to Setting Mode.
The initial display for Setting Mode will be displayed.
r u n
1
2
3
4
5
6
V
A
Yrs
s
°C
s e t
1
2
3
4
5
6
V
A
Yrs
s
°C
Branch output number 1 is lit.
c -
V
The "A" unit indicator will
be lit when a current is
displayed.
1
2
3
4
5
6
V
A
Yrs
s
°C
To Next Page
