Test Mode Section 5-1

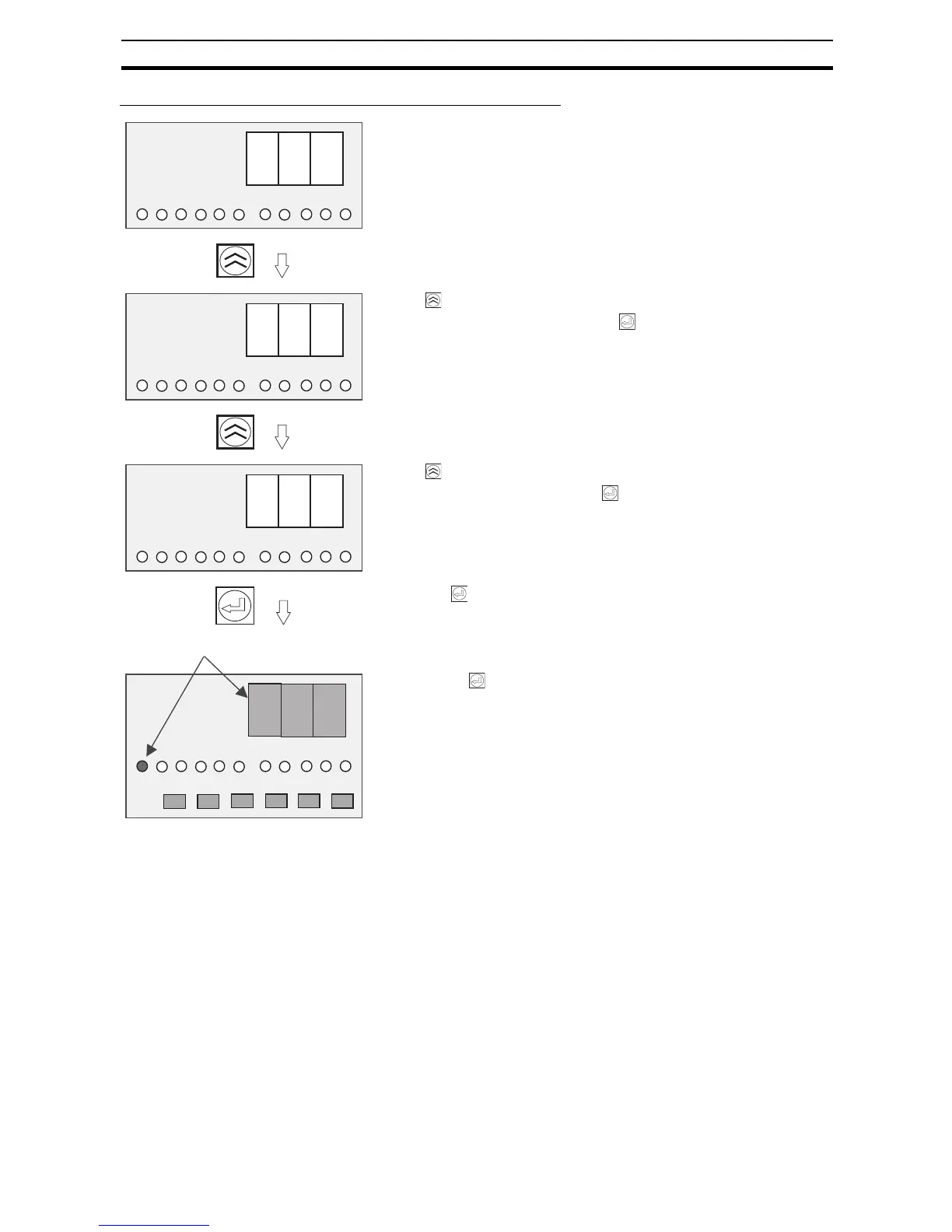

Operations and Displays in the Mode Selection Menu
If the S8AS is switched to the Mode Selection Menu from Run
Mode, RUN will be displayed on the seven-segment display. If the
S8AS is switched to the Mode Selection Menu from Setting Mode,
SET will be displayed on the seven-segment display.
If the Key is pressed, SET will be displayed. At this point, the
S8AS will switch to Setting Mode if the Key is pressed.
• You cannot switch to Setting Mode if using models that do not
allow changes to settings (S8AS-24006N/48008N).
If the Key is pressed, TST will be displayed. At this point, the
S8AS will switch to Test Mode if the Key is pressed.
Press the Key to change to Test Mode.
The flashing “OFF” display indicates that the S8AS is ready to dis-
connect branch output 1.
Pressing the Key at this point will disconnect branch output 1.
r u n
23
4
°C
Yrs
V
A
s
1 5
6
s e t
23
4
°C
Yrs
V
A
s
1 5
6
t s t
23
4
°C
Yrs
V
A
s
1 5
6
1 2 3 4 5 6
f
o
f
23
4
°C
Yrs
V
A
s
1 5
6
Flashing
