31
Basic Function Details Section 2-4
When the abnormal current is detected and branch output is cut off, the error
code (A11) and present current are displayed alternately on the seven-seg-
ment display and the Tripping Alarm Output (TRP) is turned OFF.
The status indicator of the branch output that was cut off will flash red.
To clear the error, eliminate the cause of the error, and then press the Reset
Key. Once an error has been reset, another reset operation cannot be per-
formed for at least 15 seconds.

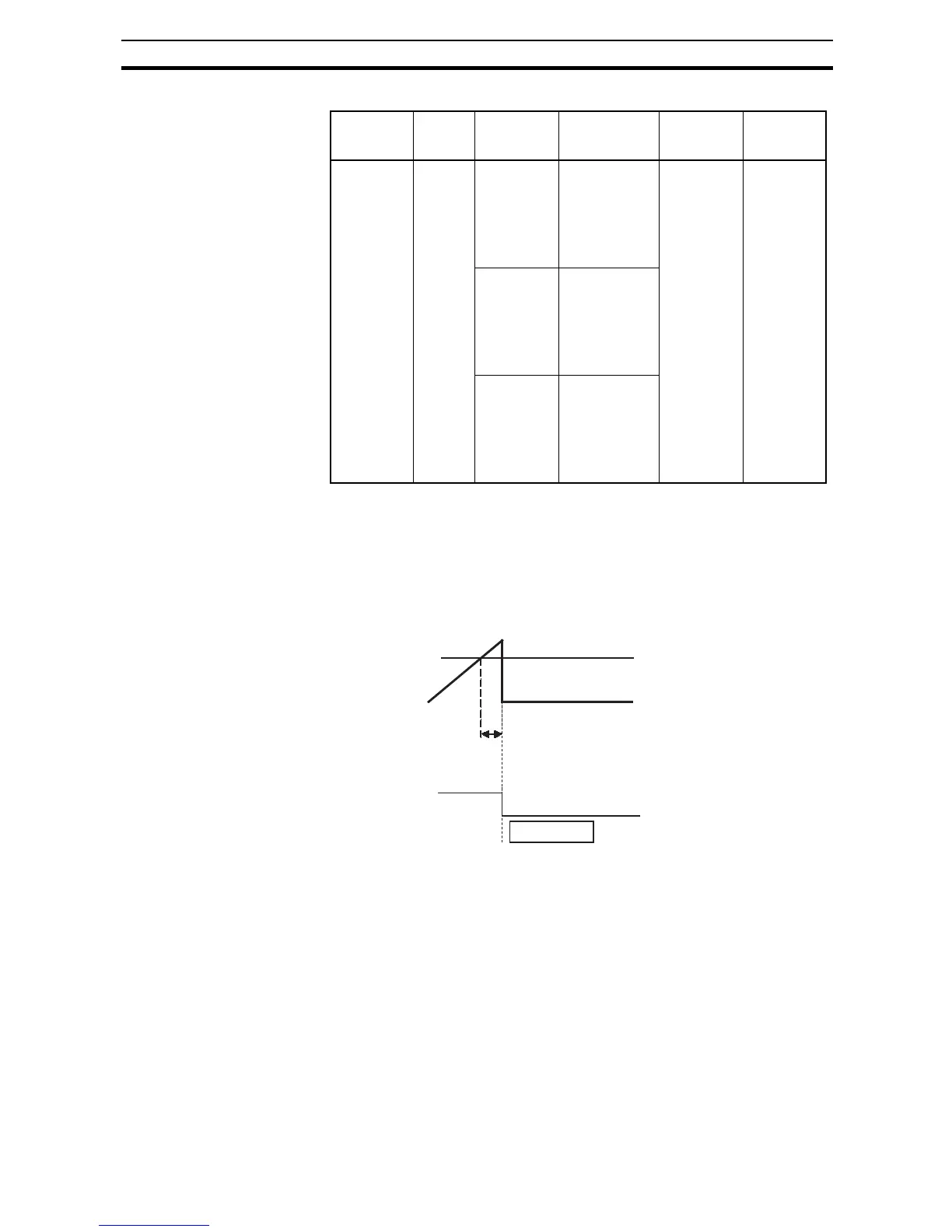

Setting
range
Default
value
Tripping
type
Operation Error code
and alarm
output
Conditions
required to
reset
0.5 to 3.8 A 3.8 A Standard When a cur-
rent higher than
the set value is
detected, the
branch output
is cut off within
100 ms.
The error
codeA11
and current
are dis-
played alter-
nately on the
seven-seg-
ment dis-
play and the
Tripping
Alarm Out-
put (TRP)
photoswitch
output turns
OFF.
After tripping
(15 s has
elapsed
after the pre-
vious reset.)
Instanta-
neous
When a cur-
rent higher than
the set value is
detected, the
branch output
is cut off within
20 ms.
Extended
time
When a cur-
rent higher than
the set value is
detected, the
branch output
is cut off within
1,000 ms.
Abnormal current
tripping threshold
Current
Standard detection: 100 ms max.
Instantaneous detection: 20 ms max.
Extended detection 1,000 ms max
Tripping Alarm
Output (TRP)
Reset possible
