Omron S8AS User Manual

36
Basic Function Details Section 2-4
Relationship between
Control Panel
Temperature and S8AS
Internal Temperature
The internal temperature of the S8AS is displayed. This is not necessarily the
same as the ambient temperature of the S8AS or the temperature inside the
control panel. The difference between the internal temperature of the S8AS
and the ambient temperature depends on the current flowing through the
S8AS. Consider this difference in the application.
The following graph provides reference information on the displayed internal
temperature and the ambient temperature.

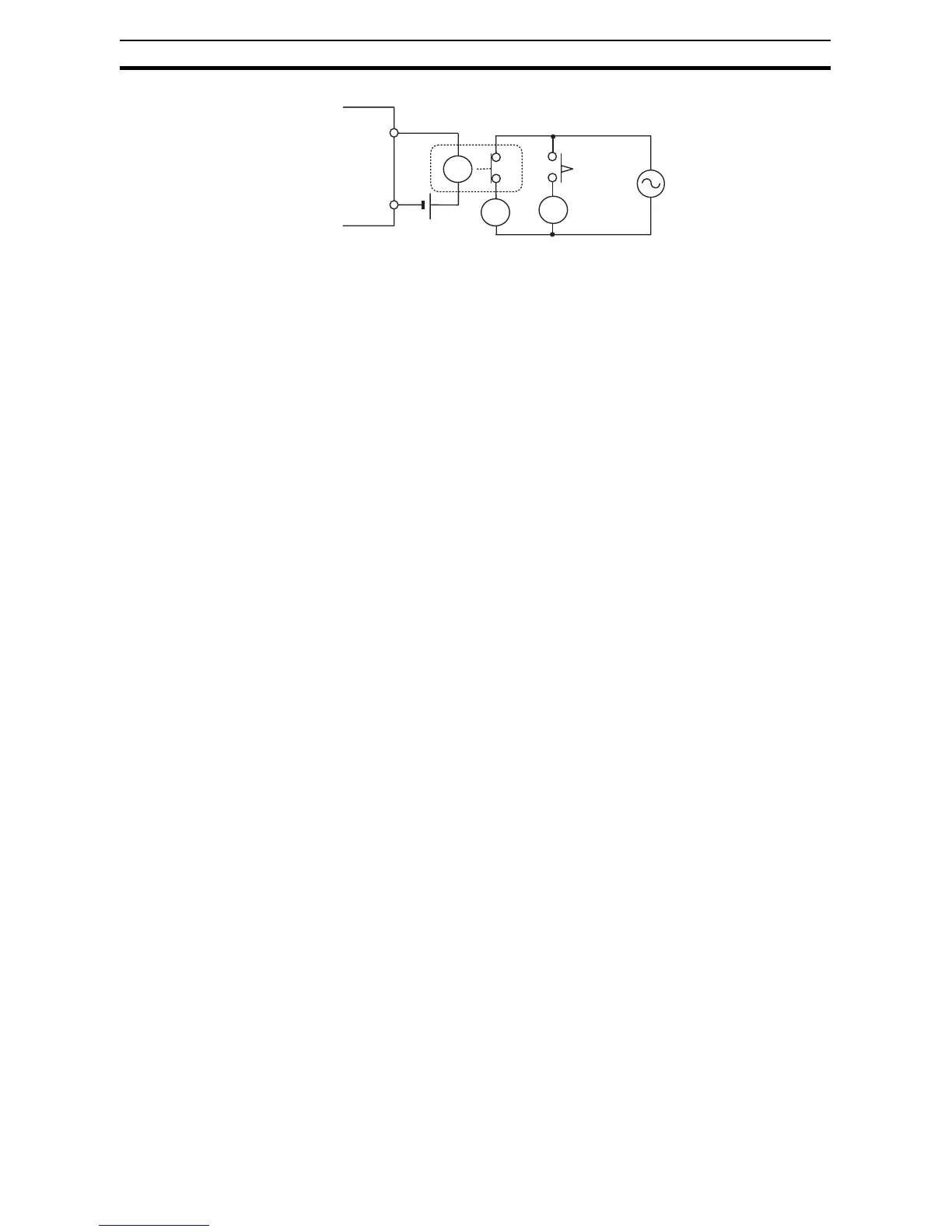

Conditions: The same current was output from all branch outputs in a con-
stant-temperature bath held at a constant temperature
TMP
COM
X
TR
TR
24 VDC
S8AS
Fan, etc.
IM
