Power Supply and Input/Output Wiring Section 3-3

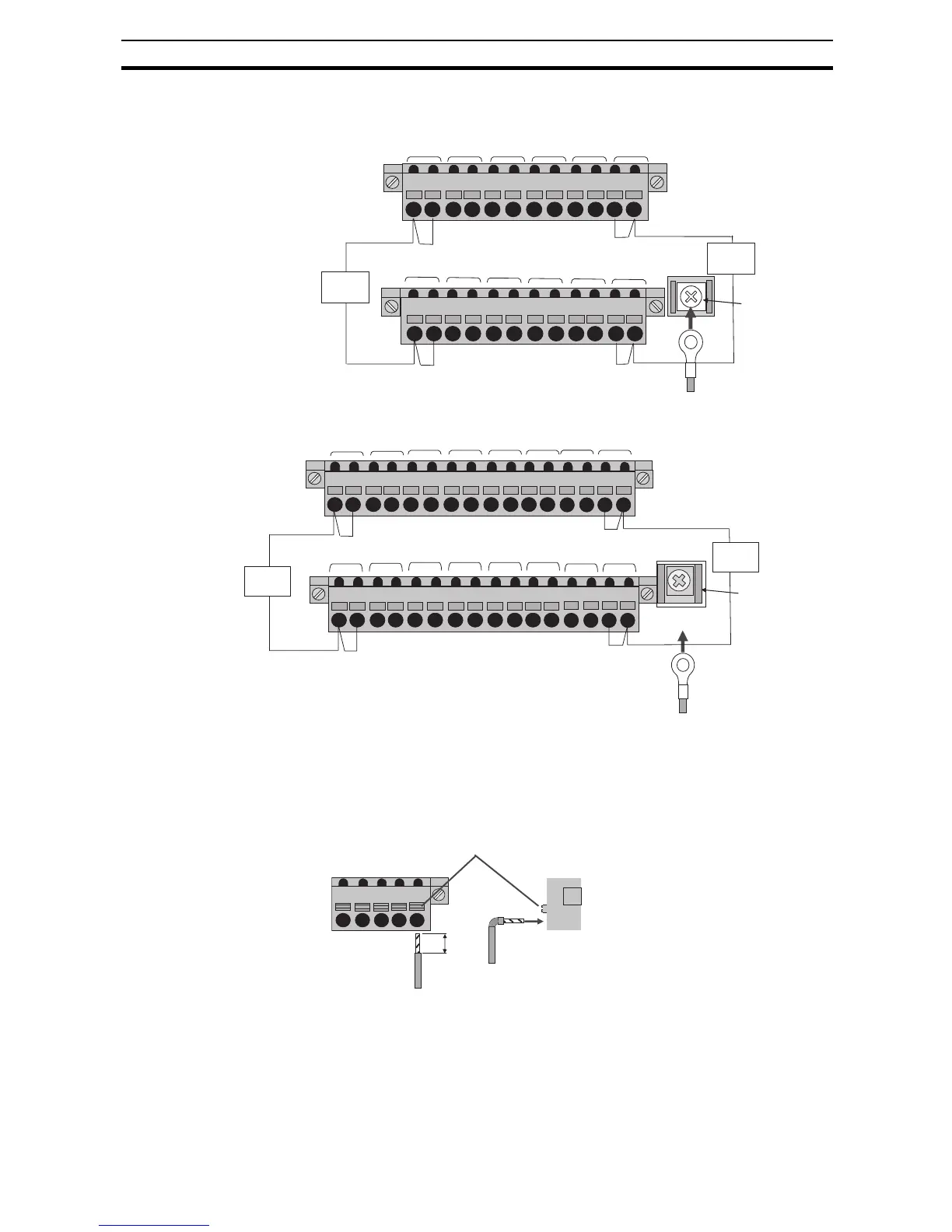

■ Wiring the Branch Output Connector

240 W

480 W

Note You may connect the positive terminals or the negative terminals of the same

branch output in parallel, but do not connect them with other branch outputs.

The lock screws on both sides of the branch output connector are loose when

shipped from the factory. Tighten them securely after you complete the wiring.

Wiring the Terminal Block

Connectors

Use a solid or stranded wire. If you are using stranded wire, twist the end

before connecting it to make a clean connection.

• Strip the wire for approximately 10 mm from the end.

• Insert a flat-blade screwdriver into the release button to release the lock.

Insert the wire into the round hole, and then release the button to lock the

wire in place.

−

Branch

output 1

Branch

circuit 1

Branch output common (−)

Branch

output 2

Branch

output 3

Branch

output 4

Branch

output 5

Branch

output 6

Branch

output 1

−

Branch

output 2

−

Branch

output 3

−

Branch

output 4

−

Branch

output 5

−

Branch

output 6

−

Branch

circuit 6

−

Branch

output 1

Branch

circuit 1

Branch output common (−)

Branch

output 2

Branch

output 3

Branch

output 4

Branch

output 5

Branch

output 6

Branch

output 1

−

Branch

output 2

−

Branch

output 3

−

Branch

output 4

−

Branch

output 5

−

Branch

output 6

−

Branch

circuit 8

Branch output

common (−)

Branch

output 7

Branch

output 8

Branch

output 7

−

Branch

output 8

−

10 mm

Release Button
