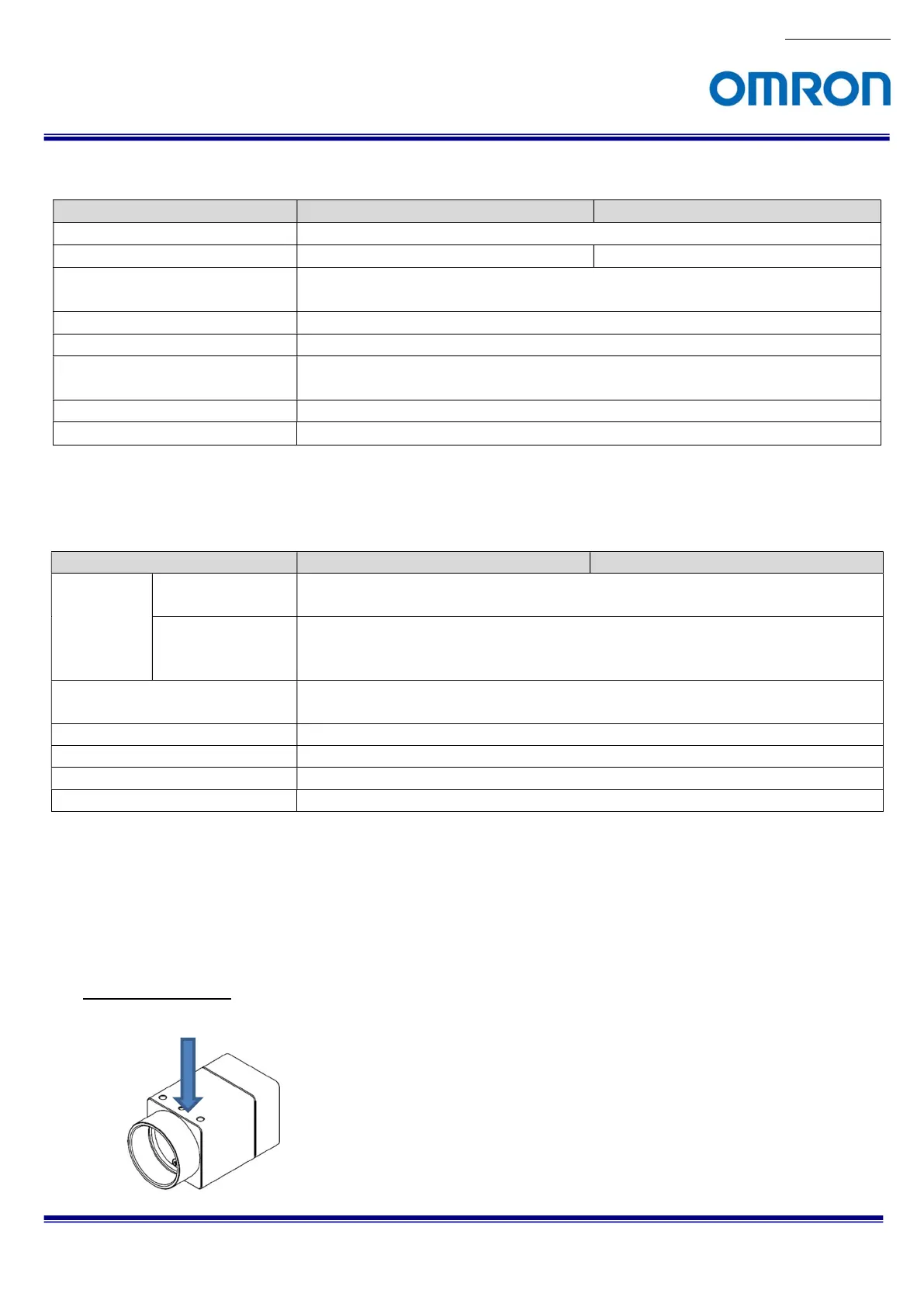

No.19S185-01
14/68
STC-MBE132POE / STC-MCE132POE
Product Specifications and User’s Guide
5.3 Mechanical Specifications
Model Number STC-MBE132POE STC-MCE132POE
Dimensions
29 (W) x 29 (H) x 53 (D) mm (*1)
Optical Filter
No Optical Filter IR Cut Filter
Optical Center Accuracy
Positional accuracy in Horizontal and Vertical directions: +/- 0.3 mm
Rotational accuracy of Horizontal and Vertical: +/- 1.5 deg.
Material
Aluminum Alloy (AC)
Lens Mount C mount
Interface Connectors
Ethernet connector: RJ45 connector
Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent
Camera Mounting Six M3 screw holes (Two on top, four on bottom plate)
Weight
Approximately 63 g
(*1) Excluding the connectors
5.4 Environmental Specifications
Model Number STC-MBE132POE STC-MCE132POE
Operational
Temperature /
Humidity
Minimum Environmental Temperature: 0 deg. C,
Environmental Humidity: 0 to 85 %RH (No condensation)
Maximum Environmental Temperature: +35 deg. C or
Camera housing temperature (top plate) shall not exceed +57 deg. C (*1)
Environmental Humidity: 0 to 85 %RH (No condensation)
Storage Temperature / Humidity Environmental Temperature: -20 to +75 deg. C,
Environmental Humidity: 0 to 85 %RH (No condensation)
Vibration 20 Hz to 200 Hz to 20 Hz (5 min. / cycle), acceleration 10 G, XYZ 3 directions, 30 min. each
Shock Acceleration 38 G, half amplitude 6 ms, XYZ 3 directions, 3 times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
RoHS RoHS Compliance
(*1) Please insure the camera is installed with the appropriate heat dissipation. If camera has a mounted lens and a tripod
with an aluminum plate, this could decrease the camera housing temperature for heat dissipation. When the internal
temperature sensor on the camera shows less than 65 deg. C, the camera housing temperature (top plate) will be less than
57 deg. C.
Taking these steps will maintain the heat rating of the electronic components of the camera.
Upper side of camera
Measuring point
