STC-MBE132POE / STC-MCE132POE
Product Specifications and User’s Guide

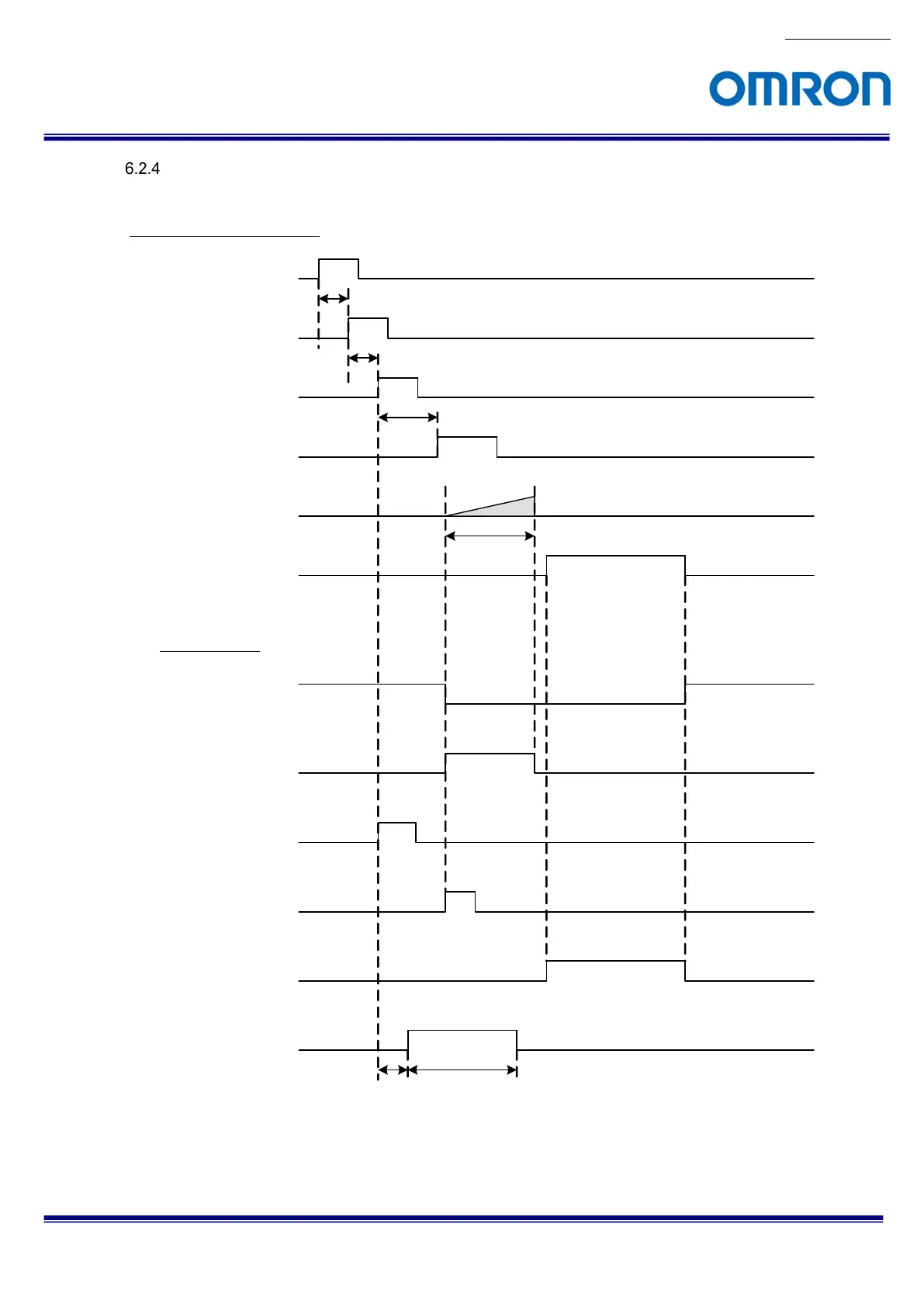

Input and Output Signal Timing (Hardware Trigger)
Case of “External Hardware Trigger”, “Timed Exposure Mode” and “Positive Edge Trigger”
External hardware
Trigger signal
Trigger delay
Exposure
Image out
Camera internal processing
Output signals
FrameTriggerWait
ExposureActive
DebounceLine0, 2
FramTriggerInternal
SensorReadOut
Timer0
Debounce
External hardware
Trigger delay
Tdelay (*1)
Parameter
“
ExposureTime
”
on GenICam
Parameter
“
LineDebounceTime
”
on GenICam
Parameter
“
TriggerDelay
”
on GenICam
Parameter
“
TimerDelay
”
on GenICam Parameter
“
TimerDuration
”
on GenICam
(*1) Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware
trigger delay”
