External Hardware Trigger Input Delay
The input trigger signal has some delay inside camera by photo coupler or transistor.
Please refers example measurement of delay in below.

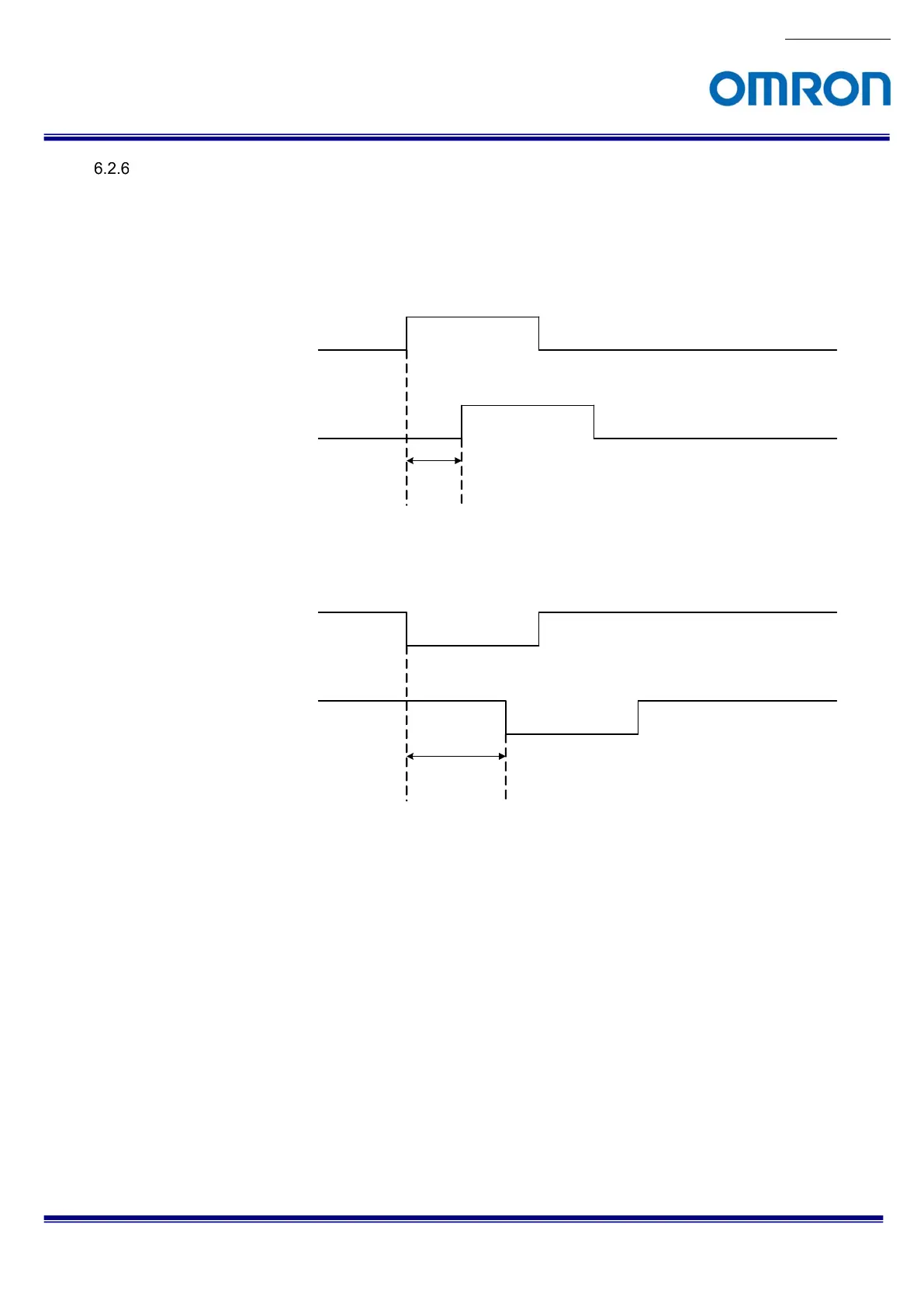

6.2.6.1 External Trigger Signal Delay (Positive polarity trigger signal)
External Trigger Signal
External Trigger Signal
with camera internal delay
Tdelay
6.2.6.2 External Trigger Signal Delay (Negative polarity trigger signal)
External Trigger Signal
External Trigger Signal
with camera internal delay
Tdelay
