8 Sensor Information

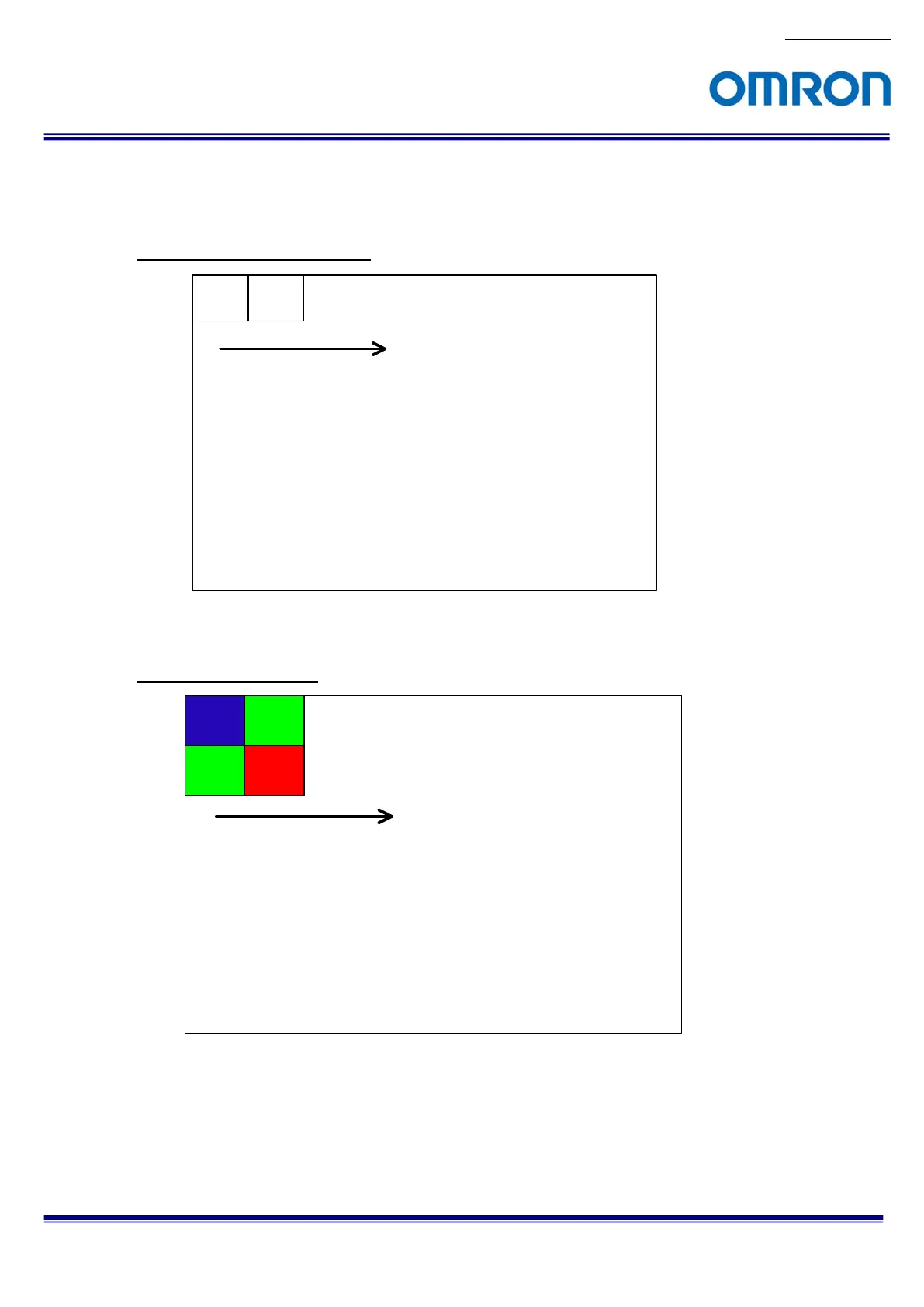

8.1 Pixel Transferring Image
STC-MBE132POE (Monochrome)
Pixel (n) of Data: nth pixel being transferred
STC-MCE132POE (Color)
Pixel 11
of Data
Pixel 12
of Data
Pixel 21
of Data
Pixel 22
of Data
Pixel (m, n) of Data: mth pixel of nth line being transferred
Pixel1 of
Data
Pixel2 of
Data
