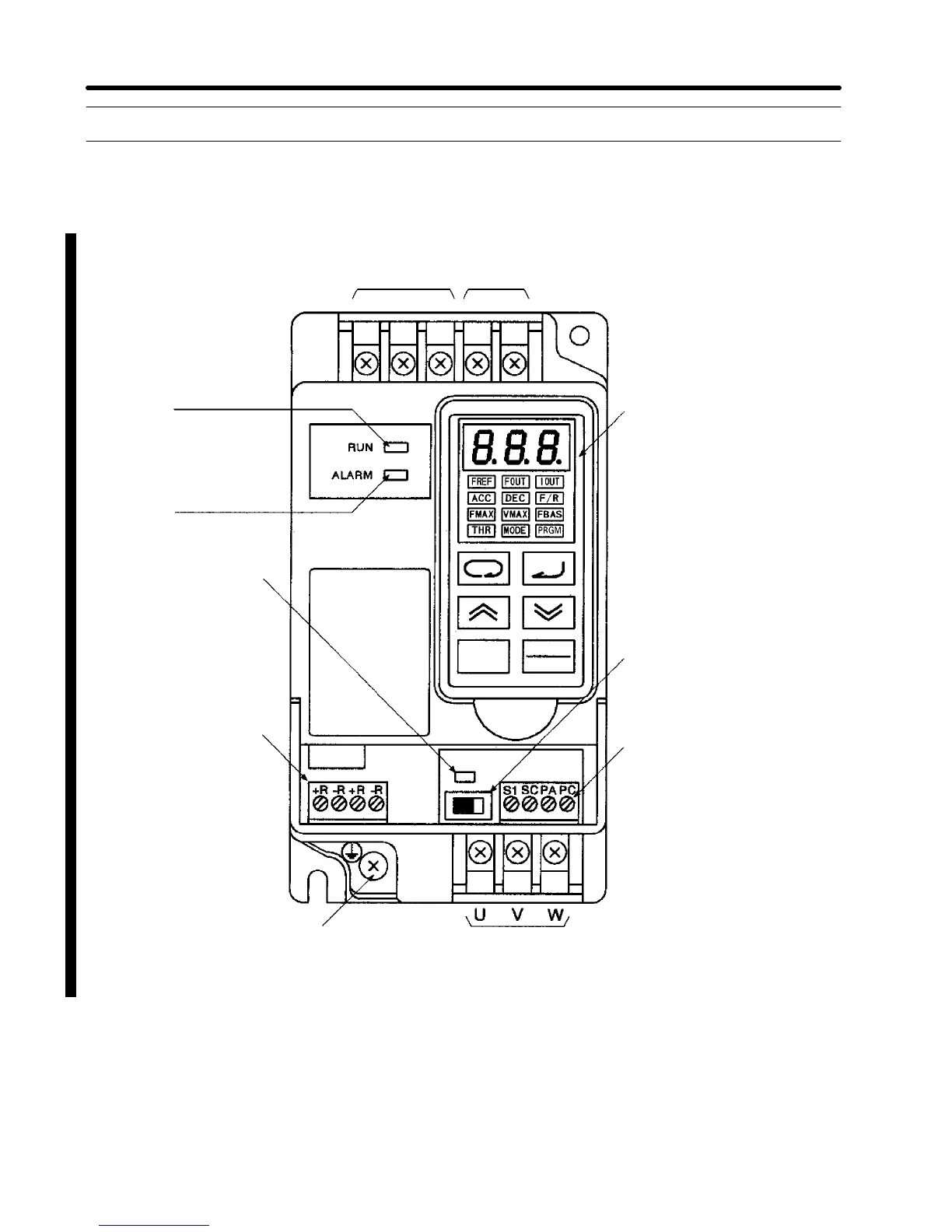

2-2 Component Names

Main Unit
Main Circuit Terminals (Input)
Power input
terminals
Braking resistor
connection terminals
Run indicator
Alarm indicator
Ground terminal
Main Circuit Terminals (Output)
Motor output
terminals
Digital Operator
Control circuit
terminals
Transmission
indicator
Transmission
terminals
End unit
setting switch
L1 N/L2 L3 B1 B2
Note
This diagram shows the Inverter with all terminal block covers removed.
