Three-phase 200-VAC Input Model
3G3EV
model
Output W H D W1 H1 Weight
(kg)
A2007R 0.75 kW
108 128
130
96 118
Approx. 1.3
A2015R 1.5 kW 155 Approx. 1.5
Single/Three-phase 200-VAC Input Model
3G3EV
model
Output W H D W1 H1 Weight
(kg)
AB004R 0.4 kW
108 128 130 96 118
Approx. 1.3
AB007R 0.75 kW Approx. 1.3

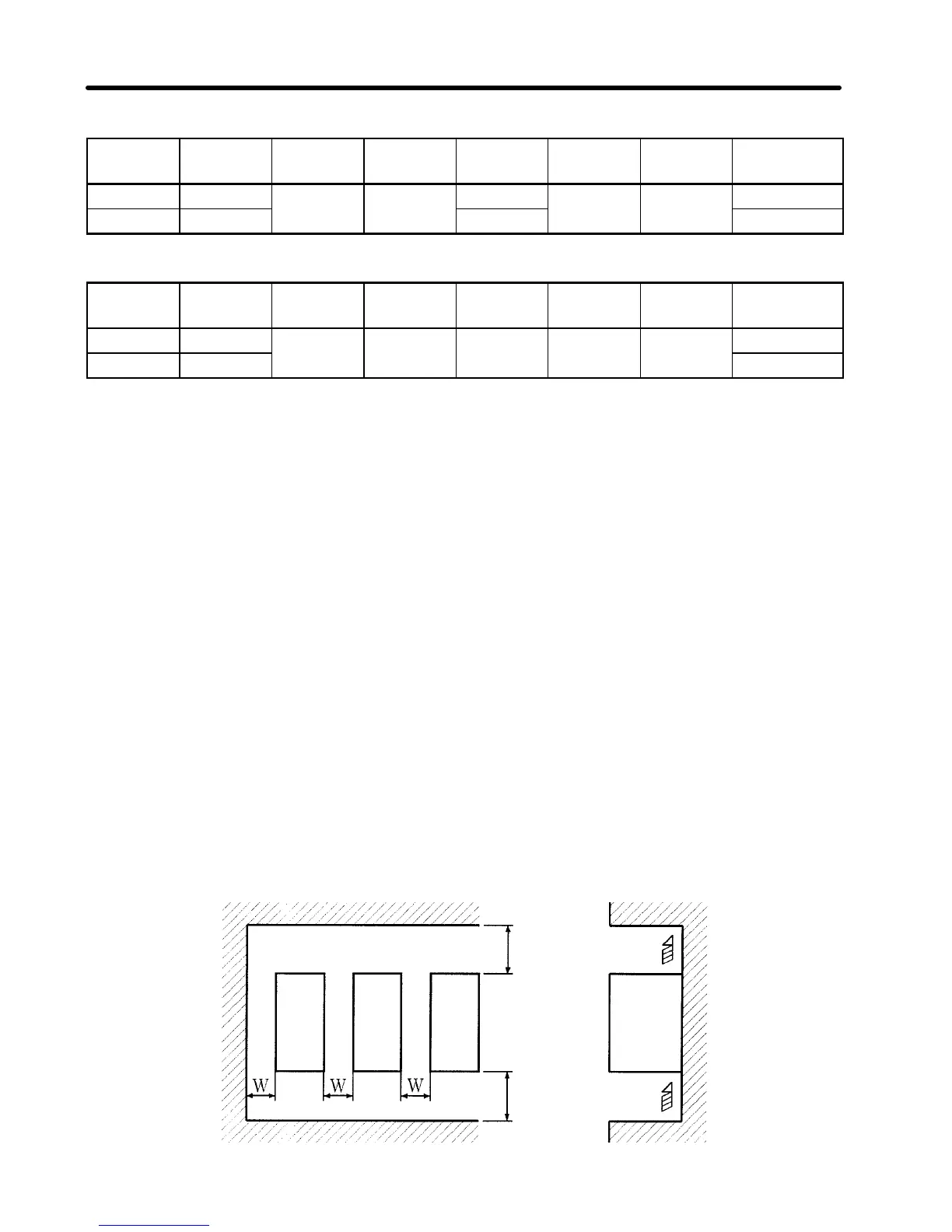

3-1-2 Installation Conditions
Installation Site
•
Install the Inverter under the following conditions:
Ambient temperature for operation: --10
°
Cto50
°
C
Humidity: 90% RH or less (non-condensing)
•
Install the Inverter in a clean location free from oil mist and dust. Alternatively, install it
in a totally enclosed panel that is completely shielded from suspended dust.
•
When installing or operating the Inverter, always take special care so that metal pow-
der, oil, water, or other foreign matter do not get in the Inverter.
•
Do not install the Inverter on inflammables such as wood.
Direction of Installation
•
Install the Inverter on a vertical surface so that the characters on the nameplate are
oriented upward.
Installation Space
•
When installing the Inverter, always provide the following installation space to allow
normal heat dissipation from the Inverter:
W= 30 mm min.
100 mm min.
100 mm min.
Air
Side
Air
Inverter
Inverter
Inverter
