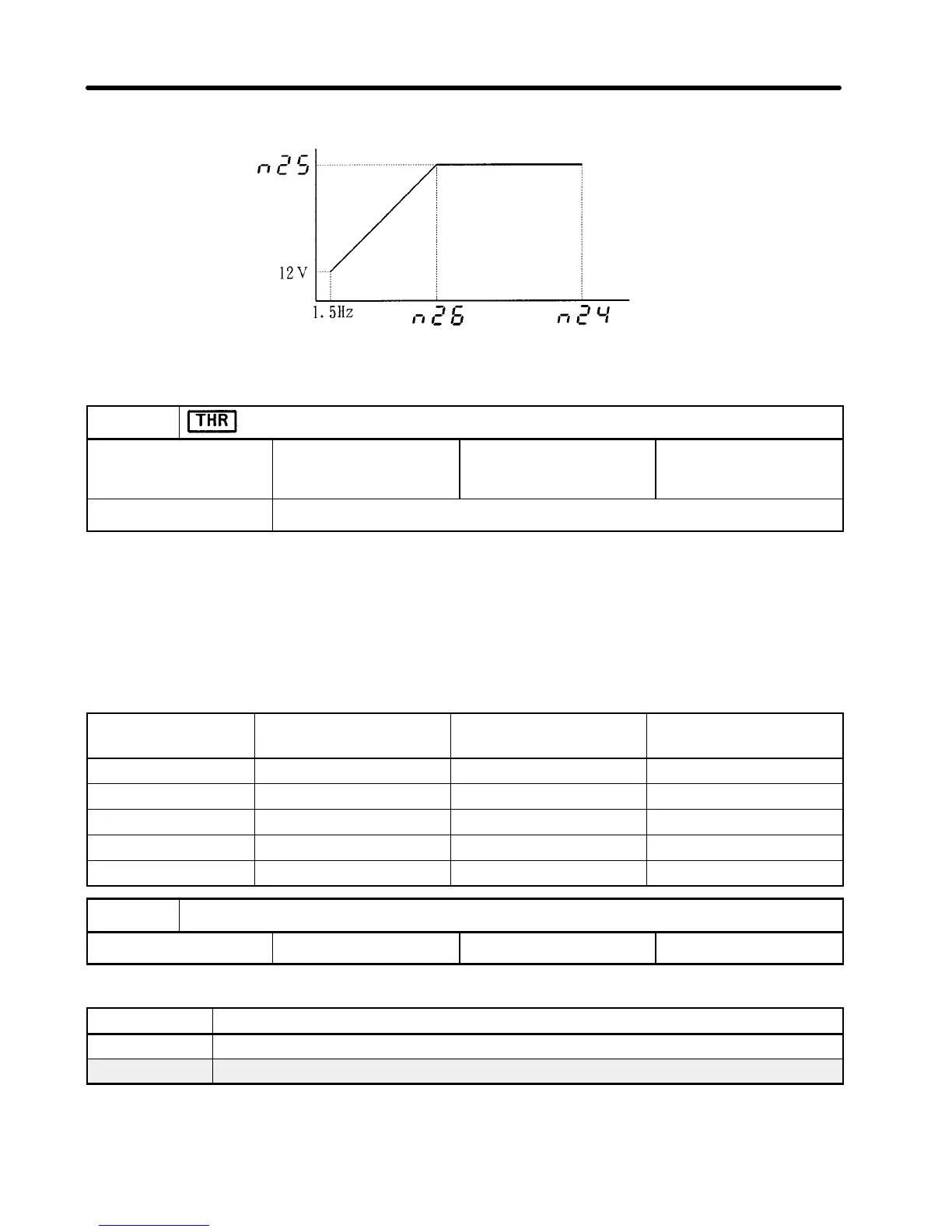

Explanation of n24, n25, and n26 Settings
Maximum voltage
Output voltage
(V)
Maximum voltage
frequency (basic
frequency)
Maximum
frequency
Output
frequency (Hz)
Electronic Thermal Reference Current
Setting range
0.0 to
(see note 1) (A)
Factory setting
See note 2
Unit of setting
0.1 (A)
•
This constant is used to set an electronic thermal reference value to protect the motor
from overheating.
Set the rated motor amperage in this constant.
•
If 0.0 is set in this constant, “no thermal protection” is assumed, so motor overload will
not be detected.
•
The setting range and factory setting for this constant are as follows:
3E3EV- Maximum applicable
motor capacity
Setting range (upper
limit) (see note 1)
Factory setting
(see note 2)
A2001R/AB001R 0.1 kW 0.9 (A) 0.6 (A)
A2002R/AB002R 0.2 kW 1.8 (A) 1.1 (A)
A2004R/AB004R 0.4 kW 3.6 (A) 1.9 (A)
A2007R/AB007R 0.75 kW 6.0 (A) 3.3 (A)
A2015R 1.5 kW 8.4 (A) 6.2 (A)
Stall Prevention during Deceleration
Setting range
0, 1
Factory setting
0
This constant is used to select the action to prevent overvoltage during deceleration.
Value Description
0 Stall prevention during deceleration
1 No stall prevention during deceleration
Note 1.
Ifabraking resistor is to be connected, always set“1” (no stall prevention during
deceleration) in this constant.
Chapter 4
