•Always separate the control signal line from the main circuit cables and other power
cables.

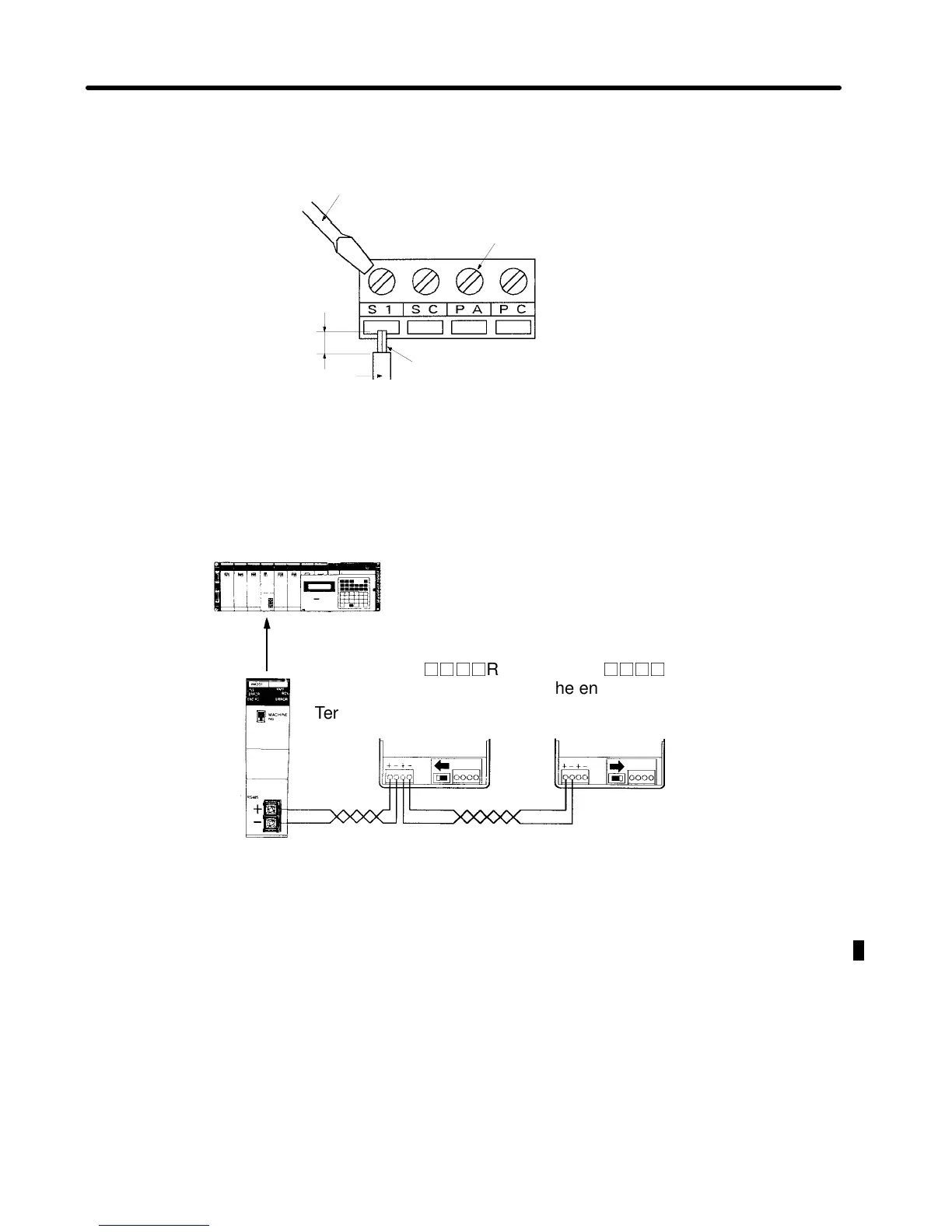

Thin-slotted screwdriver
Length of
stripped portion:
Approx. 5.5 mm
Wire
Control circuit
terminal block
Do not solder this portion.
(Otherwise, faulty contact may result.)
3-2-4 Wiring Transmission Terminals
Wire the transmission terminals (+R and --R) as described below.
Master Unit
SYSMAC
(CPU and Extended I/O Unit)
Slave Unit
3G3EV-A
R
Terminator setting: OFF Terminator setting: ON
Slave Unit
3G3EV-A
R
at the end of system
Remote I/O Master Unit Overall length 200 m or less
Wires to be Used
Cabtire cable (VCTF 0.75 mm
2
x 2C)
Chapter 3
