Switching Data Display when Inverter is Stopped

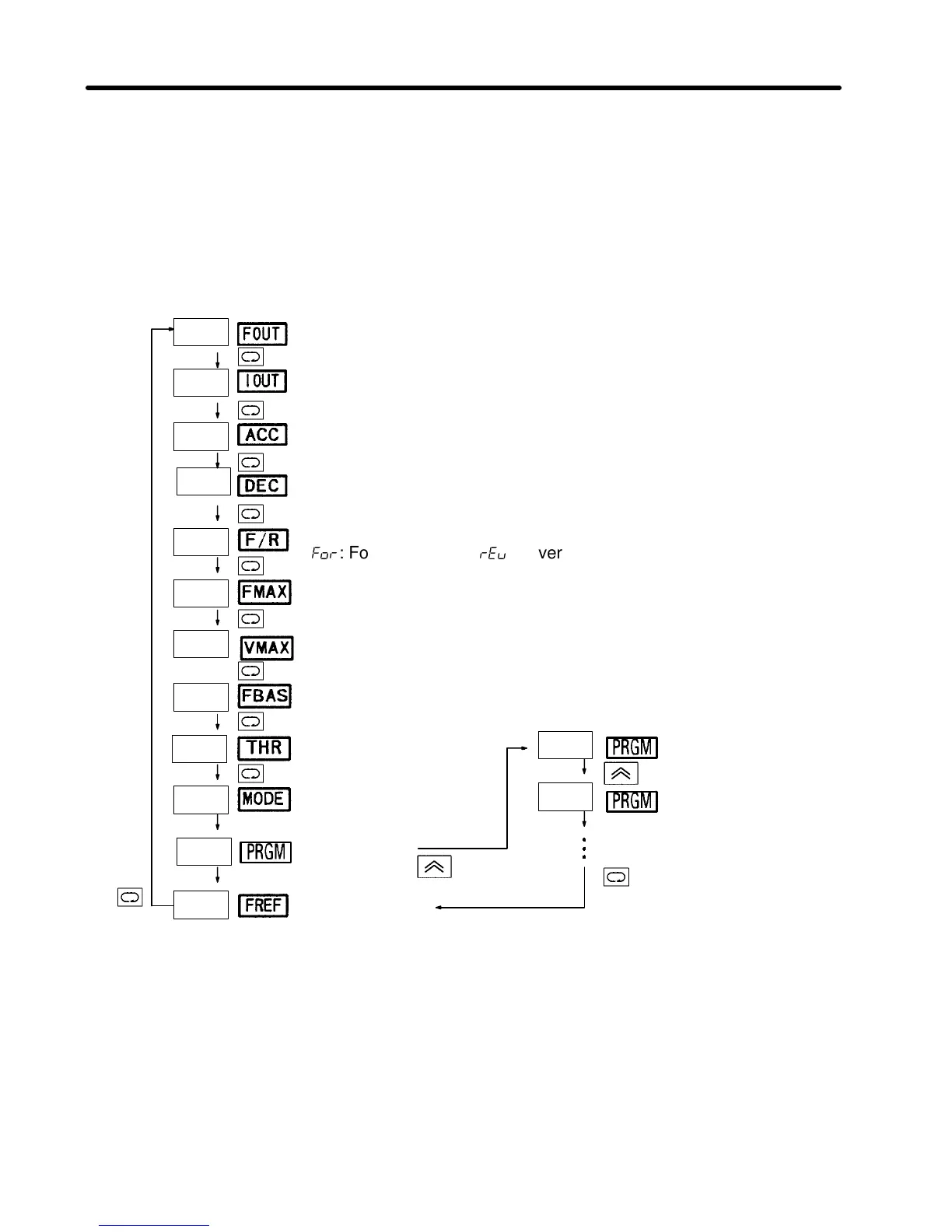

Press the Mode Key to switch data display.
When the Inverter is stopped, all items can be monitored and the constant
for each item can be set.
Example
of data
display
Indi-
cator
Description
Output frequency
monitoring (Hz)
Output current monitoring
(effective current: A)
Acceleration time
(seconds)
Deceleration time
(seconds)
Forward/Reverse rotation selection
: Forward rotation
: Reverse rotation
Maximum frequency (Hz)
Maximum voltage (V)
Maximum voltage
frequency (Hz)
Electronic thermal
reference current (A)
Operation
mode selection
Constant no.
Reference
frequency (Hz)
Note Theindicatorsdisplayed
when the power is
turned on are the same
asshown in theprevious
section “Switching Data
Display during Opera-
tion.”
