Omron SYSDRIVE 3G3JV Series User Manual

2-5
H Installation Direction and Dimensions
•Install the Inverter under the following conditions.
Ambient temperature for operation (panel-mounting): –10°C to 50°C
Humidity: 90% or less (no condensation)
•Install
the Inverter in a clean location free from oil mist and dust. Alternatively , install it
in a totally enclosed panel that is completely protected from floating dust.
•When
installing or operating the Inverter , always take special care so that metal pow -
der, oil, water, or other foreign matter does not get into the Inverter.
•Do not install the Inverter on inflammable material such as wood.
H Direction
•Install the Inverter on a vertical surface so that the characters on the nameplate are
oriented
upward.

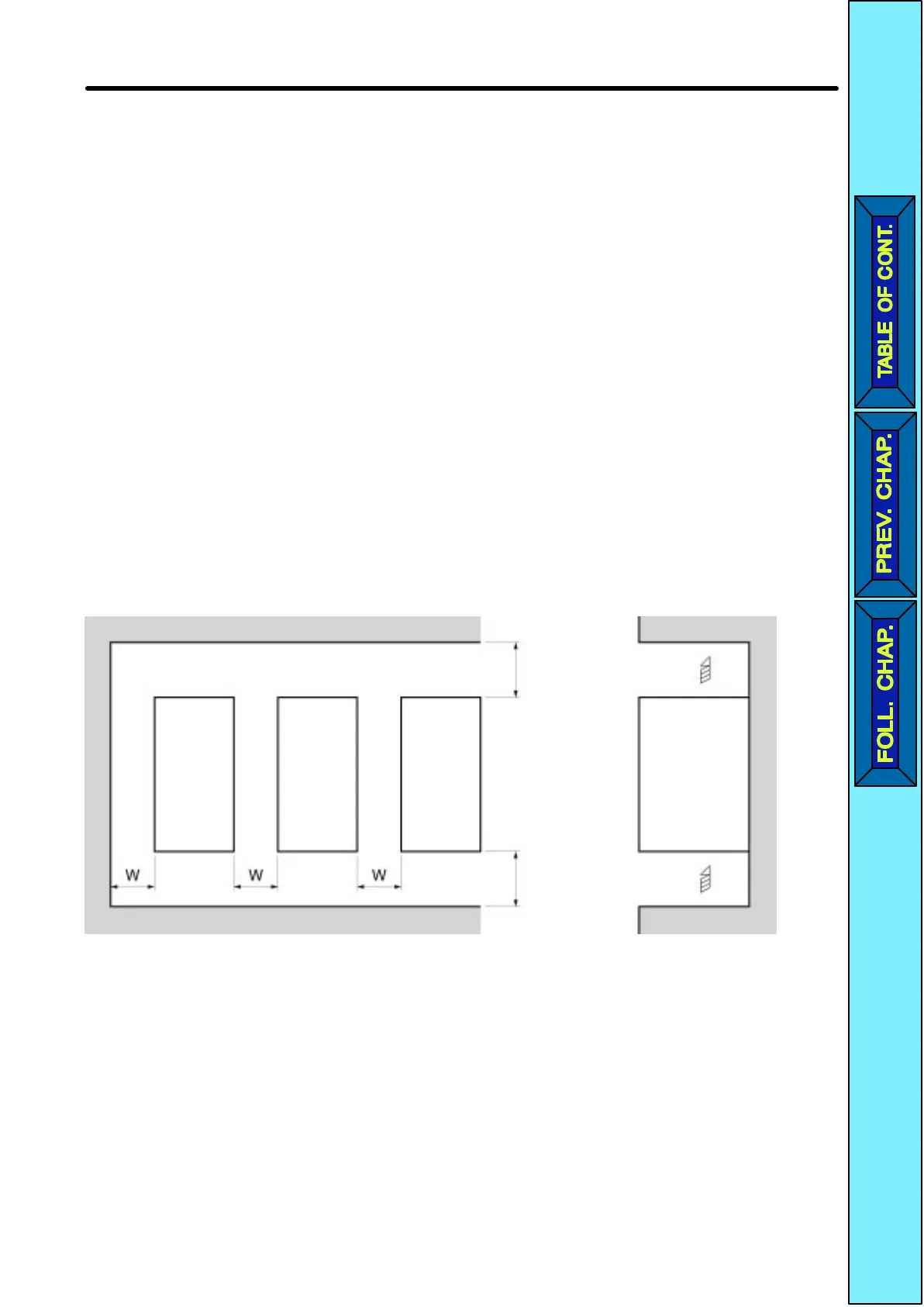

H Dimensions
•When installing the Inverter , always provide the following clearances to allow normal
heat dissipation from the Inverter.
W = 30 mm min.
Inverter
100 mm min. Air
SideInverter Inverter
100 mm min. Air
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
