Omron SYSDRIVE 3G3JV Series User Manual

2-23

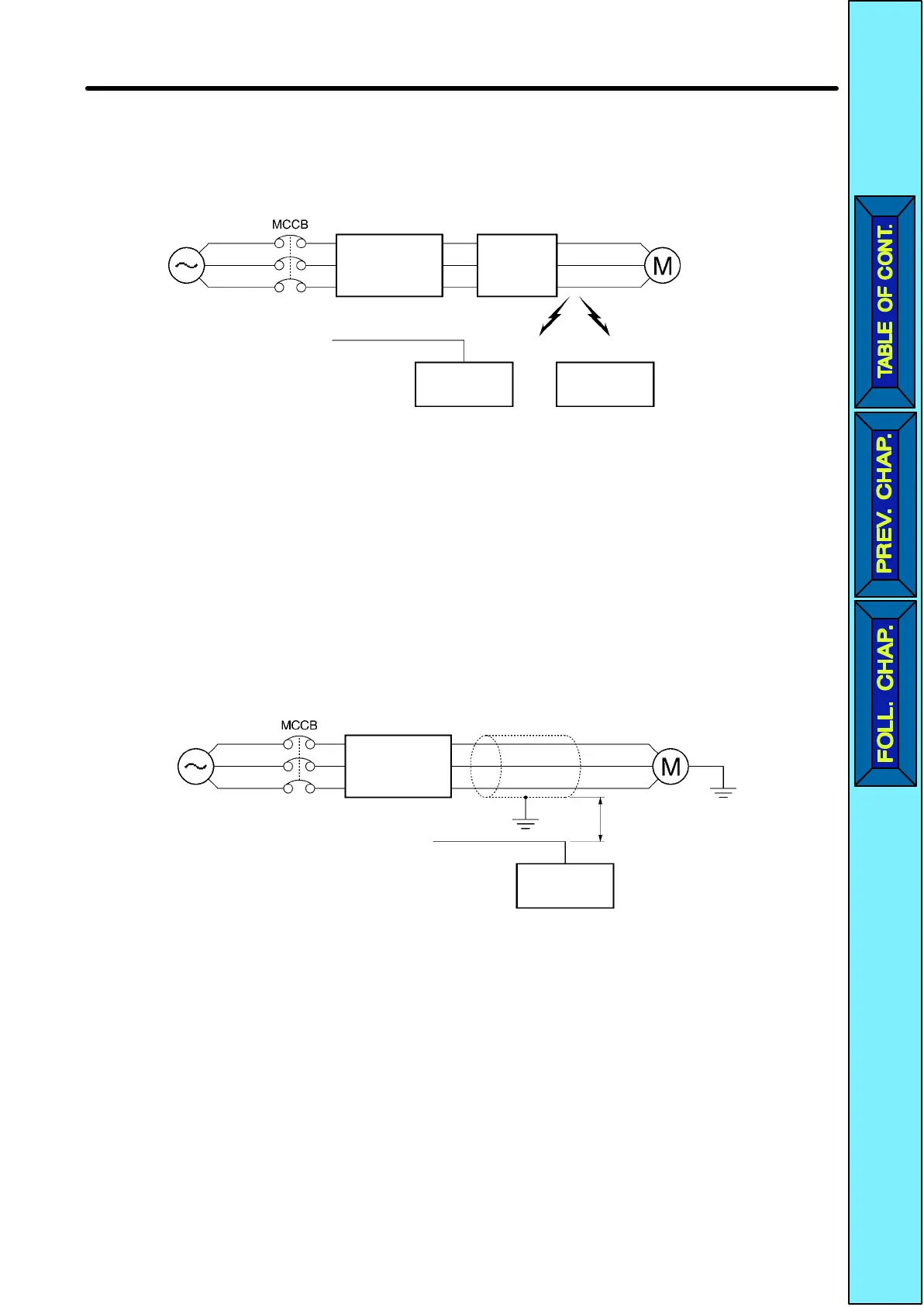

D Installing a Noise Filter on the Output Side
Connect a Noise Filter to the output side of the Inverter to reduce radio noise and induc -
tion noise.
Power
supply
3G3JV
SYSDRIVE
3G3IV-PLF
Noise
Filter
Signal line
Induction noise Radio noise
Controller
AM radio
Induction Noise: Electromagnetic induction generates noise on the signal line, caus -
ing the controller to malfunction.
Radio Noise: Electromagnetic waves from the Inverter and cables cause the
broadcasting radio receiver to make noise.
D Countermeasures against Induction Noise
As described previously , a Noise Filter can be used to prevent induction noise from be -
ing generated on the output side. Alternatively, cables can be routed through a
grounded
metal pipe to prevent induction noise. Keeping the metal pipe at least 30 cm
away from the signal line considerably reduces induction noise.
Power supply
3G3JV
SYSDRIVE
Metal pipe
30 cm min.
Signal line
Controller
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
