2-24

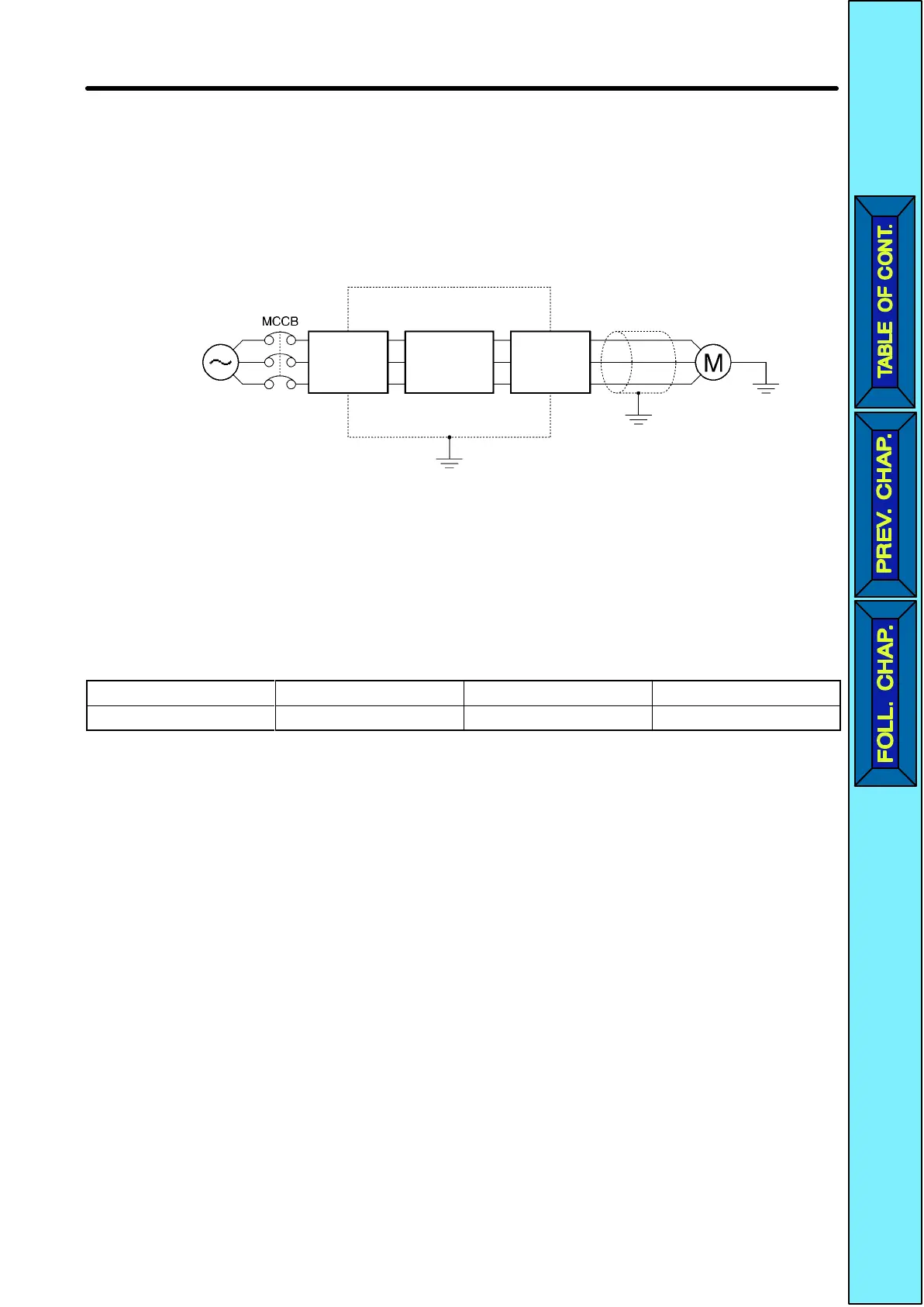

D Countermeasures against Radio Interference
Radio noise is generated from the Inverter as well as the input and output lines. T o re -
duce
radio noise, install Noise Filters on both input and output sides, and also install the
Inverter in a totally enclosed steel box.
The cable between the Inverter and the motor should be as short as possible.
Power supply
Noise
Filter
Steel box
3G3JV
SYSDRIVE
Metal pipe
Noise
Filter
D Cable Length between Inverter and Motor
If the cable between the Inverter and the motor is long, the high-frequency leakage cur -
rent
will increase, causing the Inverter output current to increase as well. This may af fect
peripheral devices.
To
prevent this, adjust the carrier frequency (set in n46) as shown in the table below . For
details, refer to the parameter settings.
Cable length 50 m max. 100 m max. More than 100 m
Carrier frequency 15 kHz max. 10 kHz max. 5 kHz max.
Design Chapter 2

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
