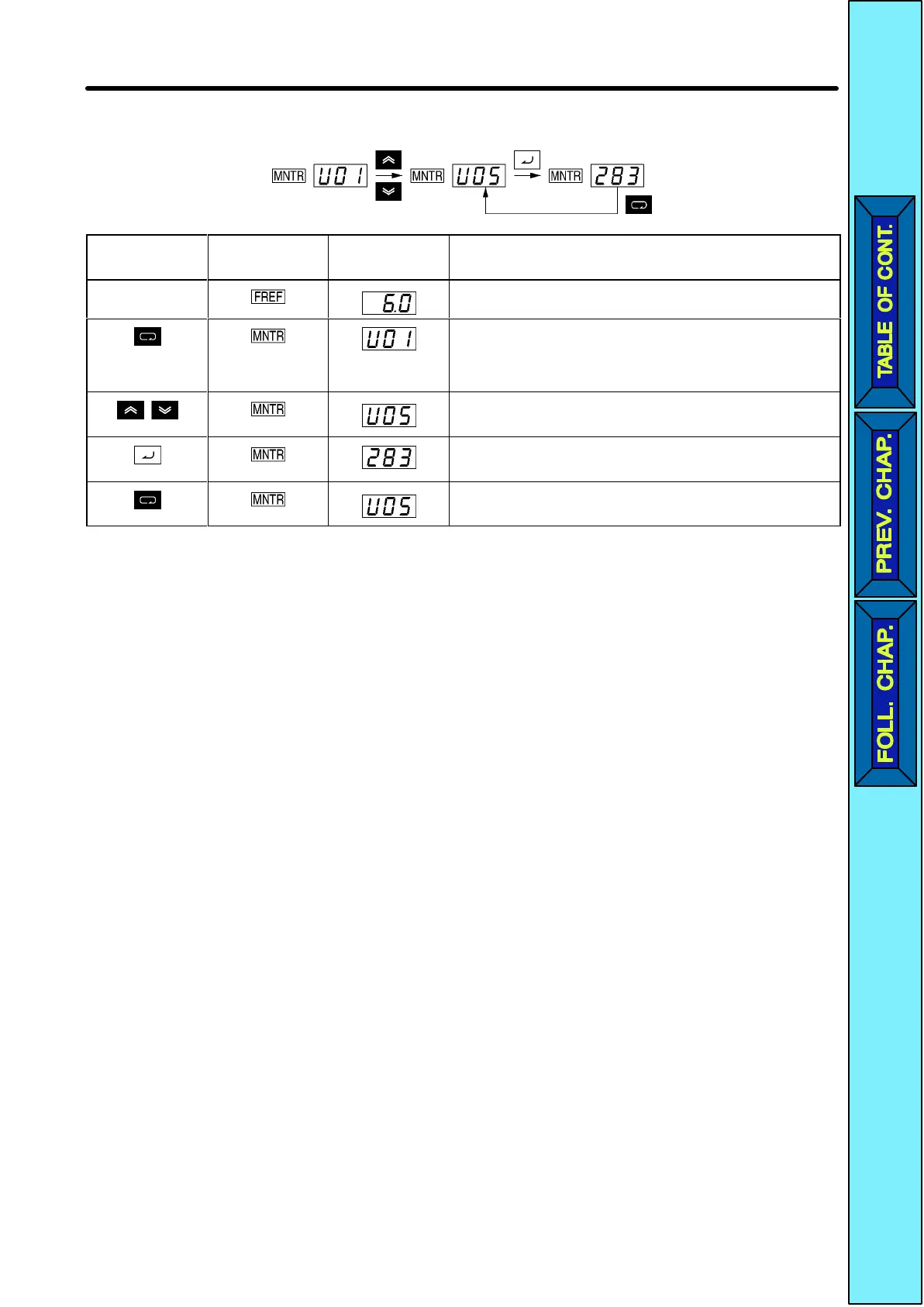

H Example of Multi-function Display
Key
sequence
Indicator Display Explanation
Power On
Press the Mode Key repeatedly until the
MNTR indicator is lit.
U01 will be displayed.
Use the Increment or Decrement Key to
select the monitor item to be displayed.
Press the Enter Key so that the data of the
selected monitor item will be displayed.
The monitor number display will appear again
by pressing the Mode Key.
Preparing for Operation and Monitoring Chapter 3

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
