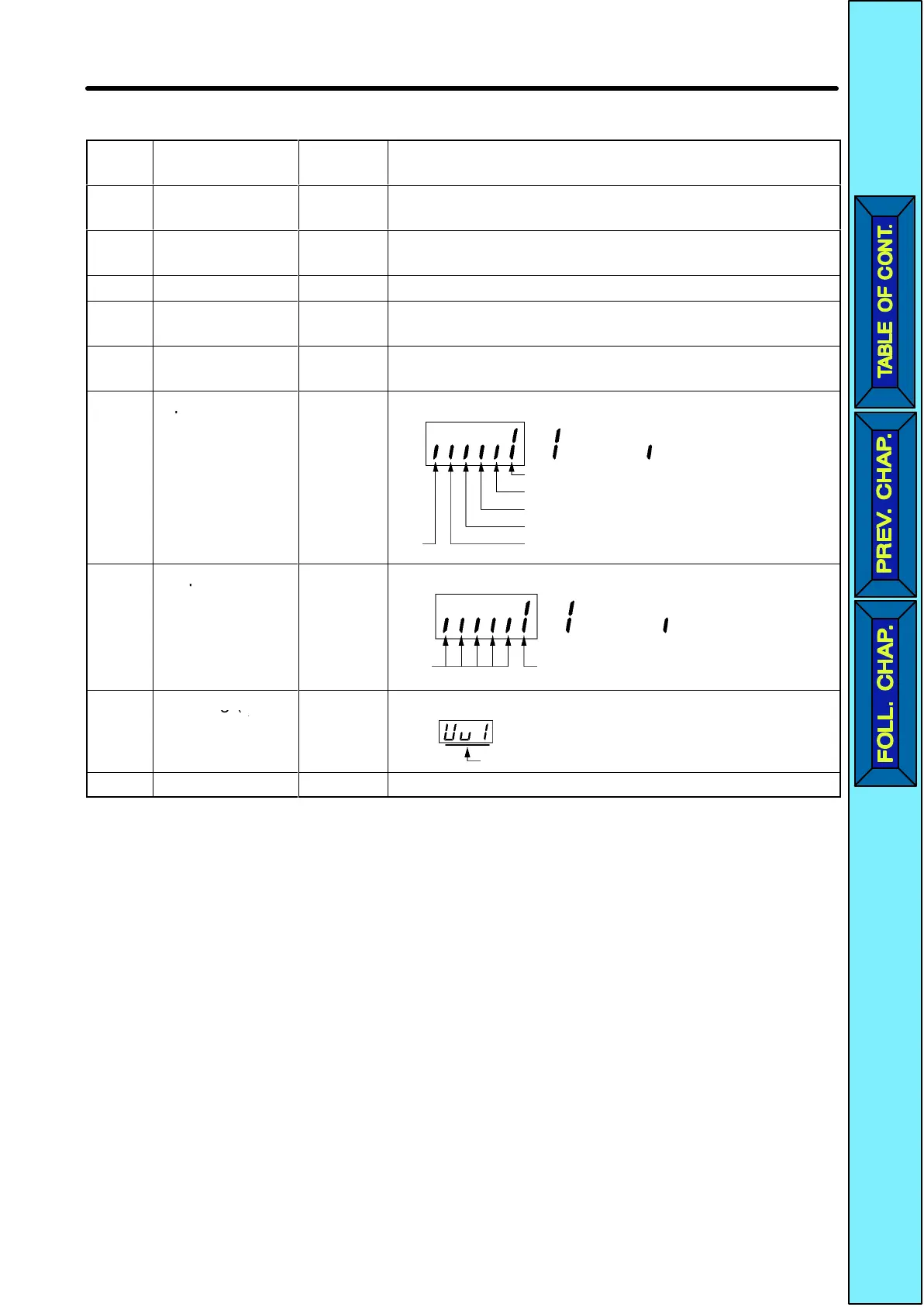

D Status Monitor
Item Display Display
unit
Function
U01 Frequency
reference
Hz Monitors the frequency reference. (Same as FREF)
U02 Output
frequency
Hz Monitors the output frequency. (Same as FOUT)
U03 Output current A Monitors the output current. (Same as IOUT)
U04 Output voltage V Monitors the internal output voltage reference value
of the Inverter.
U05 DC bus voltage V Monitors the DC voltage of the internal main circuit of
the Inverter.
U06 Input terminal
tt
---
Shows the ON/OFF status of inputs.
U06
put te a
status
: Input ON : No input
Not
used
Terminal S1: Forward/Stop
Terminal S2: Multi-function input 1 (S2)
Terminal S3: Multi-function input 2 (S3)
Terminal S4: Multi-function input 3 (S4)
Terminal S5: Multi-function input 4 (S5)
U07 Output terminal ---
Shows the ON/OFF status of outputs.
U0
Output te a
status
: Closed : Open
Not
used
Terminal MA: Multi-function
contact output
U09 Error log (most
t)
---
Displays the latest error.
U09
o og ( ost
recent one)
Error
U10 Software No. --- OMRON use only.
Preparing for Operation and Monitoring Chapter 3

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
