Omron SYSDRIVE 3G3JV Series User Manual

3-8

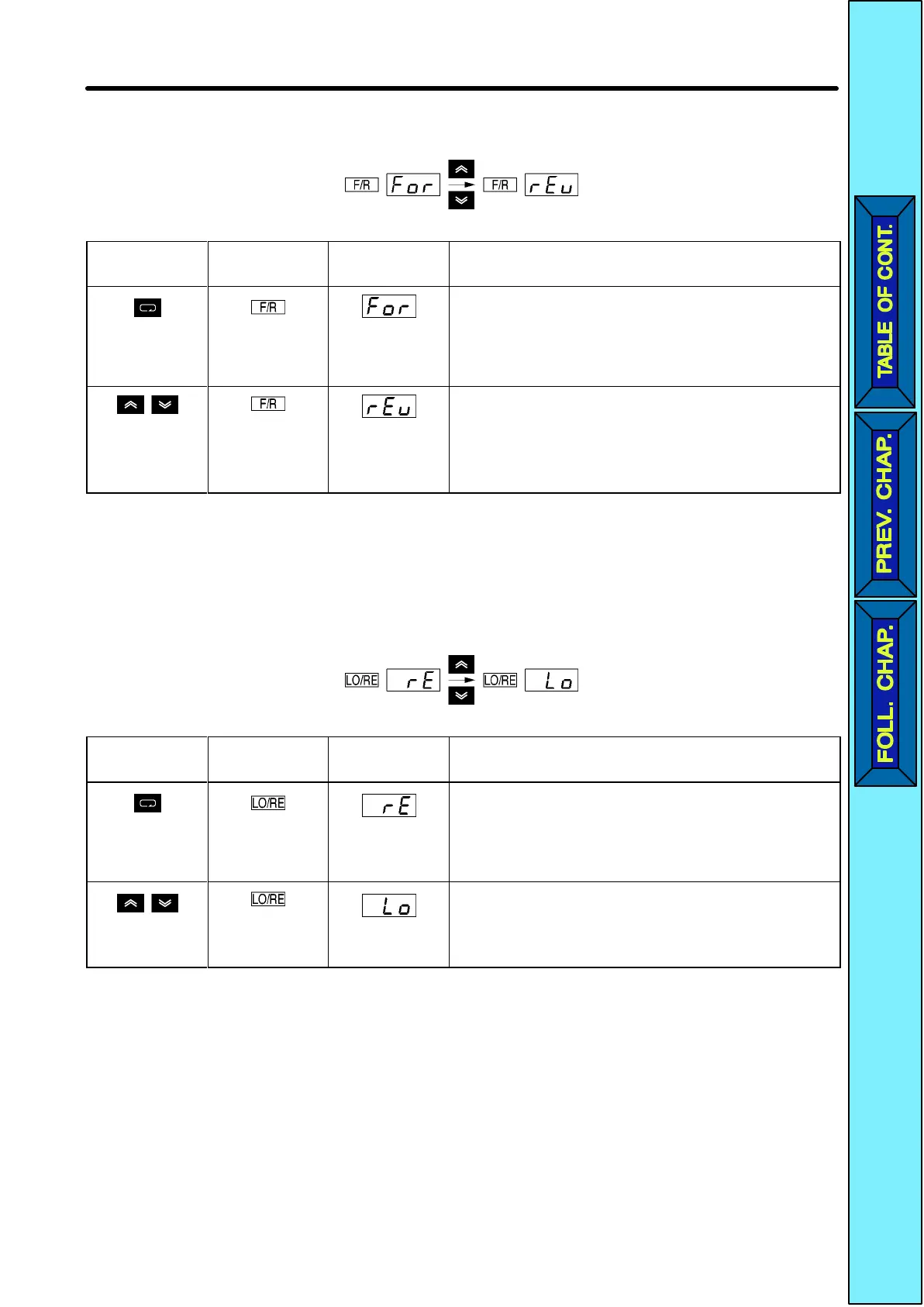

H Example of Forward/Reverse Selection Settings
Key
sequence
Indicator Display
example
Explanation
Press the Mode Key repeatedly until the F/R
indicator is lit.
The present setting will be displayed.
For: Forward; rEv: Reverse
Use the Increment or Decrement Key to
change the direction of motor rotation. The
direction of motor rotation selected will be
enabled when the display changes after the
key is pressed.
Note The direction of motor rotation can be changed, even during operation.
H Example of Local/Remote Selection Settings
Key
sequence
Indicator Display
example
Explanation
Press the Mode Key repeatedly until the
LO/RE indicator is lit.
The present setting will be displayed.
rE: Remote; Lo: Local
Use the Increment or Decrement Key to set
the Inverter to local or remote mode. The
selection will be enabled when the display
changes after the key is pressed.
Note 1. Local or remote selection is possible only when the Inverter is not in operation.
The present setting can be monitored when the Inverter is in operation.
Note 2. Local or remote settings in multi-function input terminals can be changed
through the multi-function input terminals only.
Note 3. Any RUN command input will be ignored while the LO/RE indicator is lit.
Preparing for Operation and Monitoring Chapter 3

Omron SYSDRIVE 3G3JV Series Specifications

General

Model	SYSDRIVE 3G3JV Series
Category	Inverter
Output Frequency Range	0.1 to 400Hz
Frequency Range	50/60Hz
Control Method	PWM Control
Overload Capacity	150% for 1 minute
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooling
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20°C to +65°C
Humidity	90% RH or less (non-condensing)
Altitude	1000m or less
Vibration	5.9 m/s² or less
Braking Unit	Built-in
Communication	RS-485
Voltage Class	200V class, 400V class
Input Voltage	3-phase 200 to 240V AC, 3-phase 380 to 480V AC
