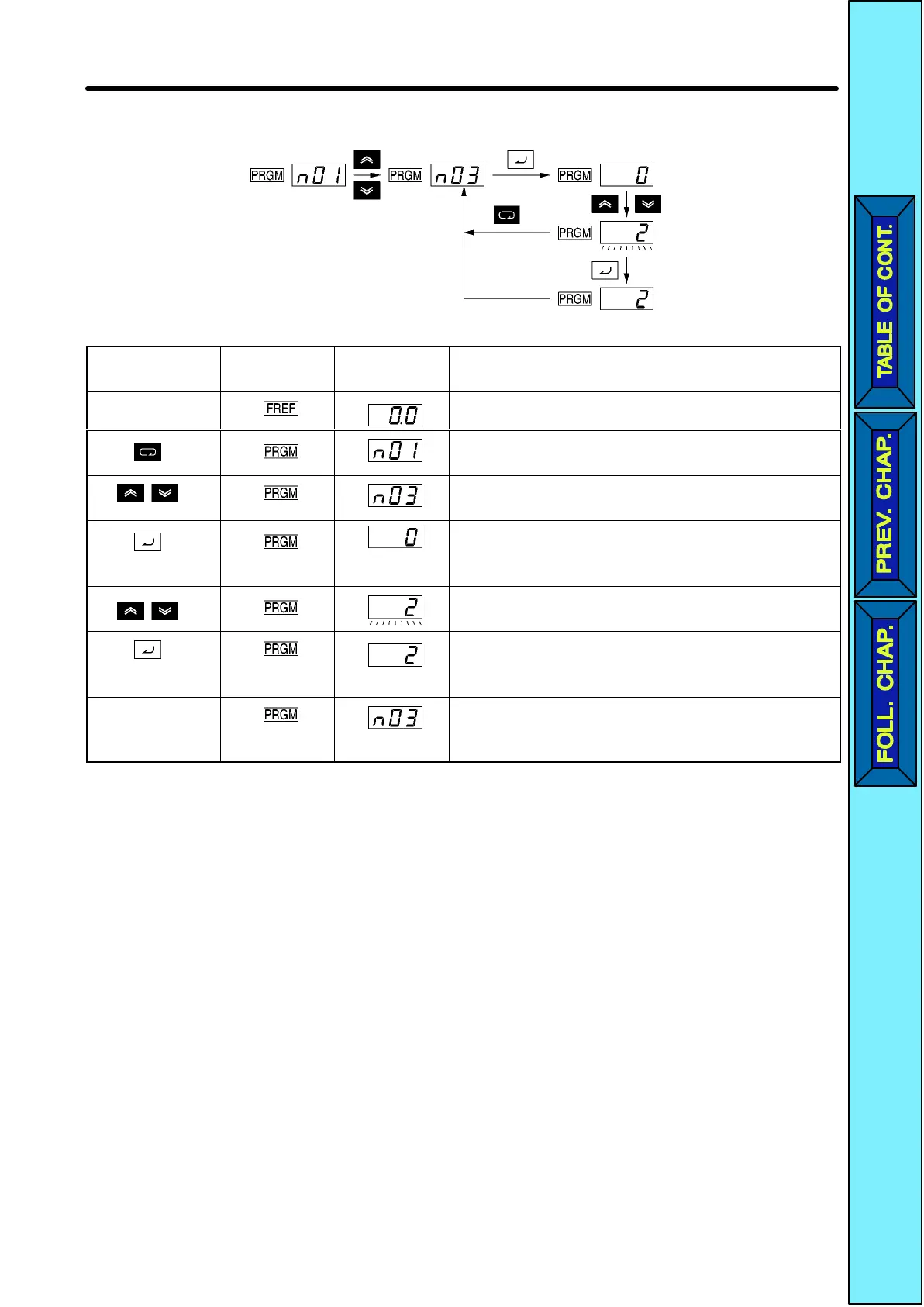

H Example of Parameter Settings
Cancels set data.
In approximately 1 s.
Key
sequence
Indicator Display
example
Explanation
Power On
Press the Mode Key repeatedly until the
PRGM indicator is lit.
Use the Increment or Decrement Key to set
the parameter number.
Press the Enter Key.
The data of the selected parameter number
will be displayed.
Use the Increment or Decrement Key to set
the data. At that time the display will flash.
Press the Enter Key so that the set value will
be entered and the data display will be lit.
(see note 1)
In
approximately
1 s.
The parameter number will be displayed.
Note 1. To cancel the set value, press the Mode Key instead. The parameter number
will be displayed.
Note 2. There
are parameters that cannot be changed while the Inverter is in operation.
Refer to the list of parameters. When attempting to change such parameters,
the data display will not change by pressing the Increment or Decrement Key .
Preparing for Operation and Monitoring Chapter 3
