26

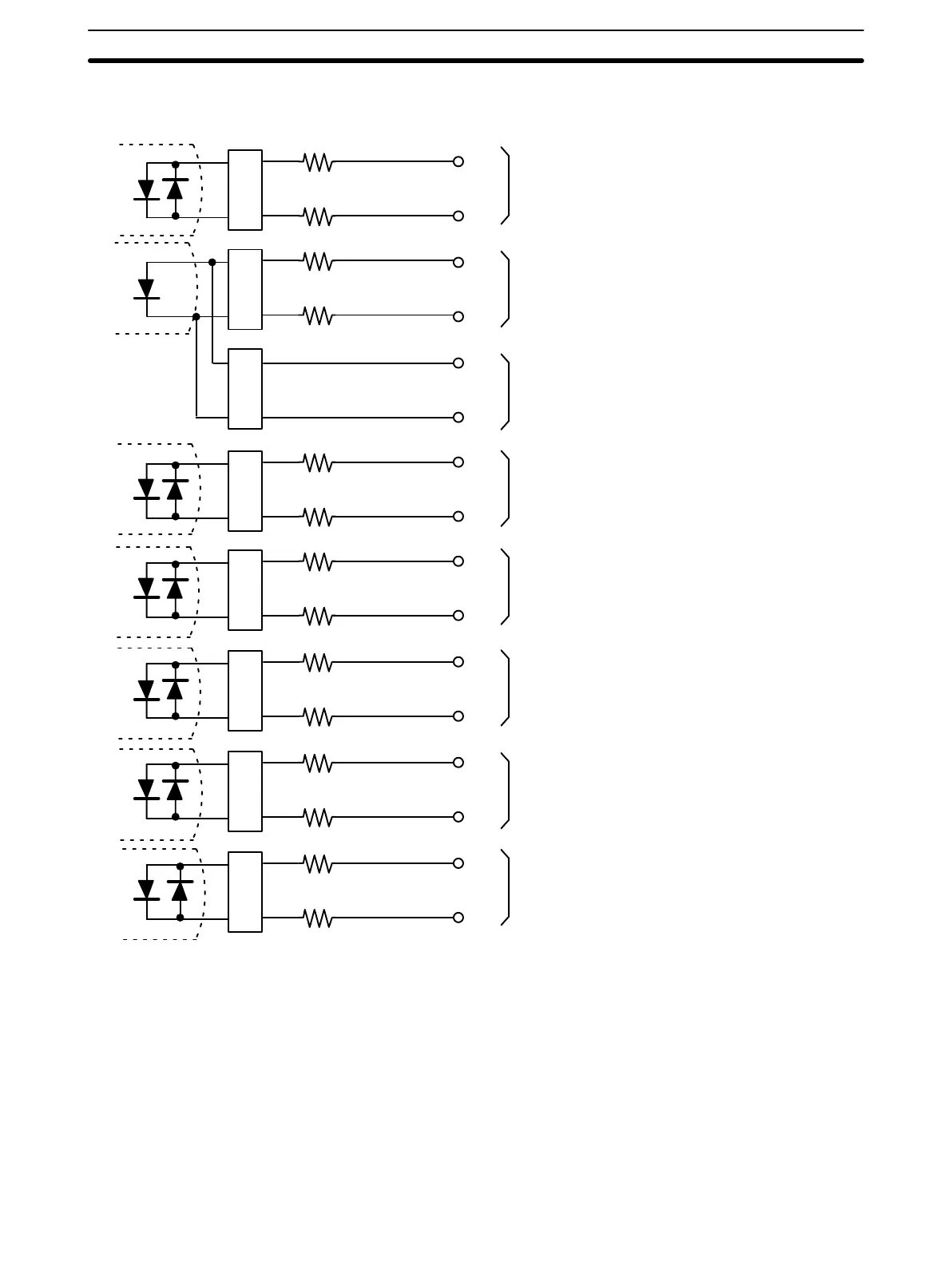

Inputs
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
1 kΩ
A10
B10
A11
B11
A8
B8
A9
B9
A12
B12
A13
B13
A19
B19
A20
B20
Origin line driver input
(corresponds to line driv-
er output)
End of positioning input
CCW limit input (NC input)
CW limit input (NC input)
External interrupt
input (NO contact)
Emergency stop input
(NC input)
(12 to 24 VDC)
(0 V)
(12 to 24 VDC)
(0 V)
(+Z)
(–Z)
(12 to 24 VDC)
(0 V)
(12 to 24 VDC)
(0 V)
(12 to 24 VDC)
(12 to 24 VDC)
(12 to 24 VDC)
(0 V)
(0 V)
(0 V)
Origin input
(Select either NO or NC
inputs via the back-panel
DIP switch.)
Origin proximity input
(Select either NO or NC
inputs via the back-panel
DIP switch.)
All inputs except the origin line driver input have independent grounds (com-
mons) and are bi-directional.
Origin Inputs (A11, B11), (A8, B8)
Mode 0 response time: 1.0 ms. Use origin input (A11, B11).
Modes 1,2 response time: 0.1 ms. Use origin line input (A8, B8).
Caution Origin input should be either (A11,B11) or (A8, B8). Never connect both at
the same time; doing so may result in damage to the internal circuit.
Wiring Section 2–2
