Crocus CNV Installing and connecting the Crocus CNV
User manual 17
2.5.4 Inserting the DTE interface in the Table Top
At the back of the TT, an empty slot is provided in which you can insert the desired DTE interface module
without opening the housing.
To insert the DTE interface in the TT, proceed as follows:
Step Action
1 Gently slide the DTE interface on the two inner slides into the empty slot.

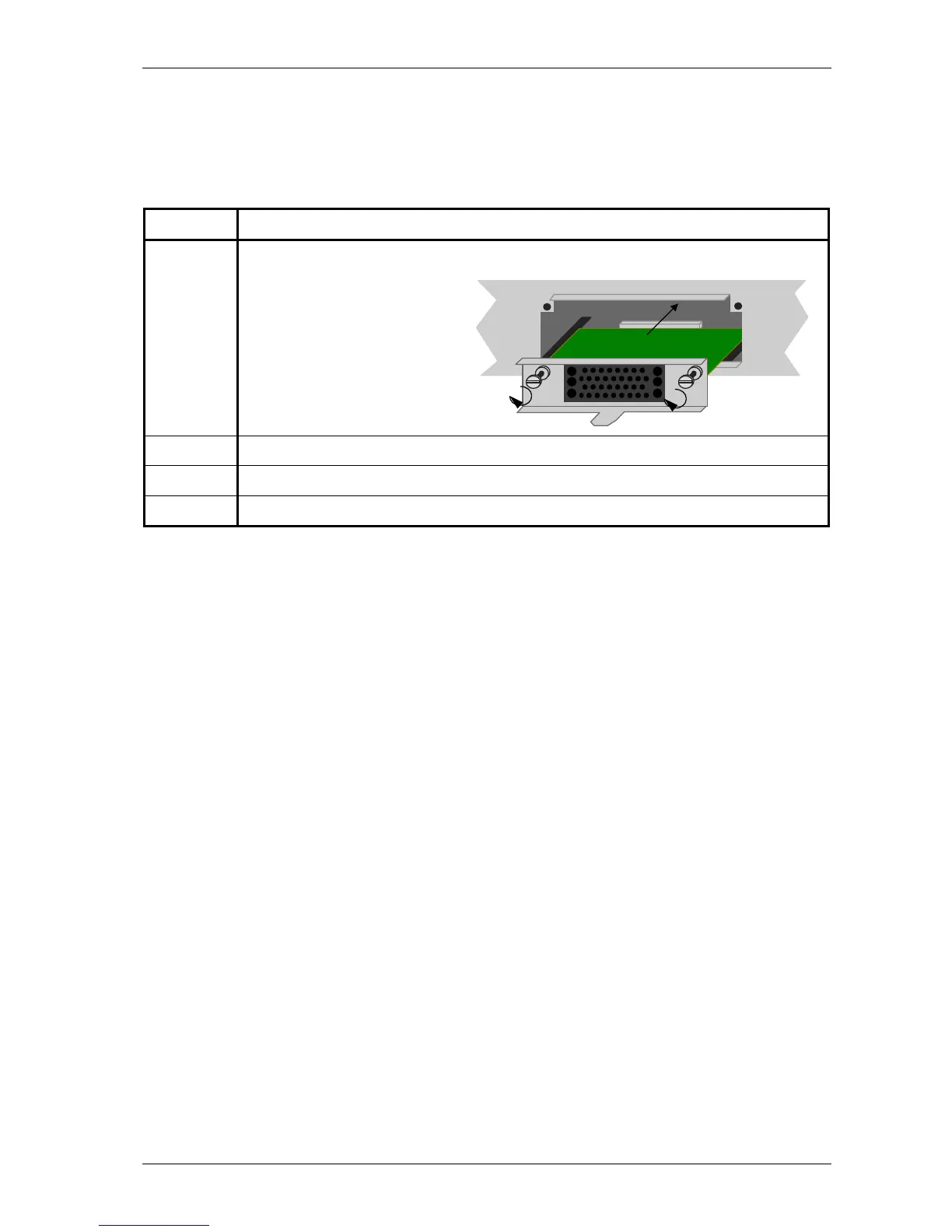

The following figure shows this
procedure:
2 When nearly inserted, press tight.
3 Lock both screws.
4 When the DTE interface is present, connect the application.
