DIP switches and straps of the Crocus CNV Crocus CNV
38 User manual
3.2.2 Location of the straps on the Card Version

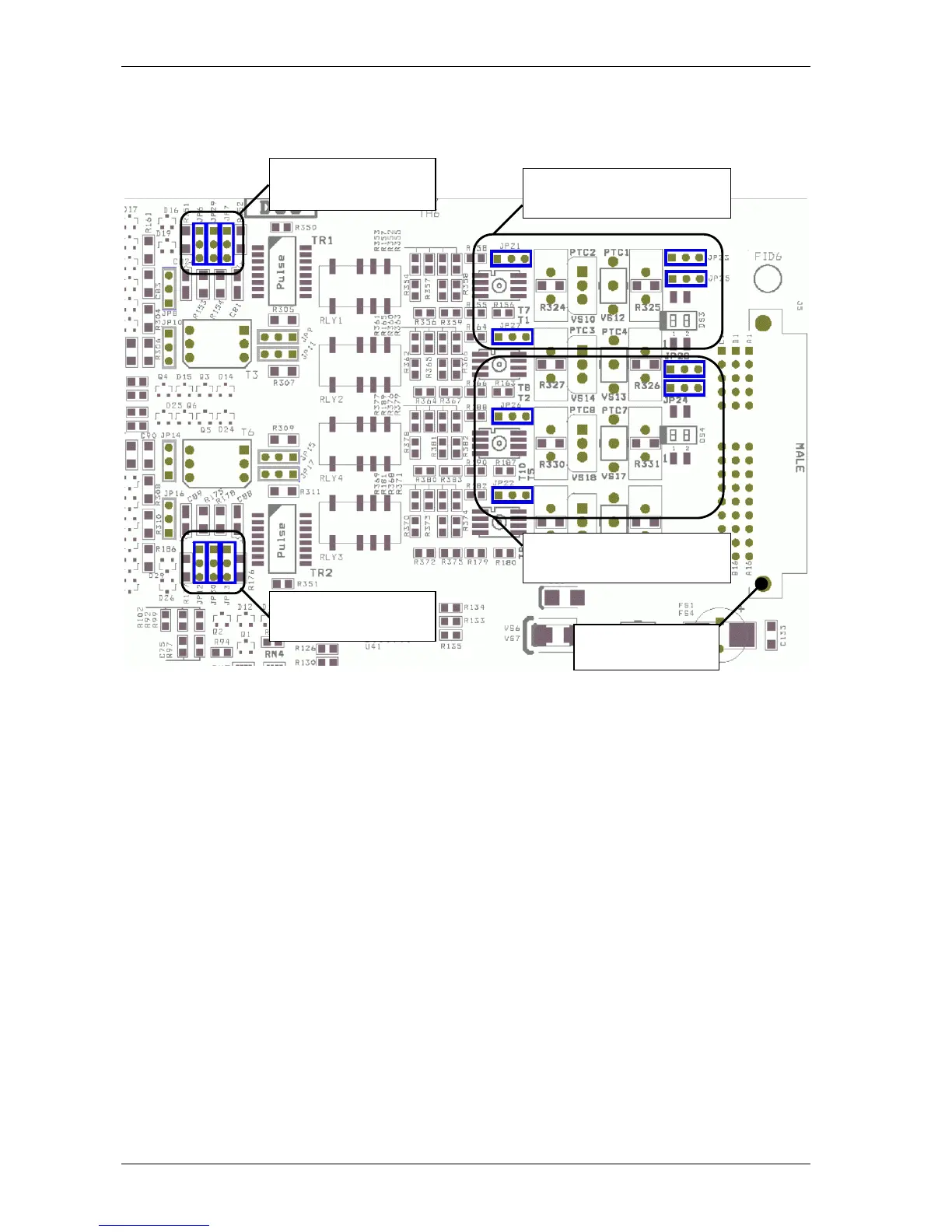

The figure below shows the position of the straps on the Crocus CNV CV motherboard.
strap JP21, JP23, JP25, JP27
(converter A)
strap JP12, JP13, JP30
(converter B)
strap JP6, JP7, JP29
(converter A)
middle connector
towards CN4
strap JP22, JP24, JP26, JP28
(converter B)
