• 112103 Footswitch in “Single Linear05” mode

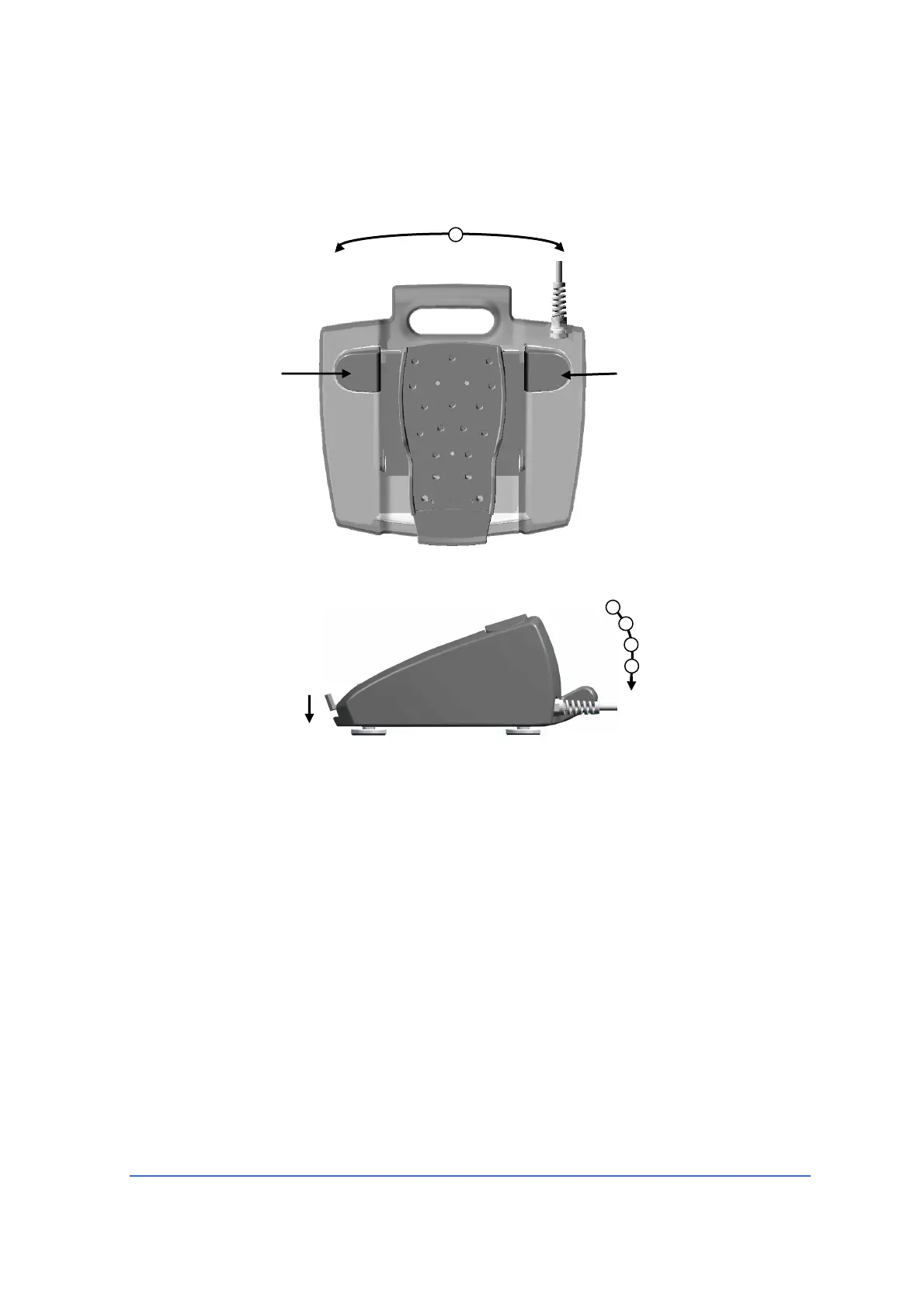

As shown in figure, the footswitch consists of a main paddle that can be moved
vertically and/or horizontally and two separate switches that activate
"CONTINUOUS IRRIGATION" and Operating mode change.
When the main paddle is slightly depressed, the "IRRIGATION" valve opens,
permitting fluid to enter the infusion set.
When the main paddle is depressed beyond detent #1, the selected pump is
activated, causing aspiration and irrigation to occur simultaneously. If linear
control mode for VACUUM (and/or flow, if in peristaltic mode) is selected on the
console, further depression of the paddle will increase aspiration level linearly.
When the main paddle is depressed beyond detent #1, the vitreous cutter is also
activated. If linear control mode for CUT RATE is selected on the console, further
depression of the paddle will increase the cutting rate. To disable cutting, rotate
the main paddle to the right; ASPIRATION and IRRIGATION still remain active. If
memory
1-2 or
1-2-3
U/S->I/A
Or
Vit->Diath
Cont.
Irrigation
Reflux
Stand by
Irrigation
Lin. Aspiration
Lin. U/S or Diath
only
Aspiration
