3.17. 13 Pin transfer board interface pin description

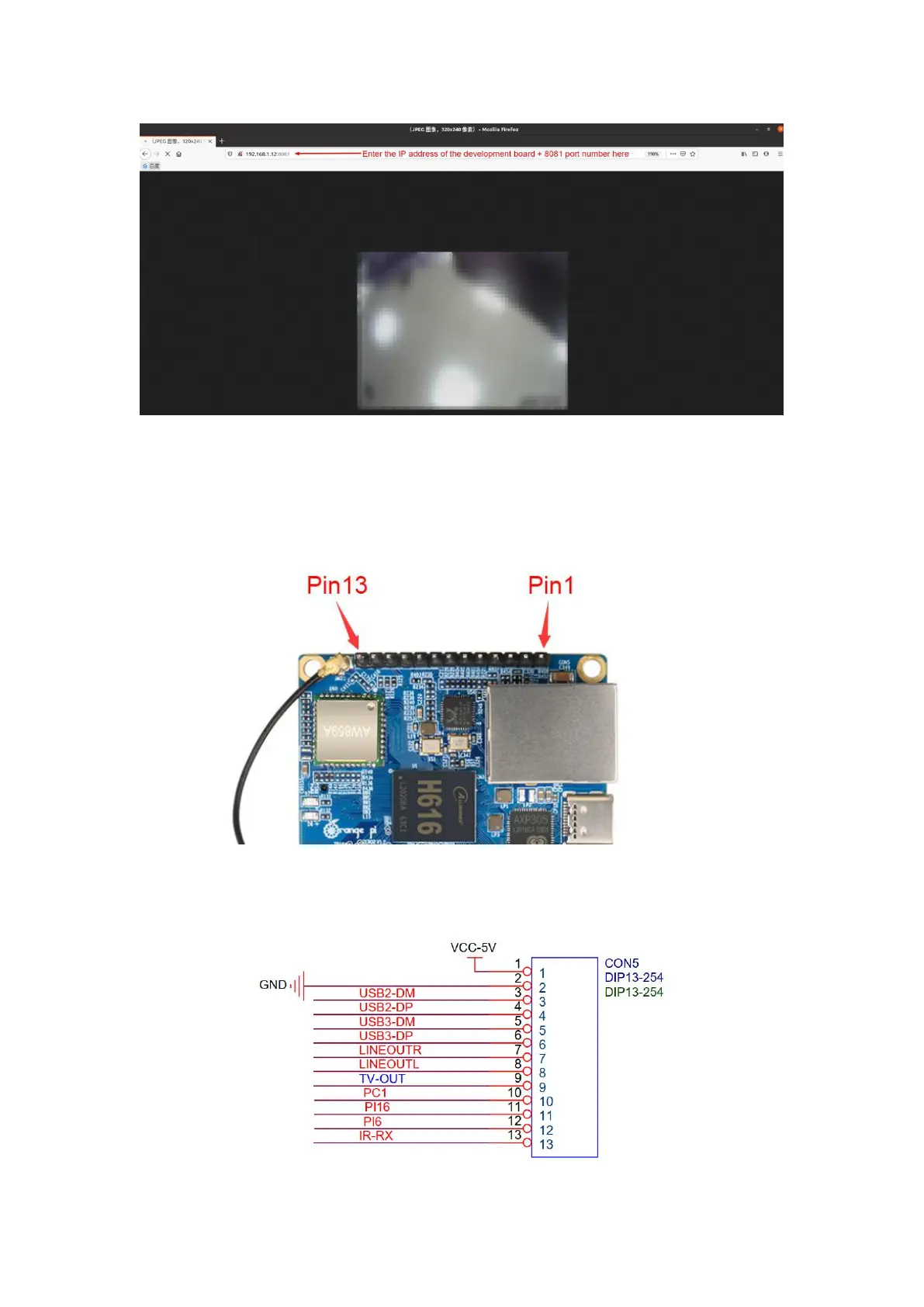

1) Please refer to the figure below for the sequence of the orange Pi Zero 2
development board 13 pin adapter board interface pins
2) The schematic diagram of the 13pin interface of the Orange Pi Zero 2 development
board is shown below
