Monitor
−159−
8 How to use
MEXE02
3. Click "Run."
Waveform measurement starts.
4. During measurement, click "Stop" to exit the waveform measurement.
If "SINGLE" is selected for Mode in Trigger, measurement automatically ends when the waveform drawing ends.
5. To exit the waveform monitor, unselect "Start Waveform monitor."
4.6 Test operation
Remote operation
A motor can be operated using the
MEXE02
. The motor operation can be checked before connecting to a host controller.
Also, the teaching function of the operation data can be performed in the position control mode. (Teaching, remote
operation)
Speed control mode
1. Start the "Remote operation" using either of the following methods.
Starting from the toolbar: Click the “Remote operation” icon
Starting from the shortcut button: Click “Remote operation
Or

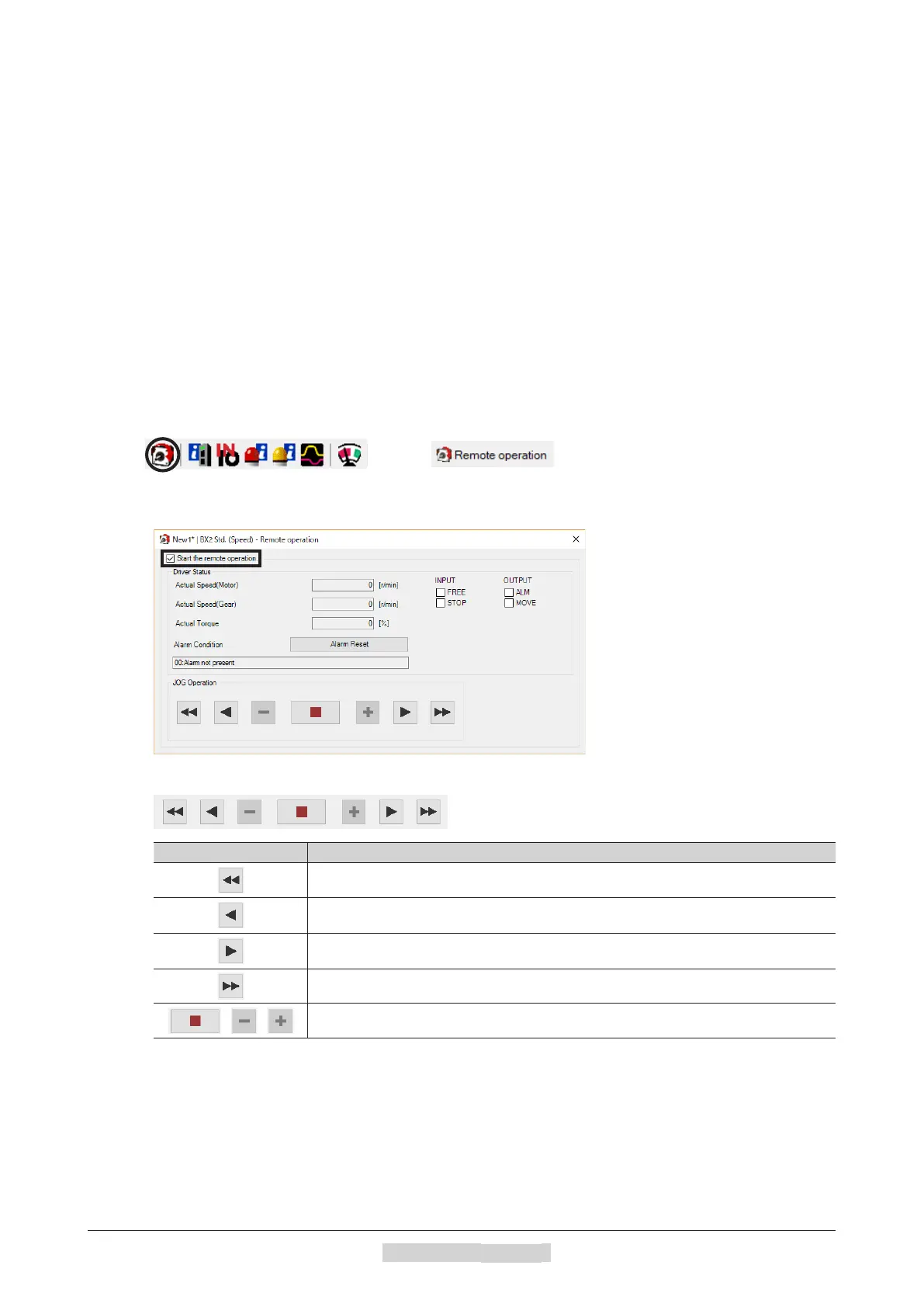

The window of the remote operation appears.
2. Click "Start the remote operation."
JOG operation
Type of button Description
Operates continuously in the negative direction at the JOG operating speed.
Operates continuously in the negative direction at the speed of one-tenth of the JOG operating
speed.
Operates continuously in the positive direction at the speed of one-tenth of the JOG operating
speed.
Operates continuously in the positive direction at the JOG operating speed.
Not used.
3. To end the operation, unselect "Start the remote operation."
