2 Installation and connection

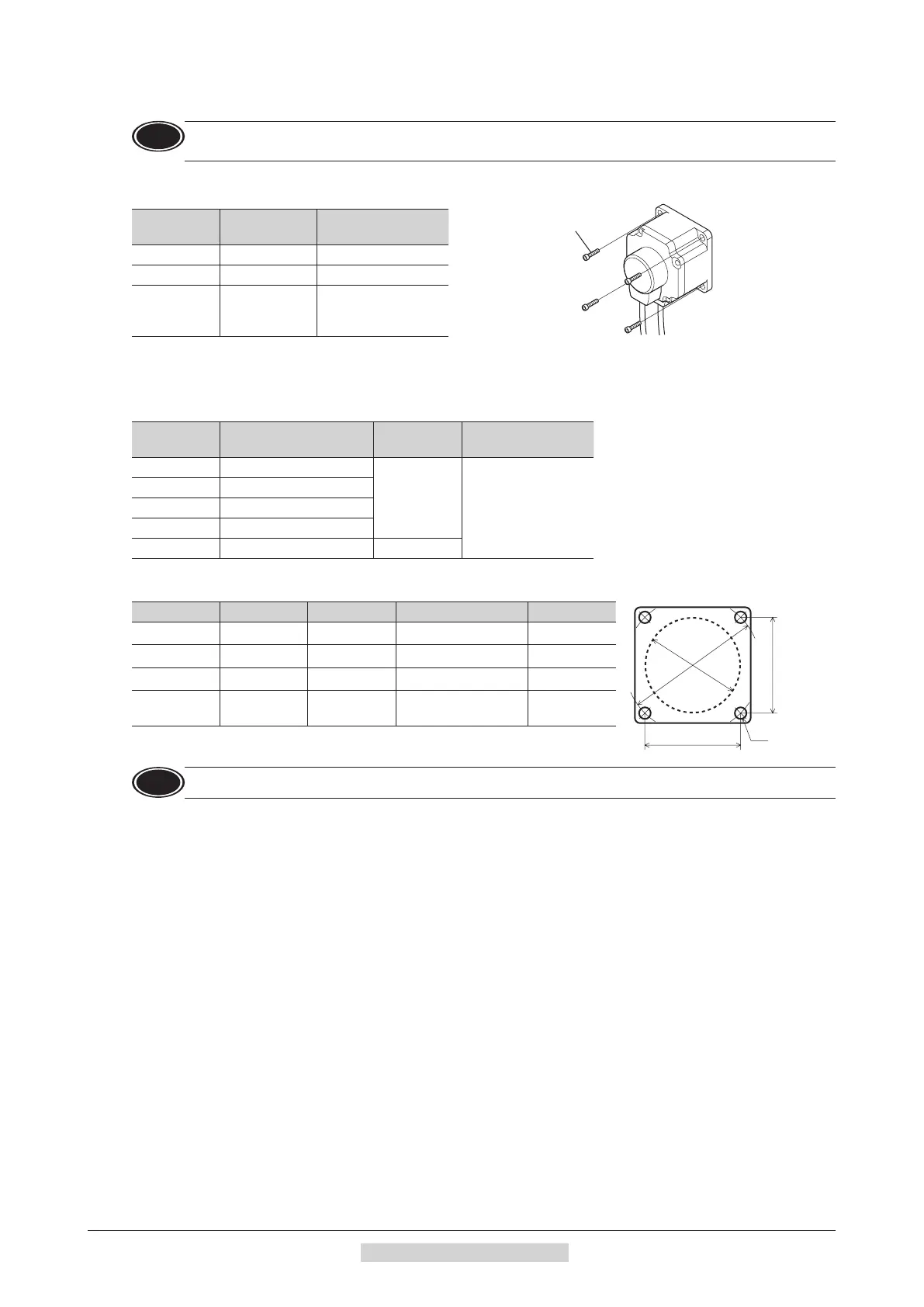

1.4 Installing the round shaft type
Note
Do not install the motor to the mounting hole diagonally or assemble the motor forcibly.
Doing so may cause damage to the ange pilot section, thereby resulting in damage to the motor.
Secure the product using hexagonal socket head screws (not included) through the four mounting holes.
Do not leave a gap between the product and mounting plate.
Hexagonal socket
head screw
Model Screw size
Tightening torque
[N·m (lb-in)]
BXM230
M4 1.8 (15.9)
BXM460
M6 6.4 (56)
BXM5120
BXM6200
BXM6400
M8 15.5 (137)

Mounting plate dimensions
Install the motor to a mounting plate equivalent to the following size so that the motor case temperature will not exceed
90 °C (194 °F).
Model
Size of mounting plate
[mm (in.)]
Thickness [mm
(in.)]
Material
BXM230
115×115 (4.53 x 4.53)
5 (0.20)
Aluminum alloy
BXM460
135×135 (5.31 x 5.31)
BXM5120
165×165 (6.50 x 6.50)
BXM6200
200×200 (7.87 x 7.87)
BXM6400
250×250 (9.84 x 9.84) 6 (0.24)

Mounting hole dimensions [Unit: mm (in.)]
Model ØA B ØCH7 ØD
ØCH7
B
B
ØA
ØD
BXM230
70 (2.76) 49.5 (1.949) 54
+0.030
0
(2.1260
+0.0012
0
) 4.5 (0.177)
BXM460
94 (3.70) 66.47 (2.616) 73
+0.030
0
(2.8740
+0.0012
0
) 6.5 (0.256)
BXM5120
104 (4.09) 73.54 (2.895) 83
+0.035
0
(3.2677
+0.0014
0
) 8.5 (0.335)
BXM6200
BXM6400
120 (4.72) 84.85 (3.341) 94
+0.035
0
(3.7008
+0.0014
0
) 8.5 (0.335)
ØC indicates the pilot diameter on the ange.
Note
Fit the pilot on the motor mounting surface into a ange pilot.
