Explanation of the function mode (Position control mode)
−75−
3 How to use the operation panel

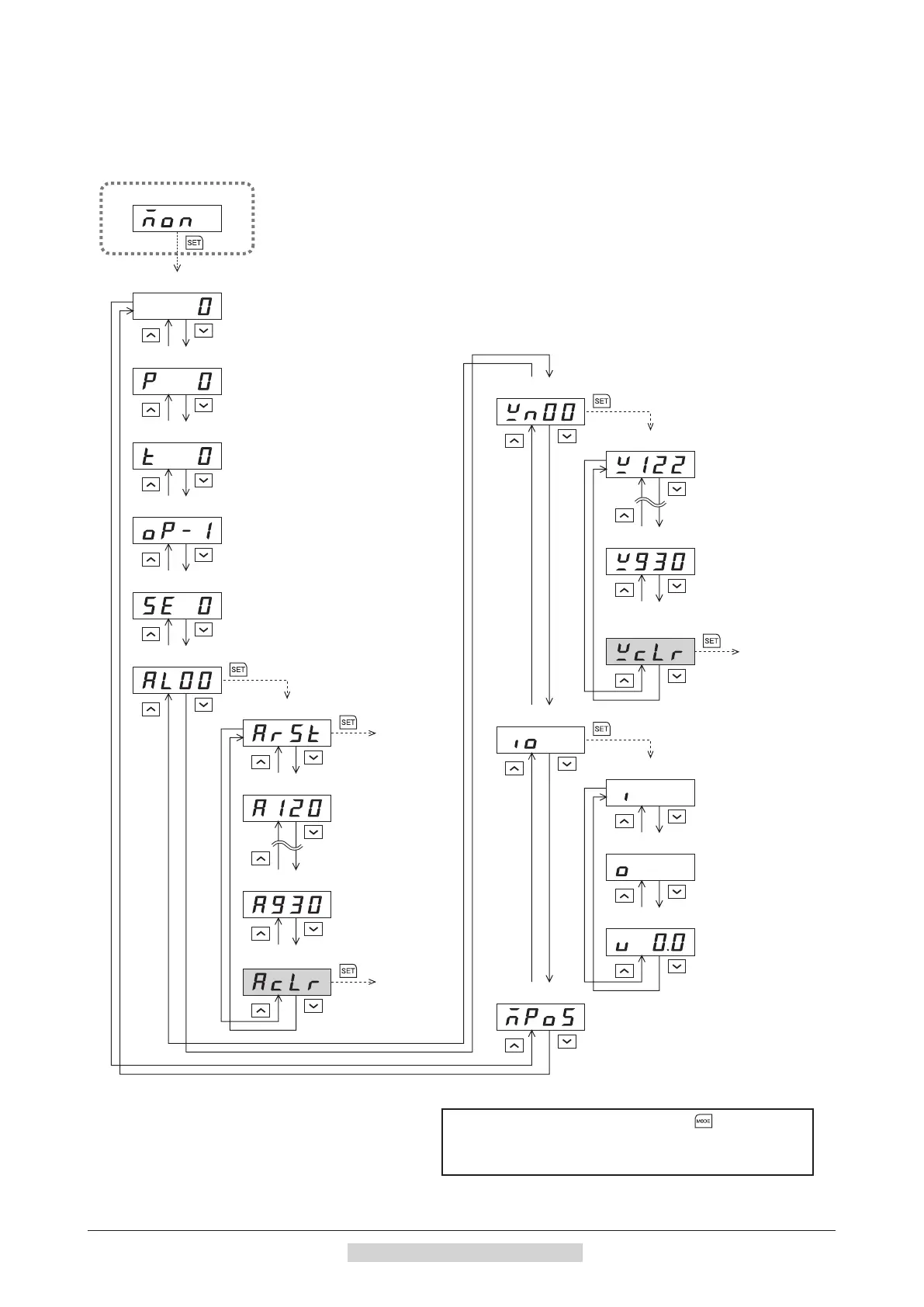

3.2 Monitor mode
This is a mode to be displayed when the power supply is turned on. The motor rotation speed is displayed at the factory
setting.
Use the monitor mode when operating the motor.
Speed
Operation data number
Selection number
Load factor
Last three digits of the present position
Warning
I/O monitor
Control mode
Top screen of monitor mode
Input monitor
Output monitor
External voltage monitor
Warning history 1 (latest)
Warning history 9 (oldest)
Clear warning
history
Alarm
Alarm history 1 (latest)
Alarm history 9 (oldest)
Example: Overload
(Alarm code 30)
Example: Overcurrent
(Alarm code 20)
Example: Overload
(Warning code 30)
Example: Overvoltage
(Warning code 22)
Alarm reset
Clear alarm history
Execute (blink
ing)
Execute
(blinking)
Execute
(blinking)
• When operations are limited by the edit lock function, the screens in
gray color are not displayed.
• In the lower level except the top screen, press key to return to
the previous level.
