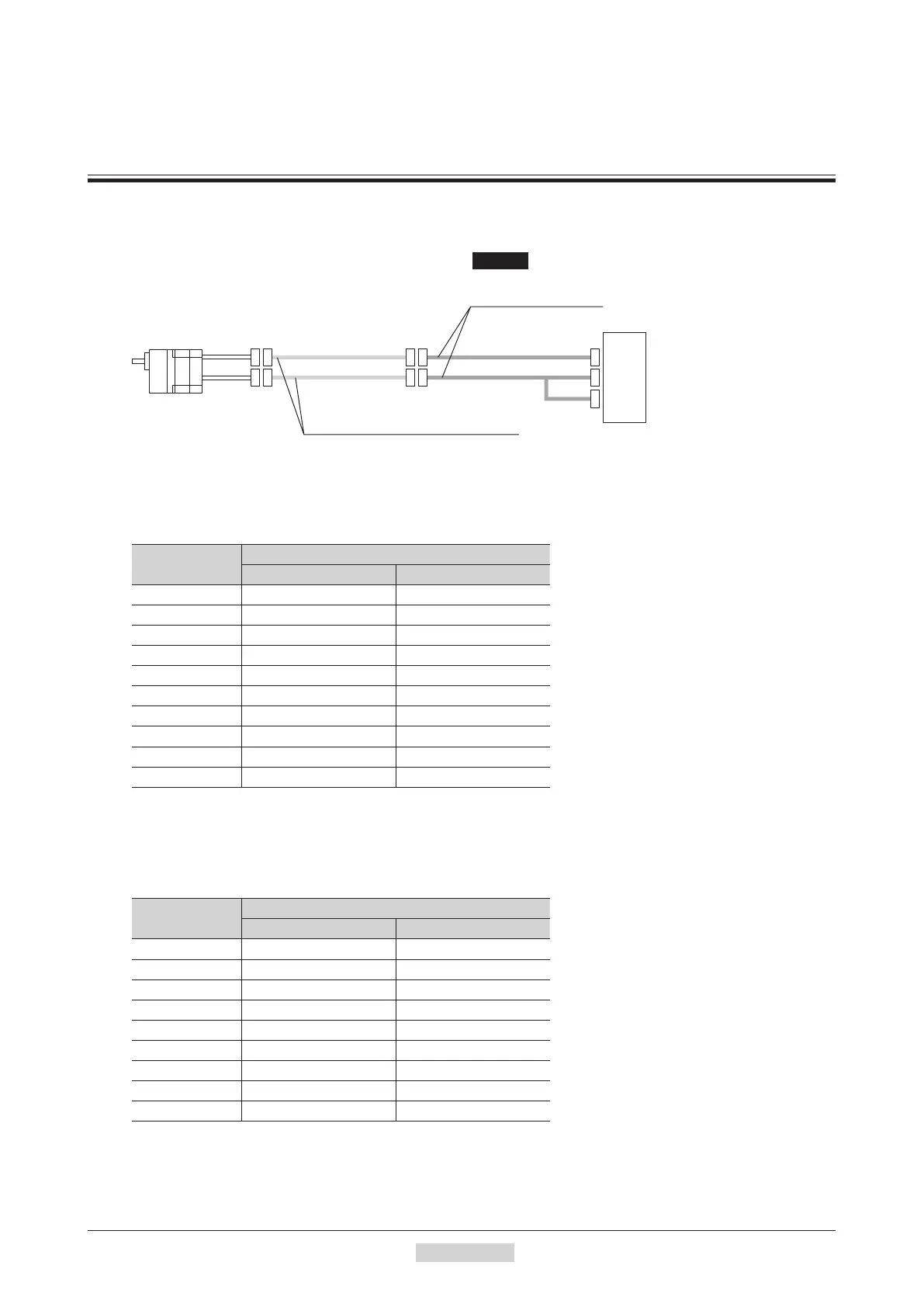

10 Appendix
4 Cable and peripheral equipment
(sold separately)

Cable
Driver
Motor
Connection cable or
exible connection cable
Required
Connection cable (for extension) or
exible connection cable (for extension)
•
Connection cable
To connect a motor and a driver, always use the dedicated connection cable.
Both connection cables and exible connection cables are a set of two cables consisting a cable for motor and a cable for
encoder.
Length
Model
Connection cable Flexible connection cable
0.3 m (1.0 ft.)
CC003SBF2
−
1.3 m (4.3 ft.)
CC013SBF2 CC013SBR2
2.3 m (7.5 ft.)
CC023SBF2 CC023SBR2
3.3 m (10.8 ft.)
CC033SBF2 CC033SBR2
5.3 m (17.4 ft.)
CC053SBF2 CC053SBR2
7.3 m (24.0 ft.)
CC073SBF2 CC073SBR2
10.3 m (33.8 ft.)
CC103SBF2 CC103SBR2
15.3 m (50.2 ft.)
CC153SBF2 CC153SBR2
20.3 m (66.6 ft.)
CC203SBF2 CC203SBR2
30.3 m (99.4 ft.)
CC303SBF2 CC303SBR2
•
Connection cable (for extension)
This cable is used to extend the wiring distance between the motor and the driver. The wiring distance can be extended
to a maximum of 30.3 m (99.4 ft.).
Both connection cables and exible connection cables are a set of two cables consisting a cable for motor and a cable for
encoder.
Length
Model
Connection cable Flexible connection cable
1 m (3.3 ft.)
CC01SBF CC01SBR
2 m (6.6 ft.)
CC02SBF CC02SBR
3 m (9.8 ft.)
CC03SBF CC03SBR
5 m (16.4 ft.)
CC05SBF CC05SBR
7 m (23.0 ft.)
CC07SBF CC07SBR
10 m (32.8 ft.)
CC10SBF CC10SBR
15 m (49.2 ft.)
CC15SBF CC15SBR
20 m (65.6 ft.)
CC20SBF CC20SBR
30 m (98.4 ft.)
CC30SBF CC30SBR
