Explanation of the function mode (Position control mode)
−78−
3 How to use the operation panel

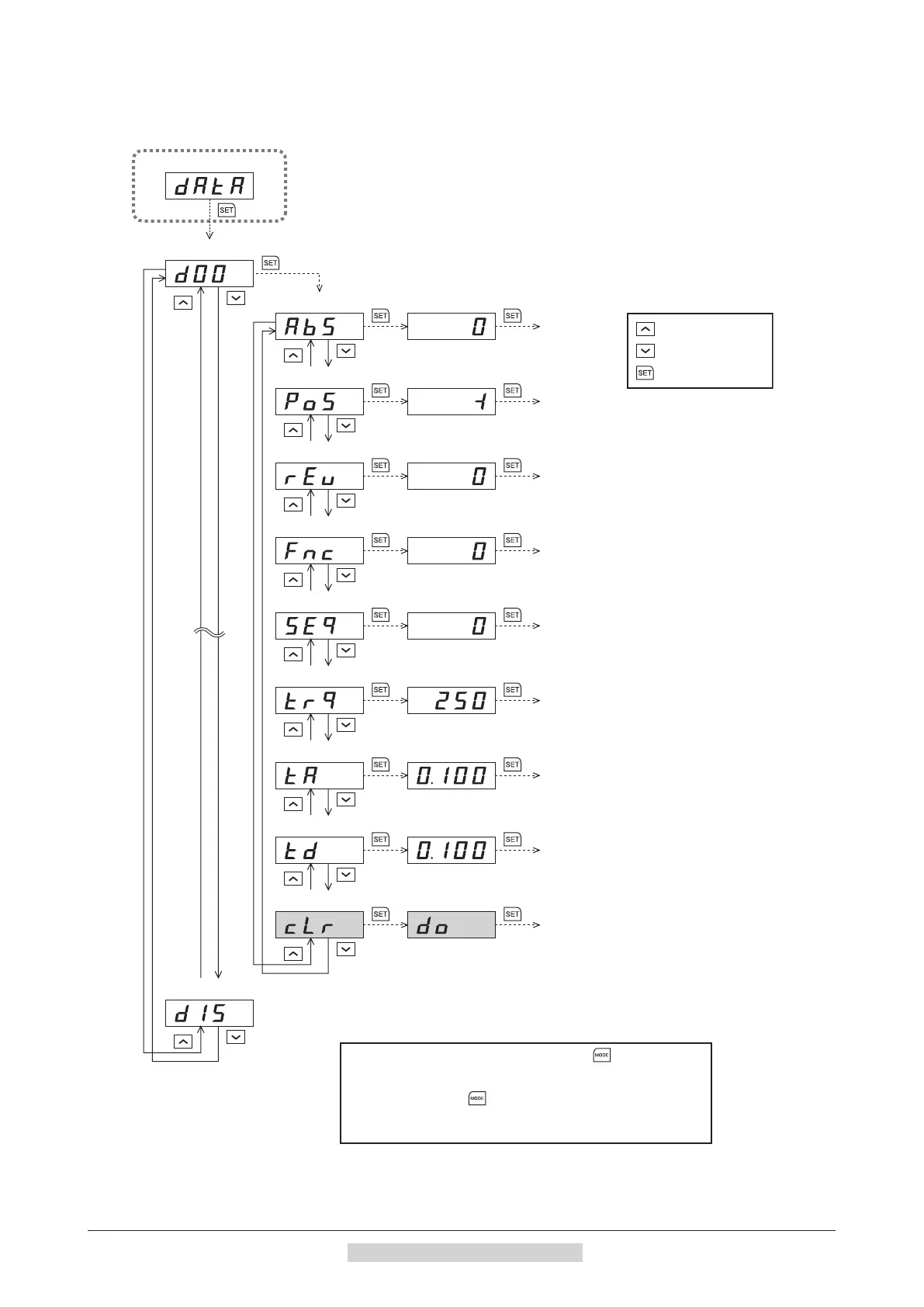

3.3 Data mode
This mode is used to set the operation data.
Data No.0
Top screen of data mode
Data No.15
Torque limit
Acceleration time
Deceleration time
Operation mode
Data clear
Execute (blinking)
Determine (blinking)
Determine (blinking)
Determine (blinking)
Determine
(blinking)
Setting (blinking)
Setting of the rotation
direction (blinking)
Setting (blinking)
Setting (blinking)
Setting (blinking)
Setting (blinking)
Setting (blinking)
Setting (blinking)
Position
Setting of the traveling amount
Operating speed
Determine (blinking)
Operation function
Determine (blinking)
Sets the dwell time when selecting
the linked-motion operation 2.
Sequential positioning
Determine (blinking)
How to change the value
Decrease the value
Increase the value
Determine the value
• When operations are limited by the edit lock function, the screens in
gray color are not displayed.
• In the lower level except the top screen, press key to return to
the previous level.
However, when inputting the traveling amount of the "position," it
will not return even if is pressed.
