TOOLING OPTIONS AND INSTALLATION
ROLLING BASKET ASSEMBLY
An optional rolling basket assembly is available to complement the 1tRIPr® row unit. Roll-
ing baskets reduce clod size, retain existing soil moisture, firm, and complete the optimum
seedbed. The rolling basket is mounted to the rear of the row unit tail section.

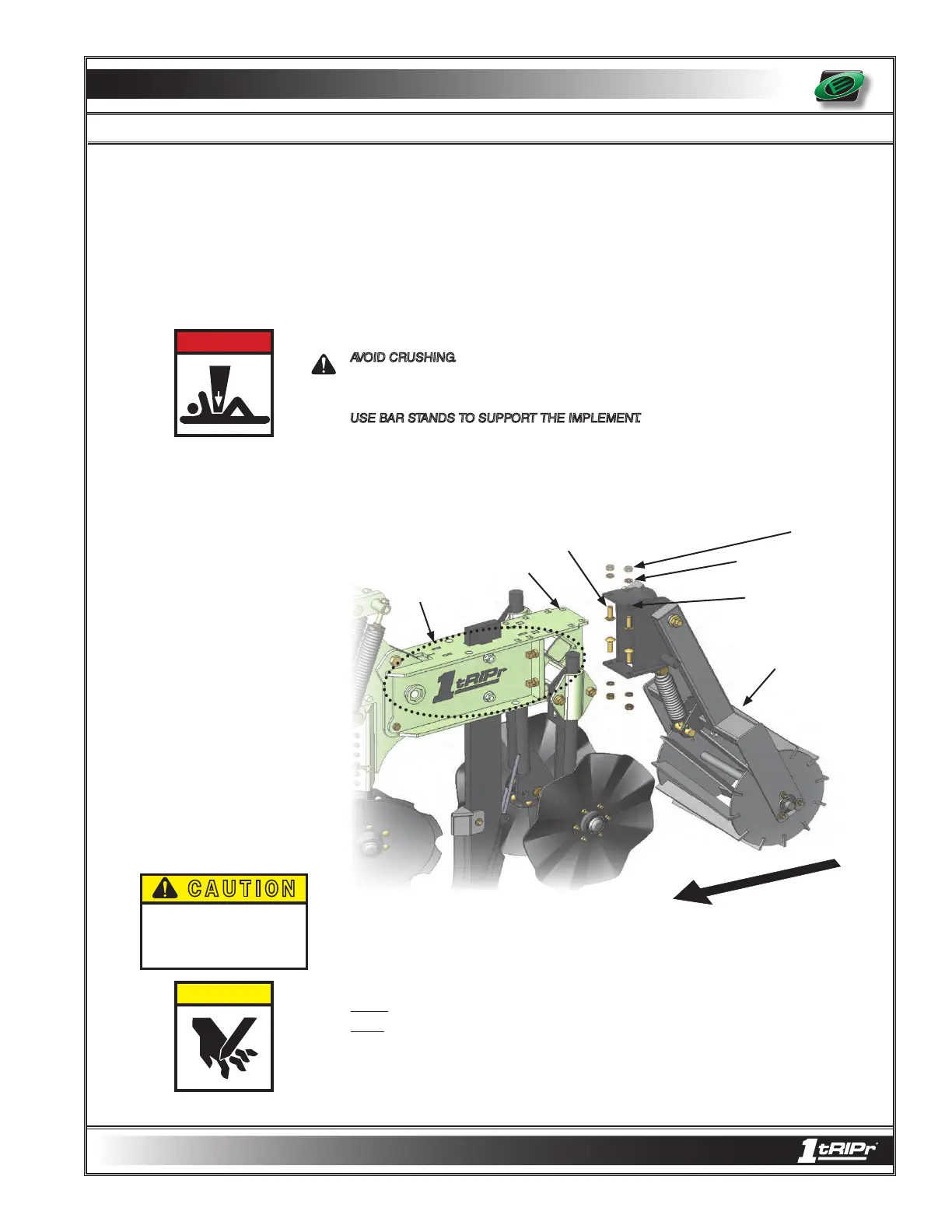

INSTALLATION OF ROLLING
BASKET ASSEMBLY
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
personal injury or death, as well as implement damage. Securely support all implement
components that must be raised. Remove buildup of grease, oil, or debris prior to
installing the rolling basket.
Carriage Mounting
Bolt (4)
Rolling Basket
Assembly
Nut (4)
Lock Washer (4)
Tail Section Bolt Holes (4)
Rolling Basket
Bolt Hole (4)
Tail Section
1. Align tail section and rolling basket bolt holes.
2. Mount rolling basket assembly to tail section with carriage mounting bolts, lock
washers, and nuts.
3. Tighten all hardware to proper torque specifications. (pg. 8 - 4)
NOTE: Recommended tools: 3/4” socket or end wrench.
NOTE: Due to clearance issues, rolling baskets cannot be used in conjunction with
certain planter attachment packages. A lift assist wheel extension package is available to
utilize rolling baskets and lift assist wheels simultaneously. Contact your Orthman dealer
for lift assist wheel extension package information to alleviate clearance issues. For
basket down pressure adjustment, see page 5-10.
D A N G E R
DIRECTION OF TRAVEL
C A U T I O N
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045
4 - 1
