Made in the U.S.A.
FIELD SETTINGS

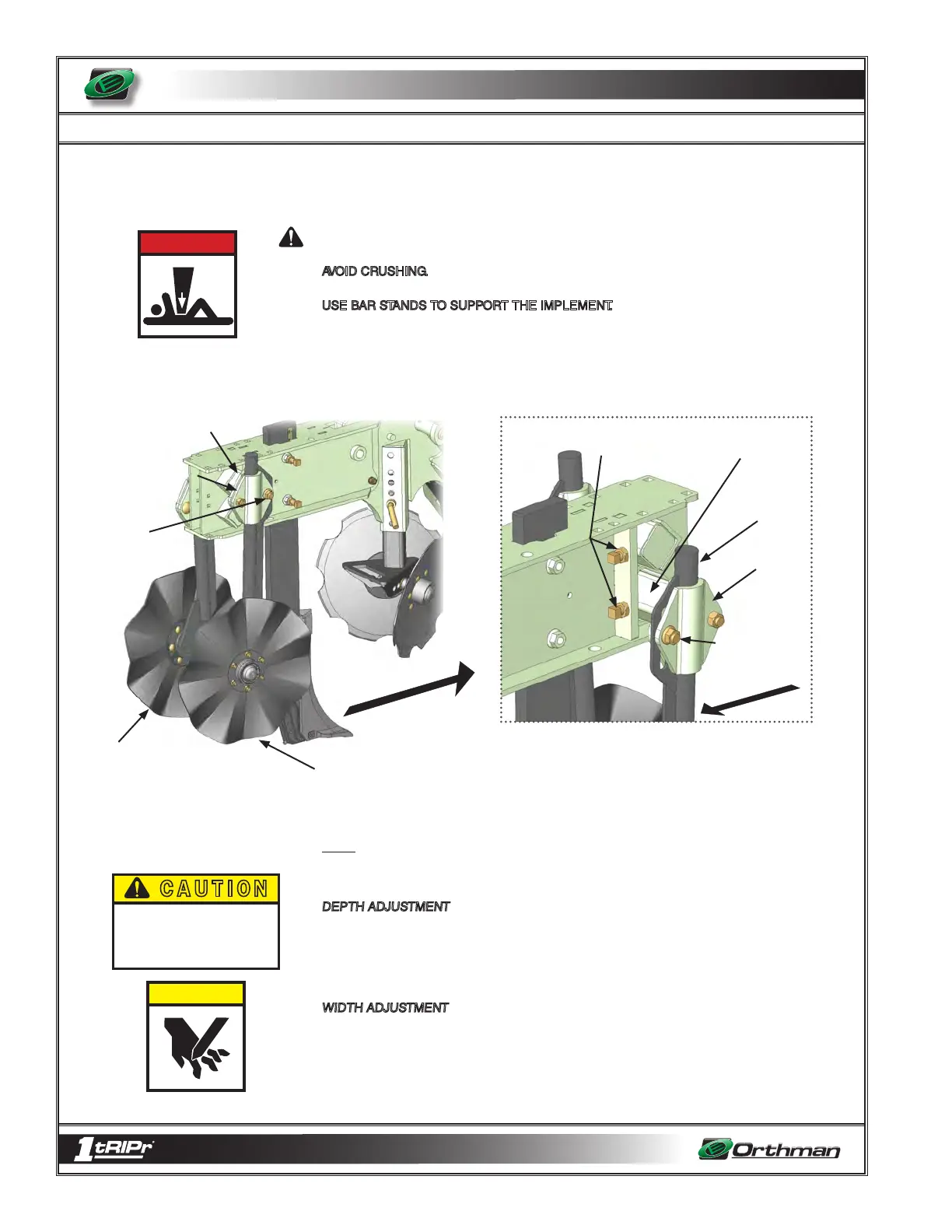

WAVY COULTER ASSEMBLY
DEPTH AND WIDTH
Wavy coulter assemblies provide “lift and pinch” action to incorporate field residue, till, and
firm the seedbed.
AVOID CRUSHING.
Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT.
Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
injury or death, as well as implement damage. Securely support all implement components
that must be raised. Remove buildup of grease, oil, or debris prior to adjusting wavy coulter
assembly.
NOTE: Recommended tools: Jam Nut and Front Flange Nut - 15/16 end wrench, Set
Bolt - 5/8 eight point socket, (3/4 end wrench will substitute for the 5/8 eight point socket,
although not recommended)
DEPTH ADJUSTMENT
1. Physically support the weight of the wavy coulter assembly.
2. Slightly loosen shank clamp front flange nut.
3. Vertically adjust wavy coulter assembly to desired depth.
4. Tighten front flange nut to torque specifications.
(pg. 8 - 4)
WIDTH ADJUSTMENT
1. Slightly loosen left hand and right hand jam nuts and set bolts.
2. Laterally adjust wavy coulter assemblies and diamond cross tubes to desired width.
3. Tighten left hand and right hand set bolts and jam nuts.
4. Tighten all hardware to proper torque specifications.
(pg. 8 - 4)
D A N G E R
C A U T I O N
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045
Diamond
Cross Tube
Shank
Front Flange
Nut
DIRECTION OF TRAVEL
Set Bolts and
Jam Nuts
RIght Hand Wavy
Coulter Assembly
Left Hand Wavy
Coulter Assembly
Diamond Cross
Tube
Shank Clamp
Front
Flange Nut
DIRECTION OF TRAVEL
5 - 8
Clamp
