Orthman 1tRIPr - Depth Band Coulter Assembly

Made in the U.S.A.

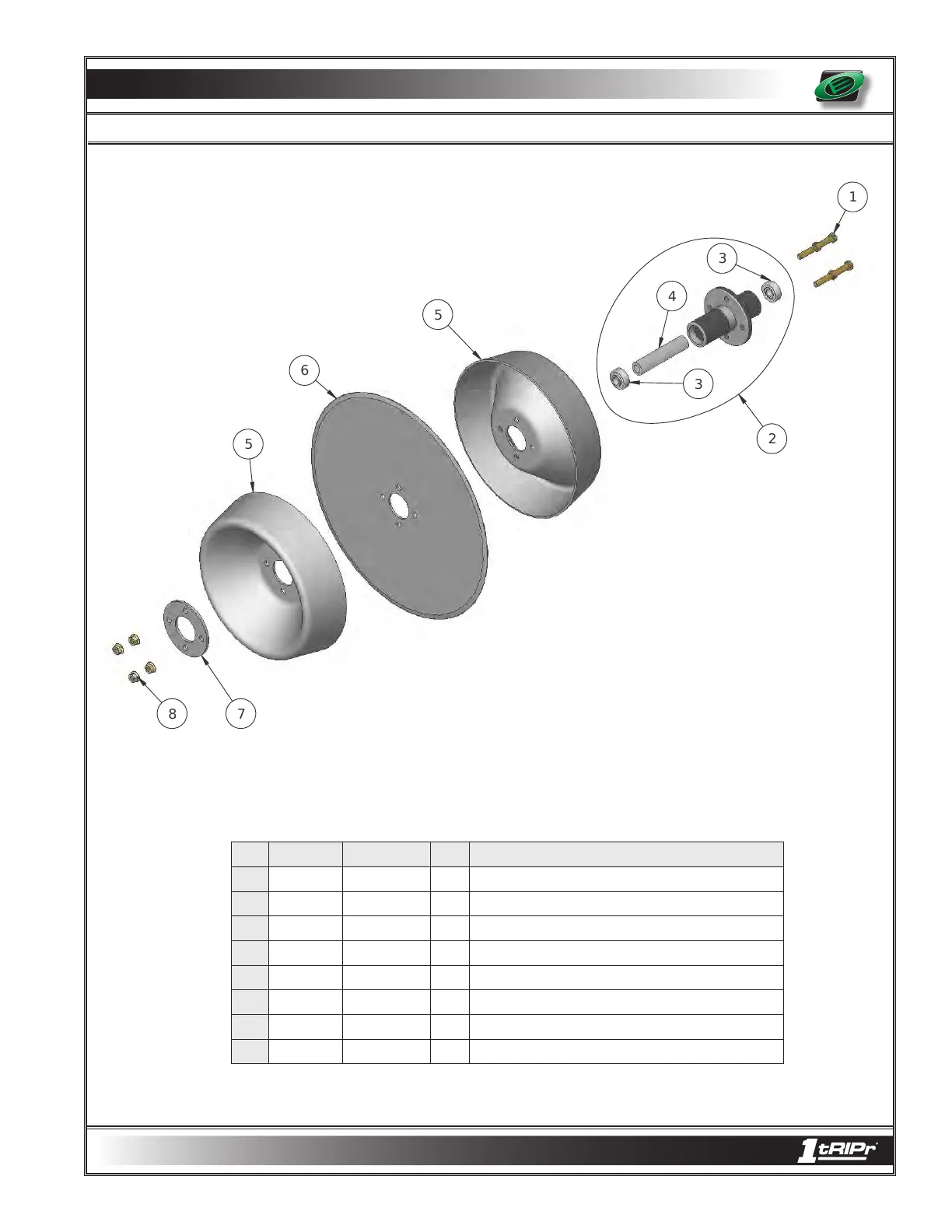

PARTS IDENTIFICATION
1
3
4
3
5
6
5
78
2
DEPTH BAND COULTER ASSEMBLY
Key Part # Description Qty. Notes
1 100-118 Bolt 4 1/2” x 2”, Grade 5
2 385-950 Hub assembly 1 4 bolt, 3/4 bolt hub Includes items # 3 and 4
3 120-041 Bearing 2 3/4” ID x 1.8505 OD bearing
4 385-945 Spacer 1 1 1/4 OD x .813 ID x 5.768 long
5 385-167 Depth band 2 15 1/4” Diameter, conical
6 166-033 Disc 1 22” Smooth
7 312-131 Plate 1 Depth band reinforcing plate
8 102-119 Lock nut 4 1/2”, Smooth ange
385-943 Assembly
